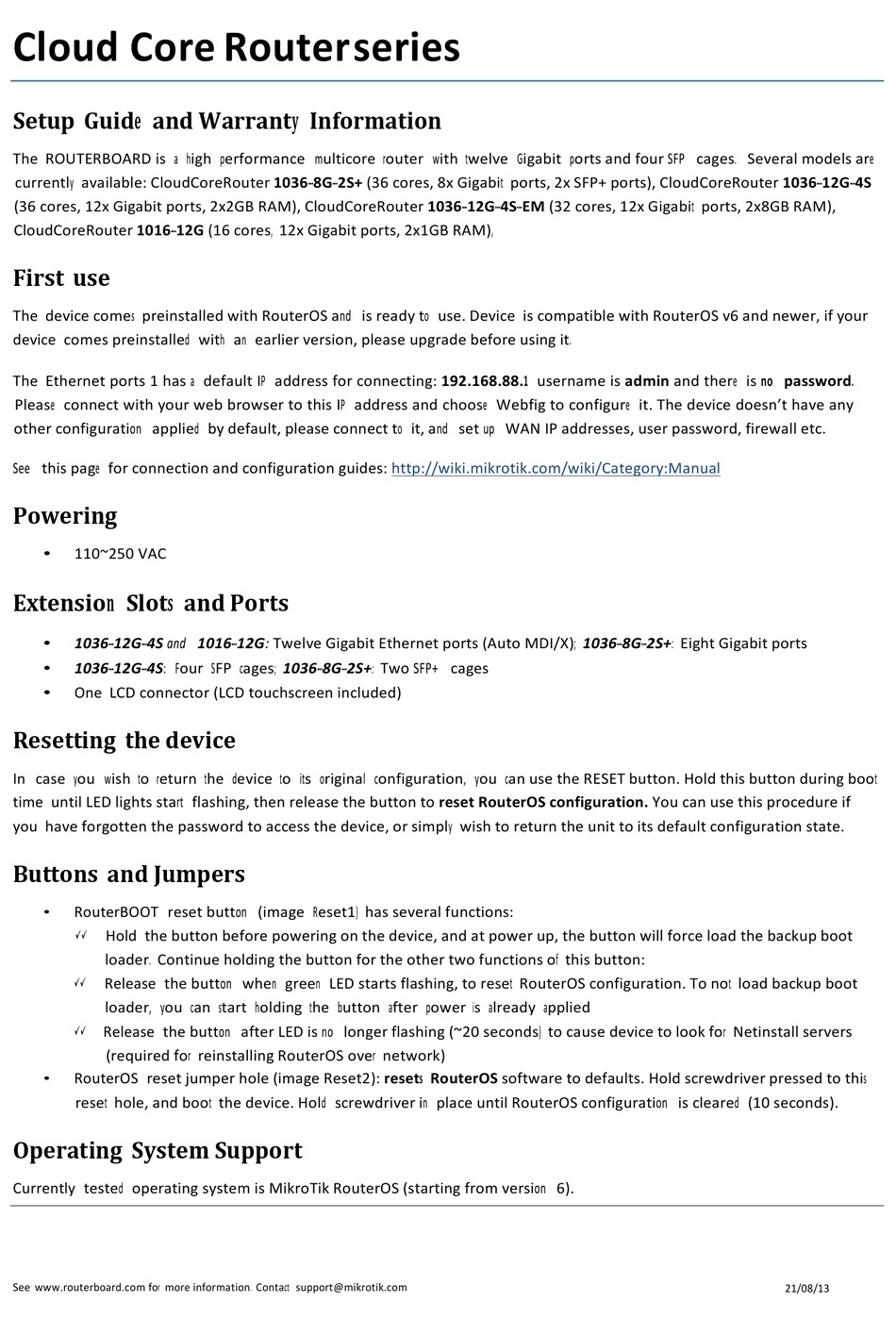

RouterBOARD Cloud Core Series Setup Manual

Cloud Core Router series
Setup Guide and Warranty Information
The ROUTERBOARD is a high performance multicore router with twelve Gigabit ports and four SFP cages. Several models are
currently available: CloudCoreRouter 1036--‐8G--‐2S+ (36 cores, 8x Gigabit ports, 2x SFP+ ports), CloudCoreRouter 1036--‐12G--‐4S
(36 cores, 12x Gigabit ports, 2x2GB RAM), CloudCoreRouter 1036--‐12G--‐4S--‐EM (32 cores, 12x Gigabit ports, 2x8GB RAM),
CloudCoreRouter 1016--‐12G (16 cores, 12x Gigabit ports, 2x1GB RAM),

First use

The device comes preinstalled with RouterOS and is ready to use. Device is compatible with RouterOS v6 and newer, if your
device comes preinstalled with an earlier version, please upgrade before using it.
The Ethernet ports 1 has a default IP address for connecting: 192.168.88.1 username is admin and there is no password.
Please connect with your web browser to this IP address and choose Webfig to configure it. The device doesn't have any
other configuration applied by default, please connect to it, and set up WAN IP addresses, user password, firewall etc.
See this page for connection and configuration guides:

Powering

•
110~250 VAC

Extension Slots and Ports

•
1036--‐12G--‐4S and 1016--‐12G: Twelve Gigabit Ethernet ports (Auto MDI/X); 1036--‐8G--‐2S+: Eight Gigabit ports
•
1036--‐12G--‐4S: Four SFP cages; 1036--‐8G--‐2S+: Two SFP+ cages
•
One LCD connector (LCD touchscreen included)

Resetting the device

In case you wish to return the device to its original configuration, you can use the RESET button. Hold this button during boot
time until LED lights start flashing, then release the button to reset RouterOS configuration. You can use this procedure if
you have forgotten the password to access the device, or simply wish to return the unit to its default configuration state.

Buttons and Jumpers

•
RouterBOOT reset button (image Reset1) has several functions:

Hold the button before powering on the device, and at power up, the button will force load the backup boot
loader. Continue holding the button for the other two functions of this button:

Release the button when green LED starts flashing, to reset RouterOS configuration. To not load backup boot
loader, you can start holding the button after power is already applied

Release the button after LED is no longer flashing (~20 seconds) to cause device to look for Netinstall servers
(required for reinstalling RouterOS over network)
•
RouterOS reset jumper hole (image Reset2): resets RouterOS software to defaults. Hold screwdriver pressed to this
reset hole, and boot the device. Hold screwdriver in place until RouterOS configuration is cleared (10 seconds).

Operating System Support

Currently tested operating system is MikroTik RouterOS (starting from version 6).
See www.routerboard.com for more information. Contact support@mikrotik.com
http://wiki.mikrotik.com/wiki/Category:Manual
21/08/13
