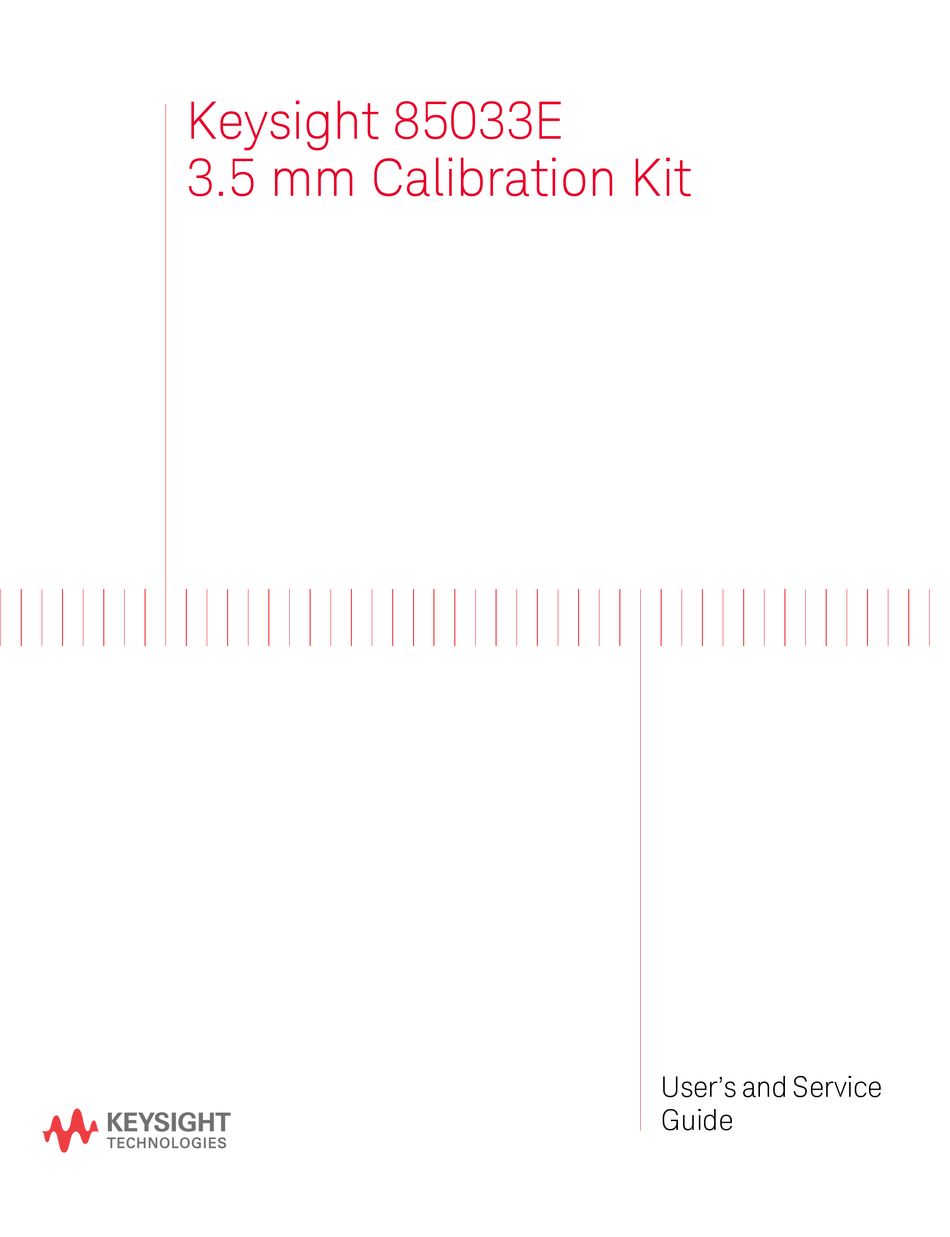

  • Page 1 Keysight 85033E  3.5 mm Calibration Kit User’s and Service Guide...
  • Page 3 User’s and Service Guide Keysight Technologies 85033E 3.5 mm Calibration Kit Keysight Part Number: 85033-90028 Printed in USA Print Date: August 2010 Supersedes: April 2010 Copyright © 2000–2002, 2004, 2008-2010 Keysight Technologies. All rights reserved.
  • Page 4 Printing Copies of Documentation from the Web To print copies of documentation from the Web, download the PDF file from the Keysight web site: • Go to www.keysight.com. • Enter the product model number in the Search function and click Search.

  • Page 5: Table Of Contents

    Introduction................4-2 85033E...
  • Page 6 How Keysight Verifies the Devices in This Kit ....... . .

  • Page 7: General Information

    General Information 85033E...

  • Page 8: Calibration Kit Overview

    General Information Calibration Kit Overview Calibration Kit Overview The Keysight 85033E 3.5 mm calibration kit is used to calibrate Keysight network analyzers for measurements of components with 3.5 mm connectors up to 9 GHz. Kit Contents Use the Contents List in the shipping container to verify the completeness of your shipment. Although this list is the most accurate, you can also use the illustration in Chapter 7 to verify the items in your shipment.

  • Page 9: Calibration Definitions

    • downloaded from the Web at http:na.support.keysight.com/pna/caldefs/stddefs.html • manually entered from the front panel Refer to your network analyzer user’s guide or embedded Help for instructions on manually entering calibration definitions, selecting the calibration kit, and performing a calibration. 85033E...

  • Page 10: Options

    General Information Calibration Kit Overview Options There are several adapter options available for the 85033E. Refer to Table 6-2 on page 6-5. Also, there are calibration certificate options available. Contact Keysight for more information. See “Contacting Keysight” on page 5-4 for contact information.

  • Page 11: Incoming Inspection

    5-4. Keysight will arrange for repair or replacement of incomplete or damaged shipments without waiting for a settlement from the transportation company. When you send the kit or device to Keysight, include a service tag (found near the end of this manual) with the following information: •...

  • Page 12: Recording The Device Serial Numbers

    The adapters included in the kit are for measurement convenience only and are not serialized. Table 1-1 Kit and Device Serial Number Record Device Serial Number Calibration kit _______________________________ -m- Broadband Load _______________________________ -f- Broadband Load _______________________________ -m- Open _______________________________ -f- Open _______________________________ -m- Short _______________________________ -f- Short _______________________________ 85033E...

  • Page 13: Precision Slotless Connectors

    With PSCs on test ports and standards, the percentage of accuracy achieved when measuring at 50 dB return loss levels is comparable to using conventional slotted connectors measuring devices having only 30 dB return loss. This represents an accuracy improvement of about 10 times. 85033E...

  • Page 14: Clarifying The Terminology Of A Connector Interface

    Improper connections, resulting from pin depth values being out of the observed limits (see Table 2-3 on page 2-4) or from bad connection techniques, can also damage these devices. 85033E...

  • Page 15: When To Calibrate

    Periodically remeasure the device and note any changes in its corrected response which can be attributed to the test system. With experience you will be able to see changes in the reference responses that indicate a need to perform the measurement calibration again. 85033E...
  • Page 16 General Information When to Calibrate 1-10 85033E...

  • Page 17: Specifications

    Specifications 85033E...

  • Page 18: Environmental Requirements

    During a measurement calibration, the temperature of the calibration devices must be stable and within the range shown in  Table 2-1. IMPORTANT Avoid unnecessary handling of the devices during calibration because your fingers are a heat source. 85033E...

  • Page 19: Mechanical Characteristics

    They are, however, important supplemental characteristics related to electrical performance. Keysight Technologies verifies the mechanical characteristics of the devices in this kit with special gaging processes and electrical testing. This ensures that the device connectors do not exhibit any center conductor protrusion or improper pin depth when the kit leaves the factory.
  • Page 20 Approximately +2 sigma to 2 sigma of gage uncertainty based on studies done at the factory according to recommended procedures. b. Observed pin depth limits are the range of observation limits seen on the gage reading due to measurement uncertainty. The depth could still be within specifications. 85033E...

  • Page 21: Electrical Specifications

    Specifications Electrical Specifications Electrical Specifications The electrical specifications in Table 2-4 apply to the devices in your calibration kit when connected with a Keysight precision interface. Table 2-4 Electrical Specifications for 3.5 mm Devices Device Specification Frequency (GHz) Broadband Loads Return Loss 46dB0.005)

  • Page 22: Supplemental Characteristics

    DC to 18 Certification Keysight Technologies certifies that this product met its published specifications at the time of shipment from the factory. Keysight further certifies that its calibration measurements are traceable to the United States National Institute of Standards and Technology (NIST) to the extent allowed by the Institute's calibration facility, and to the calibration facilities of other International Standards Organization members.

  • Page 23: Use, Maintenance, And Care Of The Devices

    Use, Maintenance, and Care of the Devices 85033E...

  • Page 24: Electrostatic Discharge

    3. Connect the other end of the cable to the test port. 4. Remove the short from the cable. Refer to Chapter 6, “Replaceable Parts,” for part numbers and instructions for ordering ESD protection devices. Figure 3-1 ESD Protection Setup 85033E...

  • Page 25: Visual Inspection

    Other small defects and cosmetic imperfections are also normal. None of these affect electrical or mechanical performance. If a connector shows deep scratches or dents, particles clinging to the mating plane surfaces, or uneven wear, clean and inspect it again. 85033E...

  • Page 26: Inspect Female Connectors

    These can be bent or broken, and damage to them is not always easy to see. A connector with damaged contact fingers will not make good electrical contact and must be replaced. NOTE This is particularly important when you are mating nonprecision to precision devices. 85033E...

  • Page 27: Cleaning Connectors

    It may be harmful if absorbed through the skin. Keep away from heat, sparks, and flame. Wash thoroughly after handling. In case of spill, soak up with sand or earth. Flush spill area with water. Dispose of isopropyl alcohol in accordance with all applicable federal, state, and local environmental regulations. 85033E...
  • Page 28 Let the alcohol evaporate, then blow the threads dry with a gentle stream of clean, low-pressure compressed air or nitrogen. Always completely dry a connector before you reassemble or use it. 4. Inspect Each Connector Inspect the connector again to make sure that no particles or residue are present. 85033E...

  • Page 29: Gaging Connectors

    Use, Maintenance, and Care of the Devices Gaging Connectors Gaging Connectors The gages available from Keysight Technologies (see Table 6-3 on page 6-5 for part number information) are intended for preventive maintenance and troubleshooting purposes only. They are effective in detecting excessive center conductor protrusion or recession, and conductor damage on DUTs, test accessories, and the calibration kit devices.Do not use the gages for precise pin depth measurements.

  • Page 30: When To Gage Connectors

    Use the torque wrench recommended for use with the kit to tighten the connecting nut to 90 N-cm (8 in-lb). Refer to “Connections” on page 3-13 for more information. c. Gently tap the barrel of the gage with your finger to settle the gage reading. 85033E...
  • Page 31 After each measurement, rotate the gage a quarter-turn to reduce measurement variations that result from the gage or the connector face not being exactly perpendicular to the center axis. e. Compare the average reading with the observed pin depth limits in Table 2-3 on page 2-4. 85033E...
  • Page 32 Use, Maintenance, and Care of the Devices Gaging Connectors Figure 3-3 Gaging Male 3.5 mm Connectors 3-10 85033E...

  • Page 33: Gaging Female 3.5 Mm Connectors

    Compare the average reading with the observed pin depth limits in Table 2-3 on page 2-4. 85033E 3-11...
  • Page 34 Use, Maintenance, and Care of the Devices Gaging Connectors Figure 3-4 Gaging Female 3.5 mm Connectors 3-12 85033E...

  • Page 35: Connections

    A connection in which the outer conductors make gentle contact at all points on both mating surfaces is sufficient. Very light finger pressure is enough. 8. Make sure the connectors are properly supported. Relieve any side pressure on the connection from long or heavy devices or cables. 85033E 3-13...

  • Page 36: Final Connection Using A Torque Wrench

    (greater than 90 degrees apart) will cause a lifting action that can misalign and stress the connections of the device involved This is especially true when several devices are connected together. Figure 3-5. Figure 3-5 Wrench Positions 3-14 85033E...

  • Page 37: How To Separate A Connection

    1. Use an open-end wrench to prevent the device body from turning. 2. Use another open-end wrench to loosen the connector nut. 3. Complete the separation by hand, turning only the connector nut. 4. Pull the connectors straight apart without twisting, rocking, or bending. 85033E 3-15...

  • Page 38: Handling And Storage

    • Do not set connectors contact-end down on a hard surface. The plating and the mating plane surfaces can be damaged if the interface comes in contact with any hard surface. 3-16 85033E...

  • Page 39: Performance Verification

    Performance Verification 85033E...

  • Page 40: Introduction

    Introduction Introduction The performance of your calibration kit can only be verified by returning the kit to Keysight Technologies for recertification. The equipment required to verify the specifications of the devices inside the kit has been specially manufactured and is not commercially available.

  • Page 41: Recertification

    A list of NIST traceable numbers may be purchased upon request to be included in the calibration report. Keysight Technologies offers a Standard calibration for the recertification of this kit. For more information, contact Keysight Technologies. For contact information, see “Contacting Keysight”...
  • Page 42 Performance Verification Recertification 85033E...

  • Page 43: Troubleshooting

    Troubleshooting 85033E...

  • Page 44: Troubleshooting Process

    Troubleshooting Troubleshooting Process Troubleshooting Process If you suspect a bad calibration, or if your network analyzer does not pass performance verification, follow the steps in Figure 5-1. Figure 5-1 Troubleshooting Flowchart 85033E...

  • Page 45: Where To Look For More Information

    • To view the ENA or PNA online Help, press the Help key on the front panel of the network analyzer. • To view an online VNA user guide, use the following steps: 1. Go to www.keysight.com. 2. Enter your VNA model number (Ex: 8753ES) in the Search box and click Search.

  • Page 46: Returning A Kit Or Device To Keysight

    Returning a Kit or Device to Keysight Returning a Kit or Device to Keysight If your kit or device requires service, contact Keysight Technologies for information on where to send it. See “Contacting Keysight” on page 5-4. Include a service tag (found at the end of this manual) on which you provide the following information: •...

  • Page 47: Replaceable Parts

    Replaceable Parts 85033E...

  • Page 48: Introduction

    Replaceable Parts Introduction Introduction Table 6-1 lists the replacement part numbers for items included in the 85033E calibration kit and Figure 6-1 illustrates each of these items. Table 6-2 lists the replacement part numbers for adapters that are available as options.
  • Page 49 Replaceable Parts Introduction Figure 6-1 Replaceable Parts for the 85033E Calibration Kit 85033E...
  • Page 50 Replaceable Parts Introduction Table 6-1 Replaceable Parts Item No. Description Keysight Part Number Calibration Devices 85033-60027 3.5 mm -m- broadband load 85033-60016 85033-60028 3.5 mm -f- broadband load 85033-60017 3.5 mm -m- offset open 85033-60018 3.5 mm -f- offset open 85033-60019 3.5 mm -m- offset short...
  • Page 51 5 ft. grounding cord for wrist strap 9300-0980 2 x 4 ft. conductive table mat and 15 ft. ground wire 9300-0797 ESD heel strap 9300-1308 a. Keysight can no longer safely ship isopropyl alcohol, so customers should purchase it locally. 85033E...
  • Page 52 Replaceable Parts Introduction 85033E...

  • Page 53: Standard Definitions

    Standard Definitions 85033E...

  • Page 54: Class Assignments And Standard Definitions Values Are Available On The Web

    Keysight’s Calibration Kit Definitions Web page at http://na.support.keysight.com/pna/caldefs/stddefs.html. For a detailed discussion of calibration kits, refer to the Keysight Application Note, “Specifying Calibration Standards and Kits for Keysight Vector Network Analyzers.” This application note covers calibration standard definitions, calibration kit content and its structure requirements for Keysight vector network analyzers.
  • Page 55 Keysight Web site precautions cleaning connectors nitrogen compressed air or nitrogen connections 3-13 3-14 3-15 frequency of calibration...
  • Page 56 Index serial numbers service slotted connectors specifications electrical environmental temperature verifying standard definitions downloading from Keysight Web site static discharge storage 3-16 supplemental characteristics service temperature calibration device error-corrected temperature range measurement operating range verification and measurement terminology, connector test data...
  • Page 57 This information is subject to change without notice. © Keysight Technologies 2000 - 2014 September 2014 *85033-90028* 85033-90028 www.keysight.com...
