LEGRAND Wattstopper IDP 3050-A User Reference Manual

No: 24908 – 05/22 rev. 1
Catalog Number • Numéro de Catalogue • Número de Catálogo: IDP-3050-A
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China

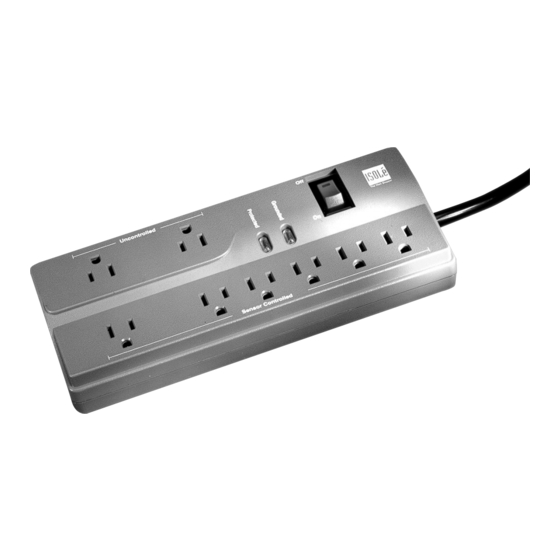

The Wattstopper Isolé IDP 3050-A is an advanced energy saving control system, designed for general office use. It combines an
eight-outlet power strip with the DI-110 personal sensor. The IDP 3050-A controls power used by plug load devices, and provides surge
protection. Its use reduces energy costs and helps the environment by turning power-consuming devices off based on occupancy.
The power strip provides surge protection. It also filters noise caused by electromagnetic interference (EMI) and radio frequency
interference (RFI).
Outlets
Six of the power strip's eight outlets are controlled by the personal sensor, and the remaining two are uncontrolled.
Switches
The power strip has an ON/OFF switch to turn its outlets on or off.
Diagnostic Lights
"Protected" LED indicator: When the surge protector is operating correctly, the LED indicator labeled "Protected" is lit. When unlit, a
power disturbance or fault has occurred within the unit.
"Grounded" LED indicator: Another LED indicator, labeled "Grounded," is lit when the wall outlet is properly wired and grounded. The
surge protection will not operate if the power strip is not properly grounded.
Use Uncontrolled outlets for devices that must be continuously
powered (such as a computer).
Use Sensor-Controlled outlets for appliances and items that
don't need to be powered while you are away from your work
area (such as a light, fan, or monitor).
Power Strip
DESCRIPTION AND OPERATION
THE POWER STRIP
Wattstopper
Eight-Outlet Power Strip with Personal Sensor (v2)
User Reference Guide
DI-110 Personal Sensor
Uncontrolled
Outlets
Sensor Controlled Outlets
®
Diagnostic Lights
ON/OFF Switch
