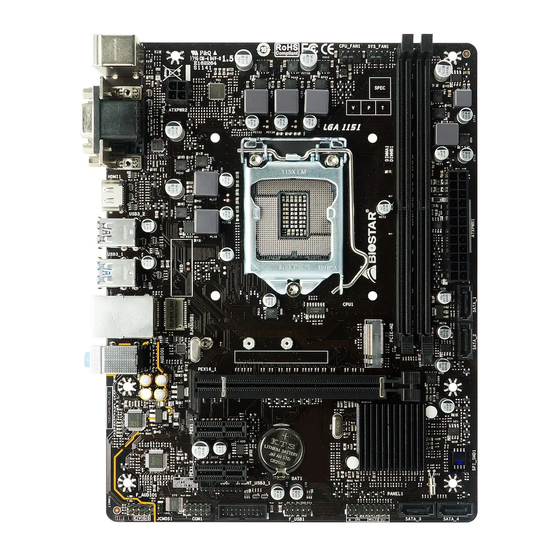

Biostar H310MHD PRO2 User Manual
Biostar H310MHD PRO2 User Manual

Biostar H310MHD PRO2 User Manual

Bios
Hide thumbs Also See for H310MHD PRO2:

Advertisement

Quick Links

BIOS User Guide
H310MHD PRO2
BIOS Update ������������������������������������������������������������������������������������� 2
UEFI BIOS Setup �������������������������������������������������������������������������������� 6
1� Main Menu ����������������������������������������������������������������������������������� 7
2� Advanced Menu ���������������������������������������������������������������������������� 8
3� Chipset Menu �������������������������������������������������������������������������������19
4� Boot Menu �����������������������������������������������������������������������������������23
5� Security Menu ������������������������������������������������������������������������������26
6� O�N�E Menu����������������������������������������������������������������������������������29
7� Exit Menu�������������������������������������������������������������������������������������35

Advertisement

Table of Contents
loading

Summary of Contents for Biostar H310MHD PRO2

  • Page 1: Table Of Contents

    BIOS User Guide H310MHD PRO2 BIOS Update ������������������������������������������������������������������������������������� 2 UEFI BIOS Setup �������������������������������������������������������������������������������� 6 1� Main Menu ����������������������������������������������������������������������������������� 7 2� Advanced Menu ���������������������������������������������������������������������������� 8 3� Chipset Menu �������������������������������������������������������������������������������19 4� Boot Menu �����������������������������������������������������������������������������������23 5� Security Menu ������������������������������������������������������������������������������26 6� O�N�E Menu����������������������������������������������������������������������������������29 7� Exit Menu�������������������������������������������������������������������������������������35...
  • Page 2: Bios Update

    The BIOS can be updated using either of the following utilities: •  BIOSTAR BIOS Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
  • Page 3 H310MHD PRO2 7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the <Y> key to restart system. 8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS setup.
  • Page 4 Then, the BIOS Update is completed. BIOS Update Utility (through a BIOS file) 1. Installing BIOS Update Utility from the DVD Driver. 2. Download the proper BIOS from http://www.biostar.com.tw/ 3. Launch BIOS Update Utility and click the “Update BIOS” button on the main screen.
  • Page 5 H310MHD PRO2 6. After the BIOS Update process is finished, click on “OK” to reboot the system. 7. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS setup. After entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>...
  • Page 6: Uefi Bios Setup

    UEFI BIOS Setup Introduction The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM. UEFI BIOS determines what a computer can do without accessing programs from a disk.
  • Page 7: 1� Main Menu

    H310MHD PRO2 1� Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system information. BIOS Information It shows system information including UEFI BIOS version, Project Code, Model Name, Build Date and etc.
  • Page 8: 2� Advanced Menu

    2� Advanced Menu The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power Management, and other system devices. Note   » Beware of that setting inappropriate values in items of this menu may cause system to malfunction. Trusted Computing Security Device Support This item enables or disables BIOS support for security device.
  • Page 9 H310MHD PRO2 SHA-1 PCR Bank This item enables or disables SHA-1 PCR Bank. Options: Enabled (Default) / Disabled SHA256 PCR Bank This item enables or disables SHA256 PCR Bank. Options: Enabled (Default) / Disabled Pending operation This item schedule an operation for the security device.
  • Page 10 ACPI Settings Enable ACPI Auto Configuration This item enables or disables BIOS ACPI auto configuration function. Options: Disabled (Default) / Enabled Enable Hibernation This item enables or disables system ability to hibernate (0S/S4 sleep state). This option may not be effective with some OSs. Options: Enabled (Default) / Disabled ACPI Sleep State This item allows you to select the highest ACPI sleep state the system will enter when the...
  • Page 11 H310MHD PRO2 PS2 Mouse PowerOn This item allows you to control the mouse power on function. Options: Disabled (Default) / Enabled Restore AC Power Loss Specify what state to go to when power is re-applied after a power failure. Options: Power Off (Default) / Power On / Last State PME Wake up from S5 The item enables the system to wake from S5 using PME event.
  • Page 12 Control Mode This item provides several operation modes of the fan. Options: Quiet (Default) / Aggressive / Manual Note   » The following items appear only when you set the Control Mode function to [Manual]. Fan Ctrl OFF(°C) When CPU temperature is lower than this value, the CPU fan will keep lowest RPM. Options: 10 (°C) (default) Fan Ctrl On(°C) When CPU temperature is higher than this value, the CPU fan controller will turn on.
  • Page 13 H310MHD PRO2 H/W Monitor Shutdown Temperature This item allows you to set up the CPU shutdown Temperature. Options: Disabled (Default) / 70°C/158°F / 75°C/167°F / 80°C/176°F / 85°C/185°F / 90°C/194°F USB Configuration Legacy USB Support The item allows you to enable Legacy USB support. AUTO option disables legacy support if no USB devices are connected.
  • Page 14 XHCI Hand-off This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. Options: Disabled (Default) / Enabled USB Mass Storage Driver Support The item allows you to enable or disable USB Mass Storage Driver Support. Options: Enabled (Default) / Disabled Port 60/64 Emulation The item enable or disable Port 60/64 Emulation.
  • Page 15 H310MHD PRO2 Network Stack Configuration Network Stack This item enables or disables UEFI network stack Options: Disabled (Default) / Enabled Note   » The following items appear only when you set the Network Stack function to [Enabled] IPv4 PXE Support This item enables or disables IPv4 PXE Boot Support.
  • Page 16 NVMe Configuration The item shows NVMe controller and driver information. Offboard PCIe SATA Controller 16 | 2. Advanced Menu...
  • Page 17 H310MHD PRO2 CPU Configuration This item shows CPU Information Software Guard Extensions (SGX) This item enables or disableds Software Guard Extensions (SGX). Options: Software Controlled (Default) / Enabled / Disabled PRMRR Size This item allows you to setting the PRMRR Size.
  • Page 18 SATA and RST Configuration The BIOS will automatically detect the presence of SATA devices. There is a sub-menu for each SATA device. Select a device and press <Enter> to enter the sub-menu for detailed options. SATA Controller(s) This item enables or disables Serial ATA Device. Options: Enabled (Default) / Disabled SMART Self Test This item runs SMART Self Test on all HDDs during POST.
  • Page 19: 3� Chipset Menu

    H310MHD PRO2 3� Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components.
  • Page 20 Onboard LAN1 This item enables or disables Onbaord LAN1. Options: Enabled (Default) / Disabled Onboard LAN1 Option ROM This item enables or disables Onboard LAN1 Option ROM. Options: Disabled (Default) / Enabled PCH-IO Configuration PCI Express Configuration PEX1_1/ PEX1_2 PCIe Speed This item Configure PCIe Speed.
  • Page 21 H310MHD PRO2 HD Audio Control Detection of the HD-Audio device. Disabled = HDA will be unconditionally disabled. Enabled = HDA will be unconditionally enabled. Auto = HDA will be enabled if present, disabled otherwise. Options: Auto (Default) / Disabled / Enabled ErP Control When ErP is enabled, the system will meet ErP requirement.
  • Page 22 DVMT Pre-Allocated This item selects DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. Options: 32M (Default) / 0M / 64M / 4M / 8M / 12M / 16M / 20M / 24M / 28M / 32M/F7 / 36M / 40M / 44M / 48M / 52M / 56M / 60M DVMT Total Gfx Mem This item selects DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.
  • Page 23: 4� Boot Menu

    H310MHD PRO2 4� Boot Menu This menu allows you to setup the system boot options. Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Options: 1 (Default) Bootup NumLock State This item selects the keyboard NumLock state.
  • Page 24 Fast Boot This item enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options. Options: Disabled (Default) / Enabled Note   » The following items appear only when you set the Fast Boot function to [Enabled] SATA Support If Last Boot HDD Only, Only last boot HDD device will be available in post.
  • Page 25 H310MHD PRO2 Boot option filter This option controls Legacy/UEFI ROMs priority. Options: UEFI and Legacy (Default) / Legacy only / UEFI only Network This option controls the execution of UEFI and Legacy Network OpROM Options: Legacy (Default) / UEFI / Do not launch...
  • Page 26: 5� Security Menu

    5� Security Menu Administrator Password This item sets Administrator Password. User Password This item sets User Password. Secure Boot Menu 26 | 5. Security Menu...
  • Page 27 H310MHD PRO2 Secure Boot Secure Boot feature is active if Secure Boot is enabled, Platform Key(PK) is enrolled and the system is in user mode. The mode change requires platform reset. Options: Disabled (Default) / Enabled Secure Boot Customization Secure Boot mode options : Standard or Custom. In Custom mode, Secure Boot Policy variables can be configured by a physically present user without full authentication.
  • Page 28 Remove ‘UEFI CA’ from DB Device Guard ready system must not list ‘Microsoft UEFI CA’ Certificate in Authorized Signature database(db). Restore DB defaults Restore DB variable to factory defaults. Platform Key (PK) Options: Details / Export / Update / Delete Key Exchange Keys Options: Details / Export / Update / Append / Delete Authorized Signatures...
  • Page 29: 6� O�N�E Menu

    H310MHD PRO2 6� O�N�E Menu This submenu allows you to change voltage and clock of various devices. Note   » We suggest you use the default setting. Changing the voltage and clock improperly may damage the device.   » The options and default settings might be different by RAM or CPU models.
  • Page 30 Ring Max Ratio This sets the maximum overclocking ratio for the CPU Ring. Memory Profile Select DIMM timing profile. The below values start with the currently running values and don’t auto populate. Options: Default profile (Default) / Custom profile Note  ...
  • Page 31 H310MHD PRO2 tRAS This item allows you to select Row Active Time, 0: AUTO, max: 64 Options: Auto (Default) tCWL This item allows you to select Minimum CAS Write Latency Delay, 0: AUTO, max: 20 Options: Auto (Default) tFAW This item allows you to select Four Activate Window Delay Time, 0: AUTO, max: 63...
  • Page 32 RttWr Options: Auto (Default) / Disabled / RZQ/1 / RZQ/2 / RZQ/3 / Hi-Z RttNom Options: Auto (Default) / Disabled / RZQ/1 / RZQ/2 / RZQ/3 / RZQ/4 / RZQ/5 / RZQ/6 / RZQ/7 RttPark Options: Auto (Default) / Disabled / RZQ/1 / RZQ/2 / RZQ/3 / RZQ/4 / RZQ/5 / RZQ/6 / RZQ/7 Turn Around Timing tRD2RD_SG This item delay between Read-to-Read commands in the same Bank Group, Range 4-54.
  • Page 33 H310MHD PRO2 tRD2WR_DR This item delay between Read-to-Write commands in different Ranks. 0-Auto, Range 4-54. Options: Auto (Default) tRD2WR_dd This item delay between Read-to-Write commands in different DIMMs. 0-Auto, Range 4-54. Options: Auto (Default) tWR2RD_SG This item delay between Write-to-Read commands in the same Bank Group. 0-Auto, Range 4-86.
  • Page 34 Voltage Configuration DRAM Voltage This item sets DRAM Over Voltage. Options: Auto (Default) / 1.20V / 1.35V CPU Power Management Intel(R) SpeedStep(tm) This item allows more than two frequency ranges to be supported. Options: Enabled (Default) / Disabled 34 | 6. O.N.E Menu...
  • Page 35 H310MHD PRO2 Race To Halt (RTH) This item enables or disables Race To Halt feature. RTH will dynamically increase CPU frequency in order to enter pkg C-State faster to reduce overall power. (RTH is controlled through MSR 1FC bit Options: Enabled (Default) / Disabled Intel(R) Speed Shift Technology This item enables or disables Intel(R) Speed Shift Technology support.
  • Page 36 C-States Auto Demotion This item sets C-State Auto Demotion. Options: C1 and C3 (Default) / C1 / C3/ Disabled C-States Un-demotion This item sets C-State Un-demotion. Options: C1 and C3 (Default) / C1 / C3/ Disabled Package C-State Demotion This item sets Package C state Demotion. Options: Disabled (Default) / Enabled Package C-State Un-demotion This item sets Package C-State Un-demotion.
  • Page 37 H310MHD PRO2 Memory Insight DIMM Profile These items display memory information. 6. O.N.E Menu | 37...
  • Page 38: 7� Exit Menu

    7� Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. Discard Changes and Exit Abandon all changes made during the current session and exit setup. Save Changes and Reset Reset the system after saving the changes.
