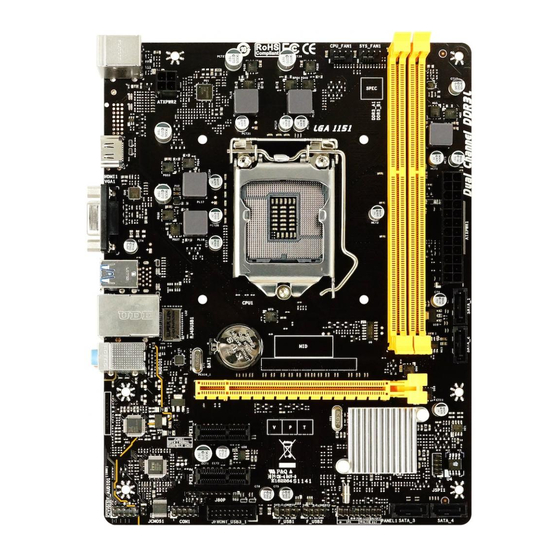

Biostar H310MHD3 User Manual
Hide thumbs Also See for H310MHD3:

Advertisement

Quick Links

BIOS User Guide
H310MHD3
BIOS Update ������������������������������������������������������������������������������������� 2
UEFI BIOS Setup �������������������������������������������������������������������������������� 6
1� Main Menu ����������������������������������������������������������������������������������� 7
2� Advanced Menu ���������������������������������������������������������������������������� 8
3� Chipset Menu �������������������������������������������������������������������������������19
4� Boot Menu �����������������������������������������������������������������������������������23
5� Security Menu ������������������������������������������������������������������������������26
6� O�N�E Menu����������������������������������������������������������������������������������29
7� Exit Menu�������������������������������������������������������������������������������������38

Advertisement

Table of Contents
loading

Summary of Contents for Biostar H310MHD3

  • Page 1: Table Of Contents

    BIOS User Guide H310MHD3 BIOS Update ������������������������������������������������������������������������������������� 2 UEFI BIOS Setup �������������������������������������������������������������������������������� 6 1� Main Menu ����������������������������������������������������������������������������������� 7 2� Advanced Menu ���������������������������������������������������������������������������� 8 3� Chipset Menu �������������������������������������������������������������������������������19 4� Boot Menu �����������������������������������������������������������������������������������23 5� Security Menu ������������������������������������������������������������������������������26 6� O�N�E Menu����������������������������������������������������������������������������������29 7� Exit Menu�������������������������������������������������������������������������������������38...
  • Page 2: Bios Update

    The BIOS can be updated using either of the following utilities: •  BIOSTAR BIOS Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
  • Page 3 H310MHD3 7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the <Y> key to restart system. 8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS setup.
  • Page 4 Then, the BIOS Update is completed. BIOS Update Utility (through a BIOS file) 1. Installing BIOS Update Utility from the DVD Driver. 2. Download the proper BIOS from http://www.biostar.com.tw/ 3. Launch BIOS Update Utility and click the “Update BIOS” button on the main screen.
  • Page 5 H310MHD3 6. After the BIOS Update process is finished, click on “OK” to reboot the system. 7. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS setup. After entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>...
  • Page 6: Uefi Bios Setup

    UEFI BIOS Setup Introduction The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM. UEFI BIOS determines what a computer can do without accessing programs from a disk.
  • Page 7: 1� Main Menu

    H310MHD3 1� Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system information. BIOS Information It shows system information including UEFI BIOS version, Project Code, Model Name, Build Date and etc.
  • Page 8: 2� Advanced Menu

    2� Advanced Menu The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power Management, and other system devices. Note   » Beware of that setting inappropriate values in items of this menu may cause system to malfunction. Trusted Computing Security Device Support This item enables or disables BIOS support for security device.
  • Page 9 H310MHD3 SHA-1 PCR Bank This item enables or disables SHA-1 PCR Bank. Options: Enabled (Default) / Disabled SHA256 PCR Bank This item enables or disables SHA256 PCR Bank. Options: Enabled (Default) / Disabled Pending operation This item schedule an operation for the security device.
  • Page 10 ACPI Settings Enable ACPI Auto Configuration This item enables or disables BIOS ACPI auto configuration function. Options: Disabled (Default) / Enabled Enable Hibernation This item enables or disables system ability to hibernate (0S/S4 sleep state). This option may not be effective with some OSs. Options: Enabled (Default) / Disabled Lock Legacy Resources The item enables or disables Lock of Legacy Resources.
  • Page 11 H310MHD3 SMART FAN Control CPU/System Smart Fan1 This item allows you to control the CPU Smart Fan function. Options: Disabled (Default) / Auto CPU Fan1 Calibrate Press [ENTER] to calibrate CPU Fan1 speed. Control Mode This item provides several operation modes of the fan.
  • Page 12 IT8613 Super IO Configuration Serial Port This item enables or disables Serial Port (COM). Options: Enabled (Default) / Disabled Change Settings This item Select an optimal settings for Super IO Device. Options: Auto (Default) / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 / IO=2F8h;...
  • Page 13 H310MHD3 Shutdown Temperature This item allows you to set up the CPU shutdown Temperature. Options: Disabled (Default) / 70°C/158°F / 75°C/167°F / 80°C/176°F / 85°C/185°F / 90°C/194°F USB Configuration Legacy USB Support The item allows you to enable Legacy USB support. AUTO option disables legacy support if no USB devices are connected.
  • Page 14 Device power-up delay Maximum time the device will take before it properly reports itself to the Host Controller. “Auto” uses default value: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor. Options: Auto (Default) / Manual Note  ...
  • Page 15 H310MHD3 IPv4 HTTP Support This item enables or disables IPv4 HTTP Boot Support. If disabled IPv4 HTTP boot support will not be available. Options: Disabled (Default) / Enabled IPv6 PXE Support This item enables or disables IPv6 PXE Boot Support. If disabled IPv6 PXE boot support will not be available.
  • Page 16 Offboard PCIe SATA Controller CPU Configuration This item shows CPU Information SW Guard Extensions (SGX) This item enables or disableds Software Guard Extensions (SGX). Options: Software Controlled (Default) / Enabled / Disabled PRMRR Size This item allows you to setting the PRMRR Size. Options: INVALID PRMRR (Default) / 32MB / 64MB / 128MB 16 | 2.
  • Page 17 H310MHD3 Overclocking Lock This item enables or disableds Overclocking Lock. Options: Disabled (Default) / Enabled Hardware Prefetcher This item to turn on/off the MLC streamer prefetcher. Options: Enabled (Default) / Disabled Adjacent Cache Line Prefetch This item to turn on/off prefetching of adjacent cache lines.
  • Page 18 SMART Self Test This item runs SMART Self Test on all HDDs during POST. Options: Disabled (Default) / Enabled SATA Hot Plug This item enables or disables designates SATA port as Hot Pluggable. Options: Disabled (Default) / Enabled 18 | 2. Advanced Menu...
  • Page 19: 3� Chipset Menu

    H310MHD3 3� Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components.
  • Page 20 Onboard LAN1 This item enables or disables Onbaord LAN1. Options: Enabled (Default) / Disabled Onboard LAN1 Option ROM This item enables or disables Onboard LAN1 Option ROM. Options: Disabled (Default) / Enabled PCH-IO Configuration PCI Express Configuration PEX1_1/ PEX1_2 PCIe Speed This item Configure PCIe Speed.
  • Page 21 H310MHD3 HD Audio Control Detection of the HD-Audio device. Disabled = HDA will be unconditionally disabled. Enabled = HDA will be unconditionally enabled. Auto = HDA will be enabled if present, disabled otherwise. Options: Auto (Default) / Disabled / Enabled ErP Control When ErP is enabled, the system will meet ErP requirement.
  • Page 22 DVMT Pre-Allocated This item selects DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. Options: 32M (Default) / 0M / 64M / 4M / 8M / 12M / 16M / 20M / 24M / 28M / 32M/F7 / 36M / 40M / 44M / 48M / 52M / 56M / 60M DVMT Total Gfx Mem This item selects DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.
  • Page 23: 4� Boot Menu

    H310MHD3 4� Boot Menu This menu allows you to setup the system boot options. Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Options: 1 (Default) Bootup NumLock State This item selects the keyboard NumLock state.
  • Page 24 Fast Boot This item enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options. Options: Disabled (Default) / Enabled Note   » The following items appear only when you set the Fast Boot function to [Enabled] SATA Support If Last Boot HDD Only, Only last boot HDD device will be available in post.
  • Page 25 H310MHD3 Boot option filter This option controls Legacy/UEFI ROMs priority. Options: UEFI and Legacy (Default) / Legacy only / UEFI only Network This option controls the execution of UEFI and Legacy Network OpROM Options: Legacy (Default) / UEFI / Do not launch...
  • Page 26: 5� Security Menu

    5� Security Menu Administrator Password This item sets Administrator Password. User Password This item sets User Password. Secure Boot Menu 26 | 5. Security Menu...
  • Page 27 H310MHD3 Secure Boot Secure Boot feature is active if Secure Boot is enabled, Platform Key(PK) is enrolled and the system is in user mode. The mode change requires platform reset. Options: Disabled (Default) / Enabled Secure Boot Customization Secure Boot mode options : Standard or Custom. In Custom mode, Secure Boot Policy variables can be configured by a physically present user without full authentication.
  • Page 28 Remove ‘UEFI CA’ from DB Device Guard ready system must not list ‘Microsoft UEFI CA’ Certificate in Authorized Signature database(db). Restore DB defaults Restore DB variable to factory defaults. Platform Key (PK) Options: Details / Export / Update / Delete Key Exchange Keys Options: Details / Export / Update / Append / Delete Authorized Signatures...
  • Page 29: 6� O�N�E Menu

    H310MHD3 6� O�N�E Menu This submenu allows you to change voltage and clock of various devices. Note   » We suggest you use the default setting. Changing the voltage and clock improperly may damage the device.   » The options and default settings might be different by RAM or CPU models.
  • Page 30 Ring Max Ratio This sets the maximum ratio for the RING Domain. Ring Min Ratio This sets the minimum ratio for the RING Domain. Memory Profile Select DIMM timing profile. The below values start with the currently running values and don’t auto populate.
  • Page 31 H310MHD3 tRCD/tRP This item allows you to select RAS to CAS delay time and Row Prechrge delay time, 0: AUTO, max: 63 Options: Auto (Default) tRAS This item allows you to select Row Active Time, 0: AUTO, max: 64 Options: Auto (Default)
  • Page 32 Turn Around Timing tRD2RD_SG This item delay between Read-to-Read commands in the same Bank Group, Range 4-54. Options: Auto (Default) tRD2RD_DG This item delay between Read-to-Read commands in different Bank Group for DDR4. All other DDR technologies should set this equal to SG. 0-Auto, Range 4-54. Options: Auto (Default) tRD2RD_DR This item delay between Read-to-Read commands in different Ranks.
  • Page 33 H310MHD3 tWR2RD_DG This item delay between Write-to-Read commands in different Bank Group for DDR4. All other DDR technologies should set this equal to SG. 0-Auto, Range 4-54. Options: Auto (Default) tWR2RD_DR This item delay between Write-to-Read commands in different Ranks. 0-Auto, Range 4-54.
  • Page 34 Voltage Configuration DRAM Voltage This item sets DRAM Over Voltage. Options: Auto (Default) / 1.35V / 1.42V CPU Power Management Intel(R) SpeedStep(tm) This item allows more than two frequency ranges to be supported. Options: Enabled (Default) / Disabled 34 | 6. O.N.E Menu...
  • Page 35 H310MHD3 Race To Halt (RTH) This item enables or disables Race To Halt feature. RTH will dynamically increase CPU frequency in order to enter pkg C-State faster to reduce overall power. (RTH is controlled through MSR 1FC bit Options: Enabled (Default) / Disabled Intel(R) Speed Shift Technology This item enables or disables Intel(R) Speed Shift Technology support.
  • Page 36 C-States Auto Demotion This item sets C-State Auto Demotion. Options: C1 and C3 (Default) / C1 / C3/ Disabled C-States Un-demotion This item sets C-State Un-demotion. Options: C1 and C3 (Default) / C1 / C3/ Disabled Package C-State Demotion This item sets Package C state Demotion. Options: Disabled (Default) / Enabled Package C-State Un-demotion This item sets Package C-State Un-demotion.
  • Page 37 H310MHD3 Memory Insight DIMM Profile These items display memory information. 6. O.N.E Menu | 37...
  • Page 38: 7� Exit Menu

    7� Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. Discard Changes and Exit Abandon all changes made during the current session and exit setup. Save Changes and Reset Reset the system after saving the changes.
