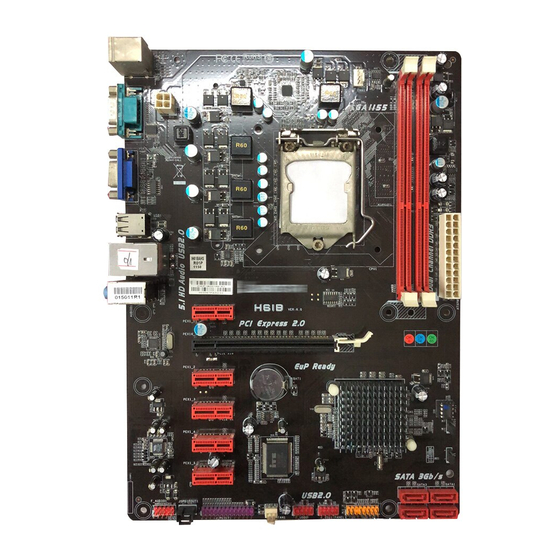

H61B UEFI BIOS Manual
UEFI BIOS Setup...................................................................................... 1
1 Main Menu ............................................................................................. 3
2 Advanced Menu...................................................................................... 4
3 Chipset Menu ....................................................................................... 17
4 Boot Menu............................................................................................. 22
5 Security Menu ...................................................................................... 24
6 Performance Menu .............................................................................. 25
7 Exit Menu ............................................................................................. 30
i
Advertisement
Table of Contents
Related Manuals for Biostar H61B
Summary of Contents for Biostar H61B
- Page 1 H61B UEFI BIOS Manual UEFI BIOS Setup..................1 1 Main Menu ..................... 3 2 Advanced Menu..................4 3 Chipset Menu ..................17 4 Boot Menu..................... 22 5 Security Menu ..................24 6 Performance Menu ................25 7 Exit Menu ..................... 30...
-
Page 2: Uefi Bios Setup
H61B UEFI BIOS Manual UEFI BIOS Setup Introduction The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM. -
Page 3: Supported Cpus
H61B UEFI BIOS Manual Supported CPUs This AMI UEFI BIOS supports the Intel CPU. Using Setup When starting up the computer, press <Del> during the Power-On Self-Test (POST) to enter the UEFI BIOS setup utility. In the UEFI BIOS setup utility, you will... - Page 4 H61B UEFI BIOS Manual 1 Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system information. BIOS Information Shows system information including UEFI BIOS version, project code, model name, built date, etc.
-
Page 5: Advanced Menu
H61B UEFI BIOS Manual 2 Advanced Menu The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power Management, and other system devices. Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction. - Page 6 H61B UEFI BIOS Manual PCI ROM Priority In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies what PCI Option ROM to launch Options: Legacy ROM (Default) / EFI Compatible ROM PCI Latency Timer This item sets the value to be programmed into PCI Latency Timer Register.
- Page 7 H61B UEFI BIOS Manual Maximum Payload This item sets Maximum Payload of PCI Express Device or allows System BIOS to select the value. Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048...
- Page 8 H61B UEFI BIOS Manual ACPI Sleep State This item selects the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled / S3 (Suspend to RAM) EuP Control When EuP is enabled, the system will meet EuP requirement.
-
Page 9: Cpu Configuration
H61B UEFI BIOS Manual Stroke Keys Selected This item will show only when Keyboard PowerOn is set “Stroke Key.” Options: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 / Ctrl +F4 / Ctrl+F5 / Ctrl+F6 Specific Key Enter This item will show only when Keyboard PowerOn is set “Specific Key.”... - Page 10 H61B UEFI BIOS Manual Limit CPUID Maximum When the computer is booted up, the operating system executes the CPUID instruction to identify the processor and its capabilities. Before it can do so, it must first query the processor to find out the highest input value CPUID recognizes. This determines the kind of basic information CPUID can provide the operating system.
-
Page 11: Sata Configuration
H61B UEFI BIOS Manual SATA Configuration SATA Mode This item sets SATA Mode. Options: IDE Mode (Default) / AHCI Mode / Disabled Serial-AT A Controller 0 This item enables/disables Serial ATA Controller 0. Options: Compatible (Default) / Disabled / Enhanced Serial-AT A Controller 1 This item enables/disables Serial ATA Controller 1. -
Page 12: Usb Configuration
H61B UEFI BIOS Manual USB Configuration Legacy USB Support This item determines if the BIOS should provide legacy support for USB devices like the keyboard, mouse, and USB drive. This is a useful feature when using such USB devices with operating systems that do not natively support USB (e.g. - Page 13 H61B UEFI BIOS Manual SMART FAN Control CPU Smart FAN This item allows you to control the CPU Smart Fan function. Options: Disabled (Default) / Auto CPU FAN Calibrate Press [ENTER] to calibrate CPU FAN. Control Mode This item provides several operation modes of the fan.
-
Page 14: Super Io Configuration
H61B UEFI BIOS Manual Fan Ctrl Start Value This item sets CPU FAN Start Speed Value. Options: 50 (Default) Fan Ctrl Sensitive The bigger the numeral is, the higher the FAN speed is. Options: 30 (Default) Super IO Configuration Restore AC Power Loss This setting specifies how your system should behave after a power fail or interrupts occurs. - Page 15 H61B UEFI BIOS Manual Serial Port 1 Configuration Serial Port This item enables or disables Serial Port (COM). Options: Enabled (Default) / Disabled Change Settings This item allows you to select an optimal setting for Super IO device. Options: Auto (Default) / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12 / IO=2F8h;...
- Page 16 H61B UEFI BIOS Manual Parallel Port This item enables or disables Parallel Port (LPT/LPTE). Options: Enabled (Default) / Disabled Change Settings This item allows you to select an optimal setting for Super IO device. Options: Auto (Default) / IO=378h; IRQ=5 / IO=378h; IRQ=5, 6, 7, 9, 10, 11, 12 / IO=278h;...
- Page 17 H61B UEFI BIOS Manual H/W Monitor Shutdown Temperature This item allows you to set up the CPU shutdown Temperature. Options: Disabled (Default) / 70 /158 / 75 /167 / 80 /176 / 85 /185 ℃ ℉ ℃ ℉ ℃ ℉...
-
Page 18: Chipset Menu
H61B UEFI BIOS Manual 3 Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components. - Page 19 H61B UEFI BIOS Manual Low MMIO Align MMIO resources align at 64MB/1024MB. Options: 1024M (Default) / 64M VT-d This item enables/disables VT-d function. Options: Disabled (Default) / Enabled Initiate Graphic Adapter This item allows you to select which graphics controller to use as the primary boot device.
-
Page 20: South Bridge Configuration
H61B UEFI BIOS Manual IGD Multi-Monitor This item enables/disables IGD Multi-Monitor by Internal Graphics Device. Options: Disabled (Default) / Enabled PCI Express Port This item allows user to control PCI Express x16 Port. Options: Auto (Default) / Disabled / Enabled... - Page 21 H61B UEFI BIOS Manual Azalia internal HDMI codec This item enables/disables internal HDMI codec for Azalia. Options: Enabled (Default) / Disabled High Precision Timer This item enables/disables the High Precision Event Timer. Options: Enabled (Default) / Disabled PCI Express Ports Configuration Launch PXE OpROM This item enables/disables Boot Option for Legacy Network Devices.
- Page 22 H61B UEFI BIOS Manual PCI Express Port x1 This item enables/disables PCI Express Port x1. Options: Auto (Default) / Disabled / Enabled PCIe Sub Decode This item enables/disables PCIe Sub Decode Port. (This option is available when Subtractive Decode Agent is enabled (PCHTrap9[14]) = ‘1b’)
-
Page 23: Setup Prompt Timeout
H61B UEFI BIOS Manual 4 Boot Menu This menu allows you to setup the system boot options. Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. Options: 2 (Default) Bootup NumLock State This item selects the keyboard NumLock state. -
Page 24: Interrupt 19 Capture
H61B UEFI BIOS Manual Option ROM Messages This item sets the display mode for Option ROM. Options: Force BIOS (Default) / Keep Current Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When set to Enabled, this item allows the option ROMs to trap interrupt 19. -
Page 25: Security Menu
H61B UEFI BIOS Manual 5 Security Menu Administrator Password This item sets Administrator Password. User Password This item sets User Password. -
Page 26: Performance Menu
H61B UEFI BIOS Manual 6 Performance Menu This submenu allows you to change voltage and clock of various devices. (However, we suggest you use the default setting. Changing the voltage and clock improperly may damage the device.) Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction. -
Page 27: Enhanced Intel Speedstep Technology
H61B UEFI BIOS Manual CPU Core Current Max (Amp) This item sets the Max instantaneous current allowed at any given time. Options: 120 (Default) Power Limit 1 Value (Watt) This item sets the power limit value which CPU must not exceed over a specific time. -
Page 28: Dram Timing Control
H61B UEFI BIOS Manual DDR3 DRAM Multiplier This item allows you to set DDR3 DRAM Multiplier. Options: Auto (Default) / 10.67 / 13.33 DRAM Timing Control This item allows you to choose to manually or automatically regulate the DRAM Timing. - Page 29 H61B UEFI BIOS Manual Row Refresh Cycle Time (tRFC) This item allows you to select Minimum Refresh Recovery Time of DDR3. Options: 107 (Default) / 15 ~ 255 Write to Read Delay (tWTR) This item allows you to select Internal Write to Read Command Delay of DDR3.
- Page 30 H61B UEFI BIOS Manual DDR3 A1/B1 Information These items display SPD information of DDR3 memory.
-
Page 31: Discard Changes And Exit
H61B UEFI BIOS Manual 7 Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. Discard Changes and Exit Abandon all changes made during the current session and exit setup.
