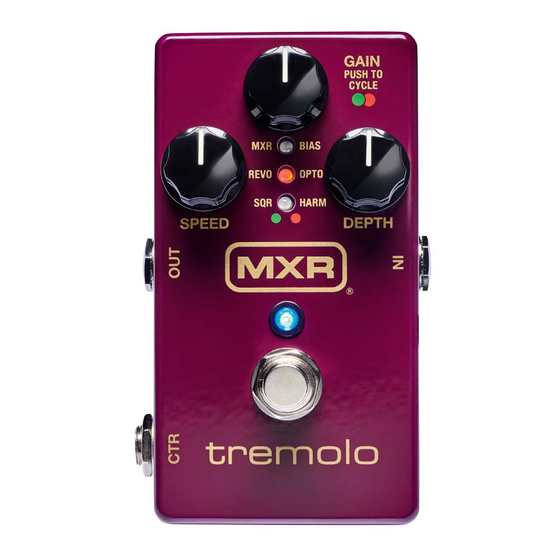

M305
Tremolo
This return of the tremolo effect to the MXR
line
®
combines a full historical range of masterfully tuned
tremolo styles with a host of features to satisfy the
performance needs of today's discerning players.
jimdunlop.com/m305

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tremolo M305 and is the answer not in the manual?

Questions and answers

Related Manuals for mxr Tremolo M305

Summary of Contents for mxr Tremolo M305

  • Page 1 M305 Tremolo This return of the tremolo effect to the MXR line ® combines a full historical range of masterfully tuned tremolo styles with a host of features to satisfy the performance needs of today’s discerning players. jimdunlop.com/m305...

  • Page 2: External Controls

    External Controls External Controls 1 CTR output jack allows use of tap tempo switch, expression pedal, or stereo output function 2 SPEED knob adjusts rate of effect GAIN knob sets output level and selects tremolo style (indicated by flashing red or green LED) 3 GAIN knob sets output level and selects tremolo style (indicated by flashing red or green LED) 4 DEPTH knob sets intensity of effect...

  • Page 3: Basic Operation

    Tremolo Styles jack and run another cable from the M305’s OUTPUT jack to your amplifier. MXR: Classic M159 sound. Indicated by green LED. 2. Start with all knobs at 12 o’clock. Turn the effect on by depressing the footswitch. BIAS: Vintage bias waveform; emulates lush compression of browned out tubes.

  • Page 4: Advanced Operation

    Set CTR slide switch to its left position, and connect an Set CTR switch to its right position, and run an instrument MXR Tap Tempo Switch to the M305’s CTR jack using a cable from the M305’s CTR jack to a separate output standard instrument cable.

  • Page 5: Envelope Mode

    Advanced Operation (cont.) ENVELOPE MODE BUFFERED BYPASS MODE While Envelope Mode is engaged, the SPEED and By default, the M305 uses a true bypass relay, shutting DEPTH functions are determined by the intensity of off the effect and hardwire bypassing the tip connection your own playing.

  • Page 6: Specifications

    Specifications Input Impedance 600 kΩ Output Impedance < 140 Ω Maximum Intput Level +2 dBV Maximum Output Level +4 dBV Speed Control 0.7 Hz to 15 Hz Depth Control 0 to 100% *Noise Floor -100 dBV Current Draw 190 mA Power Supply 9 volts DC Specifications at 1 kHz *A-Weighted...
