Insignia NS-ICEF2W2 User Manual

Hide thumbs

Advertisement

Table of Contents

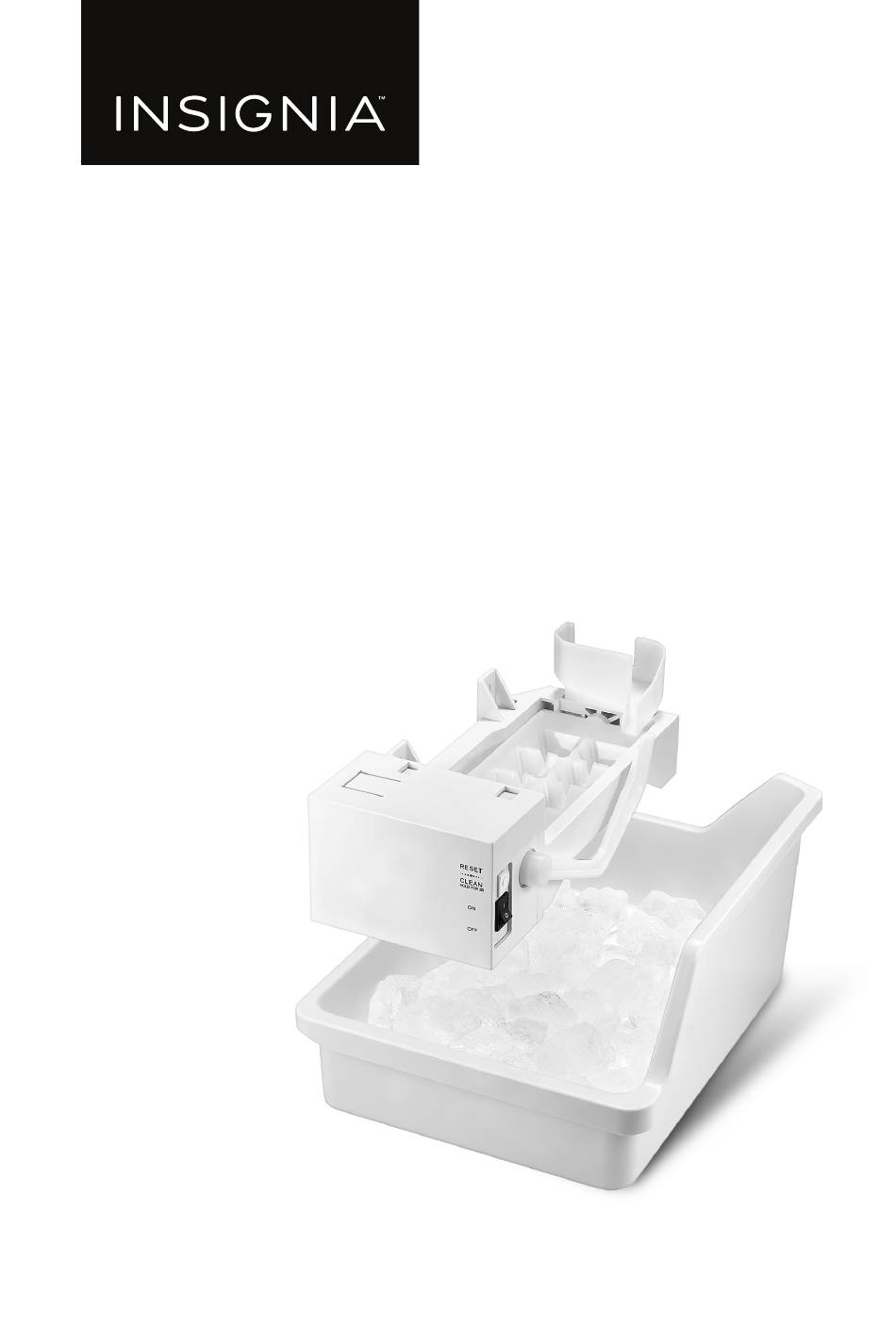

USER GUIDE
Ice Maker
NS-ICEF2W2
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-ICEF2W2 and is the answer not in the manual?

Questions and answers

Jami
March 8, 2025

I have installed my ice maker and checked all the connections but it will still not fill or cycle or work. Are there any other troubleshooting tips you can offer?

0
1 comments:
Mr. Anderson
March 8, 2025

If the Insignia NS-ICEF2W2 ice maker is not filling or cycling, follow these troubleshooting tips:

1. Check the Ice Maker Connector – Ensure the ice maker plug is fully inserted into the socket.
2. Inspect the Fill Tube – Make sure the fill tube is correctly seated in the fill cup opening.
3. Verify the Water Supply – Ensure the water supply valve is turned on and inspect the water supply line for any issues.

These steps can help identify and resolve common problems preventing the ice maker from working properly.

This answer is automatically generated

0
Stephan Lockhart
February 9, 2025

ICE CUBES GET EXTRA WATER ON THEM CAUSING THEM TO STICK TOGETHER. SEEMS LIKE OVER SPRAY

0
1 comments:
Mr. Anderson
February 11, 2025

Ice cubes in the Insignia NS-ICEF2W2 may stick together due to excess water if there are air bubbles in the water supply. This can cause improper freezing, leading to cubes merging together.

This answer is automatically generated

0

Related Manuals for Insignia NS-ICEF2W2

Summary of Contents for Insignia NS-ICEF2W2

  • Page 1 USER GUIDE Ice Maker NS-ICEF2W2 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    ONE-YEAR LIMITED WARRANTY .........24 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-ICEF2W2 represents the state of the art in ice maker design and is designed for reliable and trouble-free performance. www.insigniaproducts.com...

  • Page 3: Important Safety Instructions

    Ice Maker IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your refrigerator. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your refrigerator.

  • Page 4: Features

    • Produces up to 2.7 pounds of ice a day, depending on the size of your refrigerator. • Stores up to 5.5 pounds of ice • Prevents overflow by automatically detecting when storage bin is full • Works with these Insignia refrigerators: NS-RBM18SS0, NS-RTM18SS2, NS-RTM18WH2, NS-RTM18BK2L, NS-RTM18SS2L, NS-RTM18BK2, NS-RTM18WHD2, NS-RTM18BKD2, and NS-RTM20SS3. Package contents...

  • Page 5: Tools And Materials Needed

    The water line kit (including copper tubing and shut off valve) are available in a kit (#5303917950) from your local hardware or plumbing supply store. Installing the ice maker Your Insignia refrigerator comes set up for ice maker installation. CAUTION: To eliminate the danger of electric shock during installation, you must first unplug the refrigerator.
  • Page 6 Remove the plug from the inside of the freezer compartment with a putty knife. Plug Peel off the label covering the ice maker hole on the back of the refrigerator, then remove the foam from the hole with the needle nose pliers. Retain the foam for future use.
  • Page 7 Ice Maker Push the water inlet tube into the small hole on back of refrigerator. Rotate while inserting the tube until the flat surface of inlet tube is tight against the back of the refrigerator. Secure the water inlet tube to the back of the refrigerator with two self-drilling screws (provided).
  • Page 8 Insert the two ice maker mounting screws into the holes in the freezer wall. Turn each screw clockwise five times. Ice maker mounting screws Use needle nose pliers to remove the terminal cover located at the top of the freezer by first pulling down one side of the cover, then pulling down the other side.
  • Page 9 Ice Maker With the ice maker in one hand, plug the wiring harness connector into the terminal located at the top of the freezer panel. Make sure that the connection is tight. Make sure that the wiring harness is still in the hook on the back of ice maker.
  • Page 10 Adjust the leveling bracket to level the ice maker. The ice maker is level when the gap between the freezer wall and the ice maker is the same at the top and bottom. Ice maker Screws Leveling bracket With the ice maker level, insert the third ice maker mounting screw at the bottom of the ice maker and tighten.
  • Page 11 Ice Maker Locate the pre-punched holes at the bottom right corner of the back panel of the refrigerator. Align the water valve bracket with the factory drilled holes, then use a Phillips head screwdriver to drive the two self-drilling screws through the bracket and into the cabinet.
  • Page 12 Grasp the other end of the plastic tube and push it firmly into the quick-connection on the valve until it bottoms out. Water valve Plastic water supply tubing Clean the back of the cabinet with a commercial household cleaner, ammonia, or alcohol before applying the clamps.

  • Page 13: Installing The Ice Maker In A Bottom Mount Freezer

    Ice Maker Installing the ice maker in a bottom mount freezer Unplug the refrigerator from the wall outlet. Remove the drawers from the freezer compartment. Remove the small screws on both sides of the guide rail of the freezer compartment door, then remove the freezer compartment door, with the guide rail support, from the guide rail.
  • Page 14 Remove the terminal cover from the upper left corner of the freezer compartment, then remove the ice maker mounting screws from the accessory bag and attach them loosely to the two mounting holes in the back of the freezer compartment. Mounting Terminal screws...
  • Page 15 Ice Maker Reinstall the freezer door guide rail and replace the freezer drawers, then place the ice storage bin in the top freezer drawer. Wire signal arm Ice storage bin Freezer drawer Limit rib Peel the label off the water hole on the back of your refrigerator. Label www.insigniaproducts.com...
  • Page 16 Use needle nose pliers to remove the thermal insulation foam strip from the hole you just exposed. Thermal insulation Remove the water tube connector, silicone seal, long water supply tube, and white head screw from the accessory bag, then assemble the parts by aligning the notch on the silicone seal with the notch on the water tube connector, inserting one end of the water supply tube into the quick change sealing ring at the bottom of the connector.
  • Page 17 Ice Maker Locate the pre-punched holes at the bottom right corner of the back panel of the refrigerator. Align the water valve bracket with the factory drilled holes, then use a Phillips head screwdriver to drive the two self-drilling screws through the bracket and into the cabinet.
  • Page 18 Grasp the other end of the plastic tube and push it firmly into the quick-connection on the valve until it bottoms out. Water valve Plastic water supply tubing Secure the plastic water supply tubing to the back of the cabinet with three plastic clamps.

  • Page 19: Connecting The Ice Maker To The Water Supply

    Ice Maker Connecting the ice maker to the water supply Before you begin, please note: • This water line installation is not warranted by the refrigerator or ice maker manufacturer. • Follow these instructions carefully to minimize the risk of water damage. •...
  • Page 20 Tighten the compression nut securely. For plastic tubing, insert the molded end of the tubing into the valve and tighten the compression nut until it is hand-tight, then tighten one additional turn with a wrench. Over-tightening may cause leaks. Place the end of the water supply line into a sink or bucket and flush the water supply line with water until the water runs clear.

  • Page 21: Tips For Using Your Automatic Ice Maker

    Ice Maker Reconnect the refrigerator to the electric wall outlet. To turn on the ice maker, lower the wire signal arm. Important: It takes approximately 24 hours for the ice maker to begin producing usable ice. Air in new plumbing lines may cause the ice maker to cycle two or three times before making a full tray of ice.

  • Page 22: Troubleshooting

    Troubleshooting CAUTION: Do not try to repair your ice maker yourself. Doing so invalidates the warranty. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The ice maker The freezer Make sure that the freezer temperature is makes no ice temperature is too low enough to make ice. high.

  • Page 23: Specifications

    Ice Maker PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The ice smells The ice storage bin or Empty and wash the ice storage bin and funny or tastes freezer needs discard the old ice cubes. Wash the cleaning. interior of the freezer. Remove any old food.

  • Page 24: One-Year Limited Warranty

    Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 25 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults”...
  • Page 26 1-877-467-4289 (U.S. and Canada) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V3 ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A. 23-0254 ©2023 Best Buy. All rights reserved.
