Getting Started

Introduction

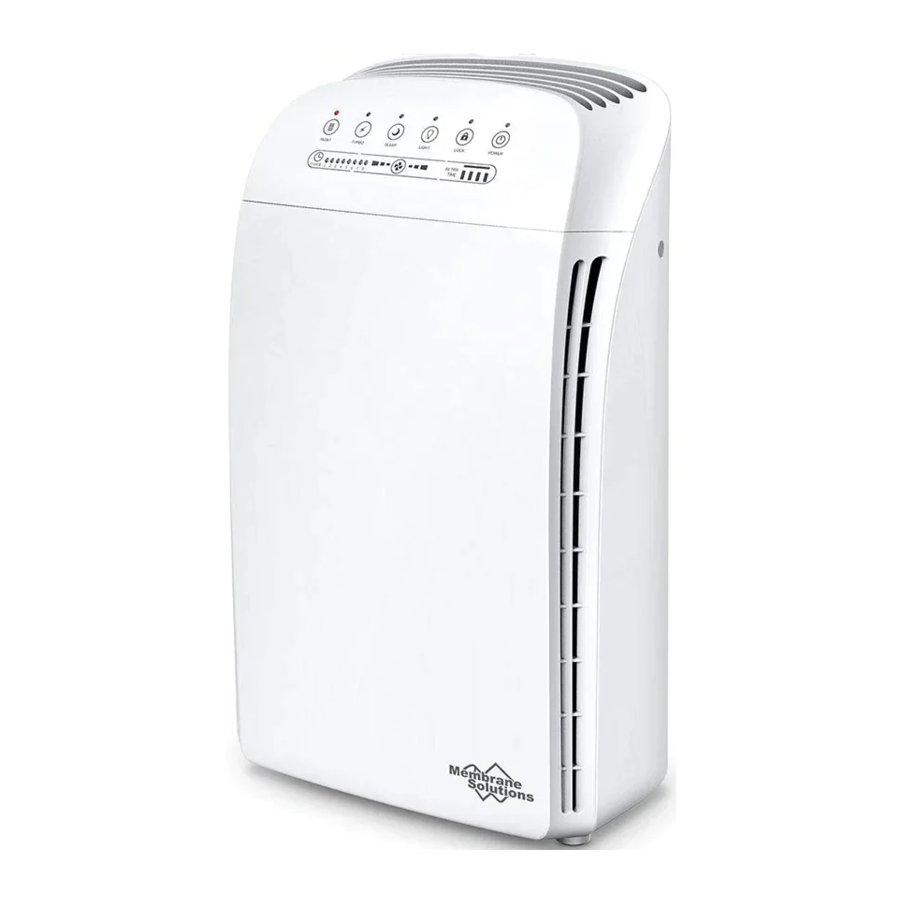

Thank you for purchasing the Membrane Solutions^® MSA3 Air Purifier, delivering clean and healthy air for you and your home or office. Please contact us for the latest product information, including operator manuals, videos, support materials, and where to purchase items.

The MSA3 is a durable piece of equipment, with proper care it will last for many years. This owner's handbook outlines the installation, operation, and maintenance requirements to sustain perfect product performance.

The MSA3 features quadruple filtration; Primary filter, H11 High-Efficiency Particulate Air Filter (HEPA) and Activated Carbon, capturing>99.97% of particles with a diameter greater than or equal to 0.3 microns.

The MSA3 can filter out impurities and particles in the air; such as viruses, mold, dust, allergens, pollen, bacteria, dust mites, cigarette smoke, pet dander, off-odors and unhealthy vapors.

Health & safety

Membrane Solutions^® products are designed with safety in mind. However, personnel using this device must be familiar with any potential dangers. All safety information detailed in this handbook should be reviewed before installing and operating this air purifier.

warning This product is not a toy; children must be supervised when using the device. Keep packing materials out of children's reach.

warning The system has been designed for indoor use only. Install the air purifier out of direct sunlight on a lat, level dry, and secure surface with average ambient room temperature.

warning Do not touch the power plug with wet hands. Do not use if plug and/or power cord is damaged or the product is not working.

warning Do not use the device in a place with heavy moisture or smoke. Please keep the device away from flammable gas appliances such as heaters or fireplaces.

warning Clean the device and remove any dust from the power plug regularly. Unplug the unit when cleaning, do not use strong corrosive detergents of chemicals as they may damage the surface of the device.

warning Do not obstruct the air inlets or outlets on the device. Do not wash or reuse the composite ilter – Replace it with a new ilter.

are provided; Failing to observe these instructions could result in damage to the equipment, associated parts, surroundings, or personal injury.

Operating Guidelines

The following table lists the operating parameters for this product. Operating this product outside these speciications may cause system performance issues and may even lead to personal injury and void any warranty. Please contact Membrane Solutions^® for further advice and support.

Operating Parameters
Model	Membrane Solutions^® MSA3
Rated Voltage	120 V ~ 60 Hz
Rated Power	56 Watts
Clean air delivery rate (CADR)	118 CFM (200 m³/h)
Noise level	60 dB (A)
Dimensions	7.7 x 13.1 x 21.5 Inches (195 x 334 x 545 mm)
Operational weight	13.7 Ib (6.2 kg)
Filter Element type	A single composite ilter element
Temperature & Humidity	Operating: 32-104℉ (0-40℃) 20-90% Storage: 14-140℉ (-10-60℃) 20-90%

The above performance index data is obtained in a third-party laboratory according to the international ANSI/AHAM AC-1-2006, with specific smoke particles or gaseous pollutants as the target pollutants.

Installation guide

System Contents

Your Membrane Solutions^®MSA3 Air Purifier was carefully assembled, packaged, and shipped complete with all the parts you should require.

Unsure about something? Is there a problem?
Please contact Membrane Solutions^® through our website or toll-free number.

Commissioning the system

Step 1

Before using the air purifier for the first time, open the rear cover and remove the composite filter. Make sure to remove any packaging from the filter element, or the product will not function correctly.

Step 2

Plug the air purifier power plug into an electrical outlet
The purifier should now be in standby mode

Step 3

Push the power button once to turn the air purifier on
The purifier should now be in operating mode

Operating Guide

Control Panel

Power Button

Press the Power button to put air purifier into operating mode.
Press the power button a second time to stop the air purifier and place it into standby mode.

Fan Speed

Press Fan button repeatedly to cycle through the different speed settings.

Sleep – Low speed
2 – Medium speed
3 – High Speed

The corresponding fan speed indicator light will display the current fan speed.

Lock

To lock the system, press and hold the lock button for 3 seconds until the lock display is illuminated.
To unlock the system, press and hold the lock button until the indicator light turns off.

Sleep mode

Press the sleep button to put the unit into Sleep Mode. In this mode the fan is at its lowest/quietest setting. Also, only the Sleep and Power buttons are illuminated to help keep the room dark.

Timer

Press the timer button to set timed auto off feature. Unit can be set run between 1 and 8 hours. Continue to press the timer button to cycle through the preselected times. The corresponding duration will be represented by the number of indicator lights illuminated.

Light

To turn off all the unit's lights, press the light button. Only the light button will remain illuminated for easy identification at night.

Turbo mode

Press the Turbo button to set the unit at its highest fan setting. The Turbo indicators light will be illuminated.

Filter Reset

When the total run hours of the air purifier reach 2000 hours, the indicator will lash to indicate the filter needs to be replaced. After the replacement is completed, press and hold the filter button for 3 seconds until the indicator light is off, the filter timer function is now reset.

Filter Replacement

Step 1

Press the power button to turn the air purifier off, unplug the power cord from the electrical outlet.
Remove the rear cover of the air purifier and remove the exhausted composite filter element.

Step 2

Clean out any remaining dust, dirt, or lint inside the purifier using a vacuum hose or dry cloth.
DO NOT use water or liquids to clean the purifier.

Step 3

Remove any packing from the new filter element and take notice of the inward and outward sides of the filter element.
Refer to the new filter instructions for the direction of airflow.

Step 4

Place the new filter into the air purifier making sure it is facing the correct direction. Airflow travels from outside to the center of the unit. Reinstall the rear cover
After replacing the filter, plug the power cord back into an electrical outlet, then hold down the filter button for 3 seconds to reset the filter timer, the indicator light will lash 3 times then go out, showing the reset was successful.

Actual lifespan of the filter may vary depending on the amount of dust, smoke, humidity, and the concentration of other airborne particles and vapors in the air.

Replacement Filter Part Number

Part No.	Description
HERAPF008_M	Single composite filter element

Please contact our customer service for purchase options:
Customer Service: service@membrane-solutions.com
Toll-Free Phone: 1-866-528-4572

Troubleshooting Guide

	Problem	Possible Solution
1	The air purifier will not turn on or respond to the power button	Confirm that unit is plugged into a powered outlet.
2	Airflow is significantly reduced	Make sure the filter has the packaging removed.
		Press the fan button to increase fan speed.
		The filter may be blocked, replace the air filter.
3	Air Purifier makes unusual noise while the fan is on	Make sure the air purifier is being operated on a firm level surface.
		The filter may be blocked, replace the air filter.
		The air purifier may be damaged, contacted customer support.
4	Unpleasant or musty smell coming from the purifier	Do not use in a damp or wet environment. If air filter becomes damp, replace filters and move air purifier unit to a dry area.
4	Unpleasant or musty smell coming from the purifier	The carbon component of the filter may be exhausted, replace air filter.
5	Poor air purification quality	Press the fan button to increase fan speed.
		Close doors and windows while using the air purifier.
		Make sure the filter has the packaging removed.
		Replace filter
6	The filter indicator light is on	The air filter is 100% exhausted and requires replacement
7	Only the sleep indicator light is on, yet the purifier is still operating.	The air purifier is in sleep mode, push the fan speed button to change the operating mode, indicator lights will turn on again.
8	If your problem is not listed	Please contact Membrane Solutions ^® Customer Service
