Audio Connection
The ViewBoard supports Audio In, Audio Out, and SPDIF.

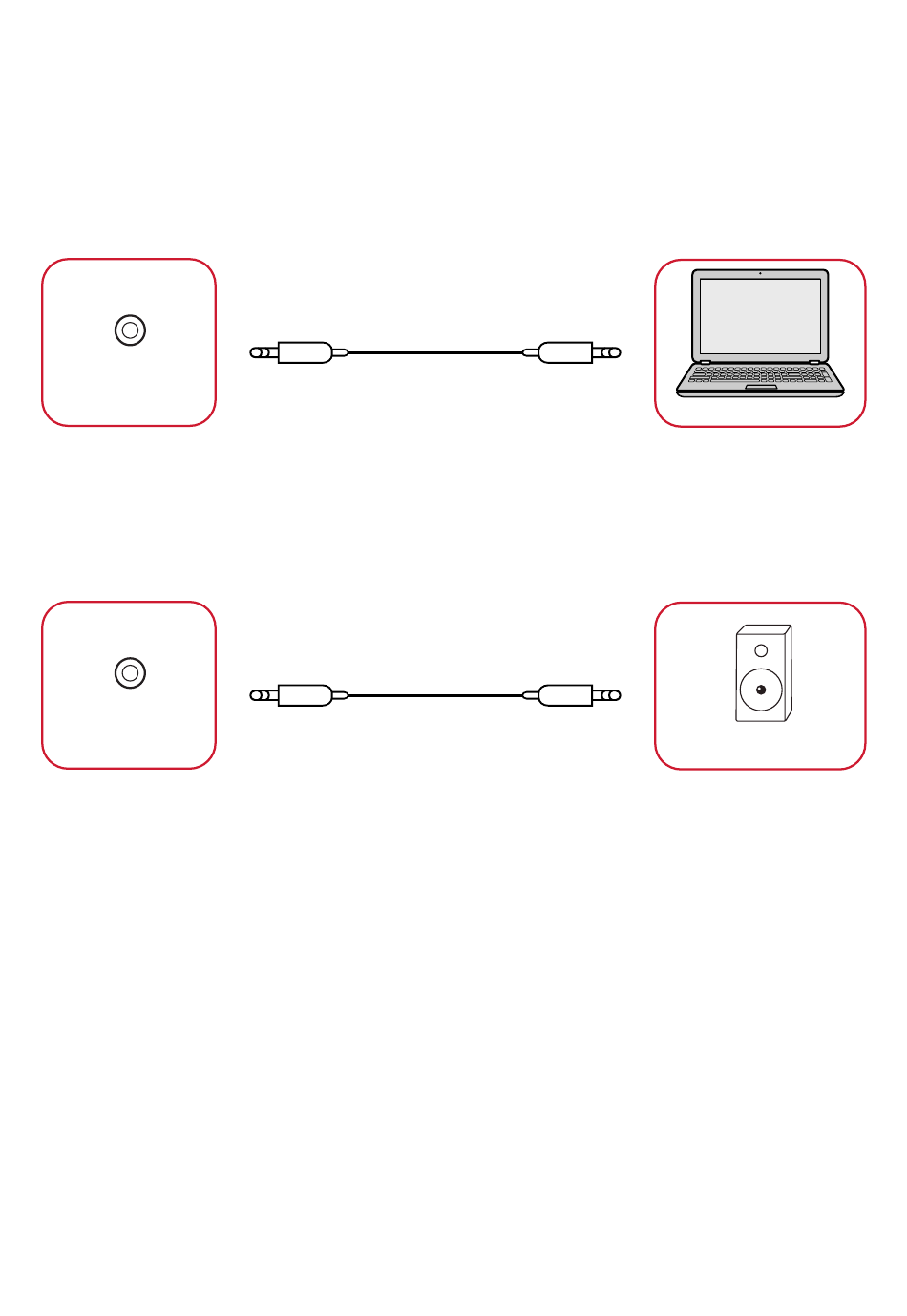

Audio In
To play audio from your external device through the ViewBoard's speakers,
connect one end of an audio cable to your external device, and the other end to
the ViewBoard's AUDIO IN port.
AUDIO IN
Audio Out
AUDIO IN
To play audio from the ViewBoard through an external speaker, connect one end
of an audio cable to the external speaker, and the other end to the ViewBoard's
AUDIO OUT port.
AUDIO OUT
AUDIO OUT
Audio Cable
Audio Cable
Audio Cable
Audio Cable
29
Computer
Computer
Speaker
Speaker
