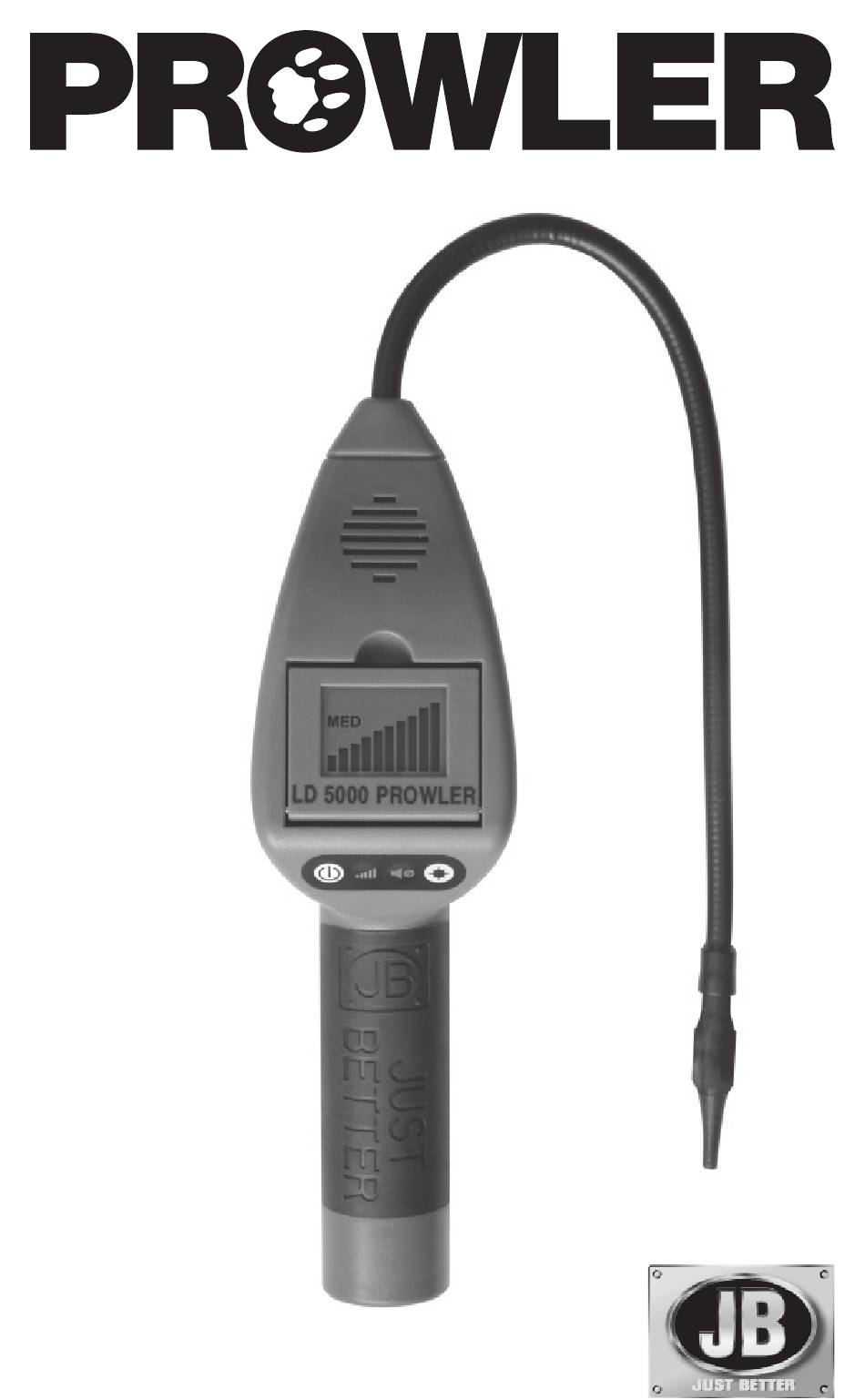

- Page 1 LD 5000 REFERIGERANT LEAK DETECTOR JB INDUSTRIES INC.
-
Page 2: Product Overview
PRODUCT OVERVIEW JB Industries is proud to unveil the new, revolutionary LD 5000 PROWLER refrigerant gas leak detector. Using our new proprietary JBI Electrochemi- cal sensor technology for unparalleled accuracy coupled with the unique user features, there simply is no better hand held probe type service leak detector system on the market. -
Page 3: How To Operate
NEED A PICTURE of Control Panel POWER ON/OFF SENSITIVITY MUTE BUTTON BACKLIGHT BUTTON LEVEL HOW TO OPERATE 1) TURN ON: Press the ON/OFF button once to turn on and again to turn off. NOTE: Hold button down for approximately 1 second to turn unit off. 2) WARM UP: The detector automatically energizes the sensor condi- tioning it for use. -
Page 4: Leak Size Indicator
LEAK SIZE INDICATOR The digital leak size indicating LCD graph display remains off normally but once a leak is detected, a number of indicating bars (up to 10 bars with increasing height) will be displayed for all HFC and HCFC refrigerants regardless of the sensitivity setting. -
Page 5: Leak Test Vial
BACKLIGHT To turn on the LCD display backlight, press the Backlight button once. Press again to turn off. LEAK TEST VIAL The PROWLER comes with a Leak Test Vial that allows the user to make sure the detector is performing properly. To test: 1) Remove the plastic seal label on top of the Leak Test Vial by pulling it off (see fi... -
Page 6: Cross Sensitivity To Automotive Chemicals
Sensor: Replace Filter: Unscrew sensor tip as shown to replace fi lter. Replace fi lter whenever it becomes visibly dirty or every 2 to 3 months depending on use. Replace Sensor: Remove sensor by pulling out of socket. Install the new sensor by aligning the notch in sensor cover with the raised keyway on the sensor socket holder.(see fi... - Page 7 PROWLER SPECIFICATIONS Model #: LD 5000 Name: PROWLER Leak Detector, Refrigerant Gas Sensitivity: 0.025 oz/yr R-22, 0.05 oz/yr R-134a, 0.0125 oz/yr R-1234yf, 0.05 oz/yr R-410A, 0.05 oz/yr R-404A, 0.05 oz/yr R-407A, 0.05 oz/yr R-427A Sensor Life: > 10 years (normal use) Response Time: Instantaneous Power Supply:...
-
Page 8: Replacement Parts
RGA # and include all necessary documentation. For units out of war- ranty, the user is asked to call customer service directly at 800-323-0811 to determine estimates for repair. JB INDUSTRIES PO Box 1180 Aurora, IL 60507 800-323-0811 email: sales@jbind.com www.jbind.com © COPYRIGHT 2011 JB INDUSTRIES INC.
