JB INDUSTRIES PROWLER LD-5000 Manual

Refrigerant leak detector
Hide thumbs Also See for PROWLER LD-5000:
Table of Contents

Advertisement

Quick Links

Download this manual

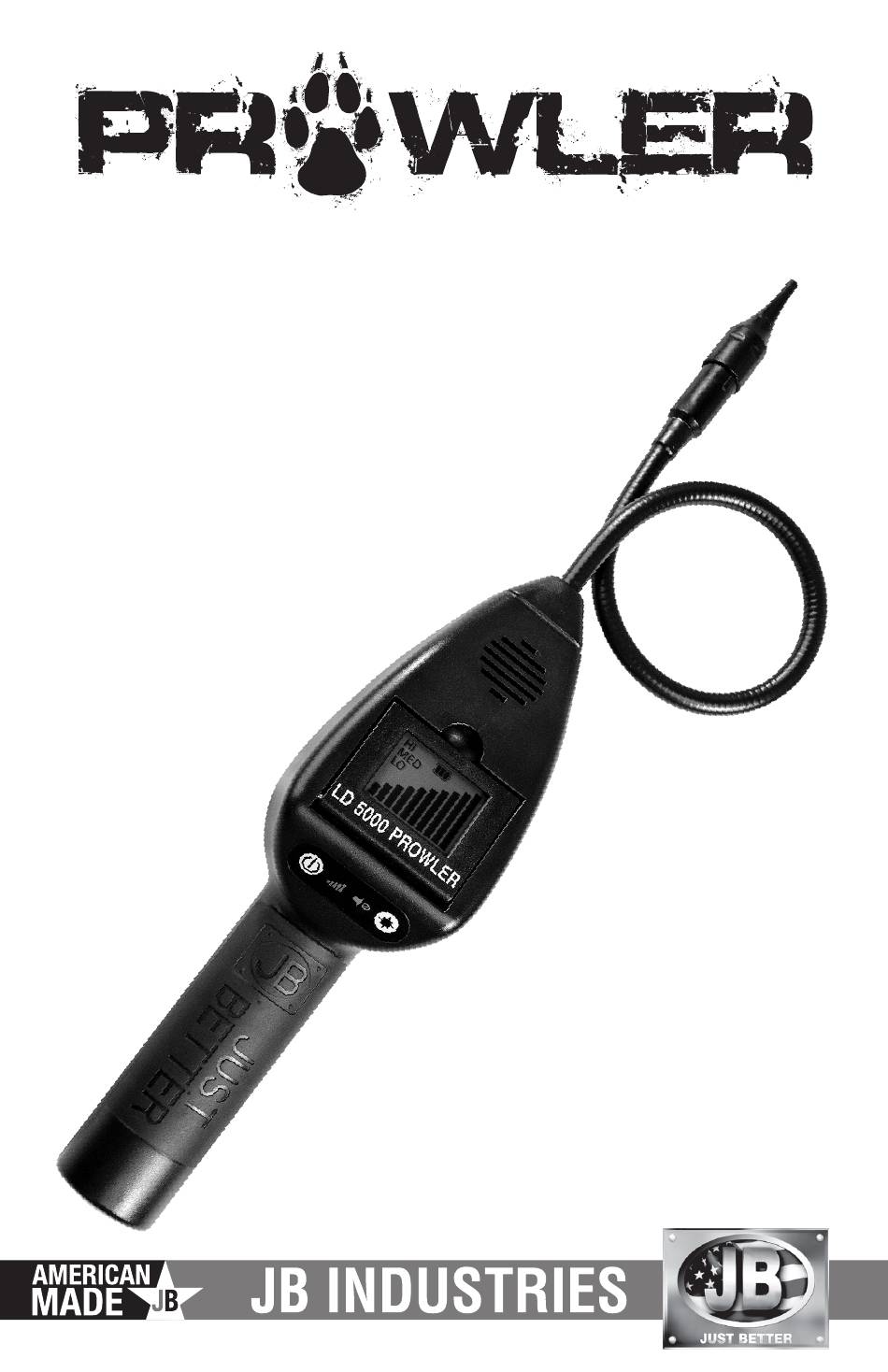

LD-5000 REFRIGERANT LEAK DETECTOR
www.jbind.com
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROWLER LD-5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JB INDUSTRIES PROWLER LD-5000

Summary of Contents for JB INDUSTRIES PROWLER LD-5000

  • Page 1 LD-5000 REFRIGERANT LEAK DETECTOR www.jbind.com...

  • Page 2: Product Overview

    PRODUCT OVERVIEW JB Industries is proud to unveil the new, revolutionary LD-5000 PROWLER refrigerant gas leak detector. Using our new proprietary JB Industries Electrochemical sensor technology for unparalleled accuracy coupled with the unique user features, there simply is no better hand held probe type service leak detector system on the market.

  • Page 3: How To Operate

    POWER ON/OFF SENSITIVITY MUTE BUTTON BACKLIGHT BUTTON LEVEL HOW TO OPERATE TURN ON: Press the ON/OFF button once to turn on and again to turn off. NOTE: Hold button down for approximately 1 second to turn unit off. WARM UP: The detector automatically energizes the sensor conditioning it for use.

  • Page 4: Adjusting Sensitivity Levels

    LEAK SIZE INDICATOR The digital leak size indicating LCD graph display remains off normally but once a leak is detected, a number of indicating bars (up to 10 bars with increasing height) will be displayed for all HFC and HCFC refrigerants regardless of the sensitivity setting. The LCD display angle can be adjusted for ease of viewing when referring to the display for leak size.

  • Page 5: Manual Calibration Mode

    MANUAL CALIBRATION MODE: This mode may be useful when more control over the calibration is required such as in heavily contaminated areas but may also be helpful when searching for smaller leaks. In this mode the detector recalibrates to ambient levels, but only when the user chooses to do so.

  • Page 6: Maintenance

    MAINTENANCE BATTERIES: Install Batteries: Remove screw located at the center area of the bottom housing and remove battery door as shown. Always insert all four batteries into the battery compartment in the same direction. NOTE: polarity mark on the inside of the battery compartment for proper battery orientation. SENSOR: Replace Filter: Unscrew sensor tip as shown to replace filter.

  • Page 7: Cross Sensitivity To Automotive Chemicals

    CROSS SENSITIVITY TO AUTOMOTIVE CHEMICALS Some automotive solvents and chemicals have similar hydrocarbon properties as R-134a and may elicit a positive response (<30 seconds) from the PROWLER. Before leak checking, clean up any of the following chemicals that elicit a positive response: •...

  • Page 8: Replacement Parts

    Carrying case WARRANTY The PROWLER LD-5000 Refrigerant Gas Leak Detector is warranted to be free of defects in materials and workmanship for a period of two years from the date of purchase. This warranty applies to all repairable instruments that have not been tampered with or damaged through improper use including unauthorized opening of the unit.
