Kenmore FeatherLite DU1099 Use & Care Manual page 21

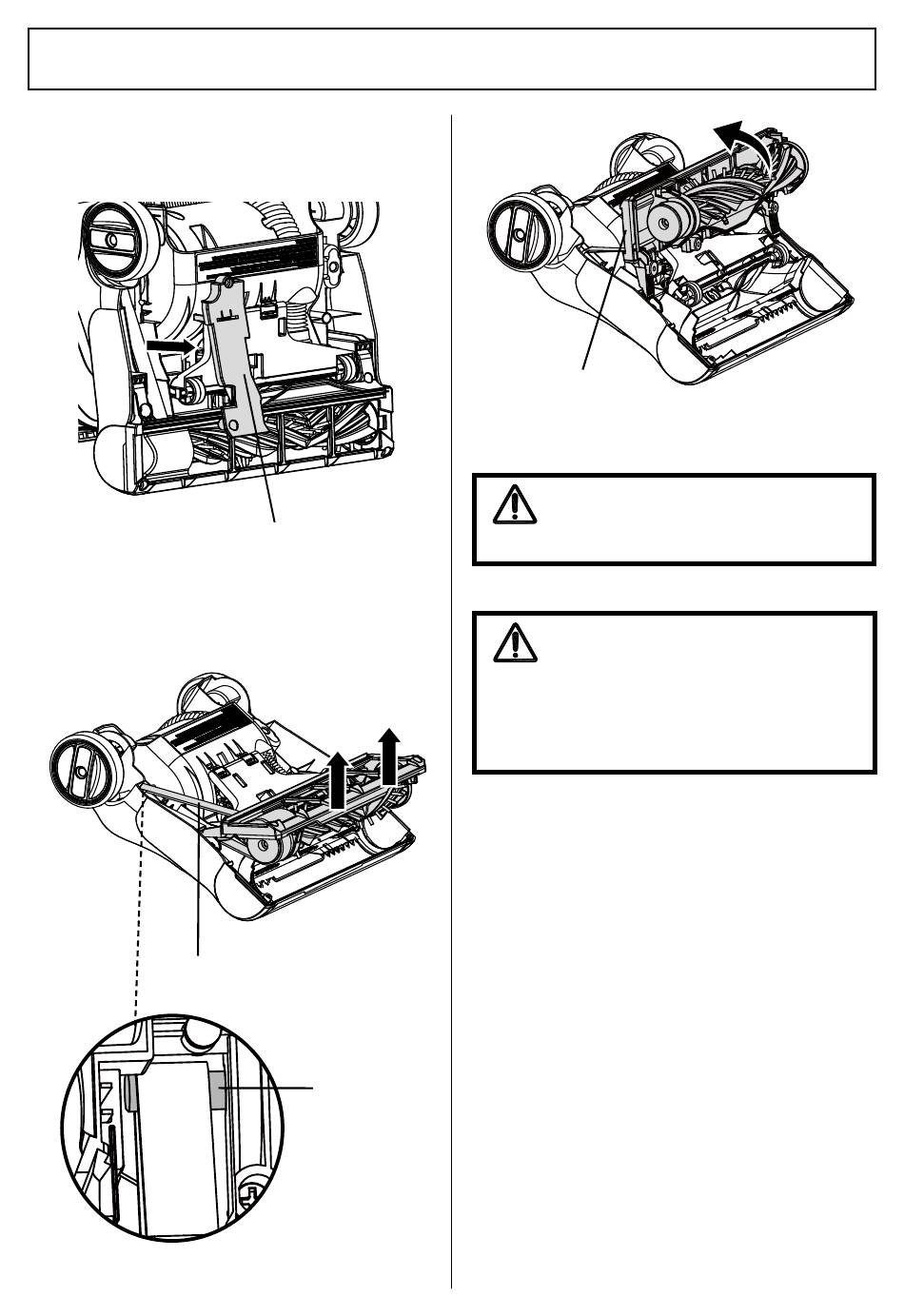

3. Remove the belt cover from the floor
nozzle.
4. Lift the lower plate combined with the
brushroll.
Belt
BELT CHANGING
Belt Cover
I
Motor Shaft
Lower Plate
with Brushroll
CAUTION
Motor shaft may be hot.
WARNING
There are sharp edges inside to prevent
hair entanglement. Do not put any part
of the body into the floor brush during
maintenance.
5. Remove the worn or broken belt.
6. Clean any debris from the floor nozzle.
7. Loop the new belt around the motor
shaft and the belt path on the brushroll.
NOTE:
Before reinstalling the lower
plate, make sure the belt is in the middle
of the belt path as shown.
- 21 -
