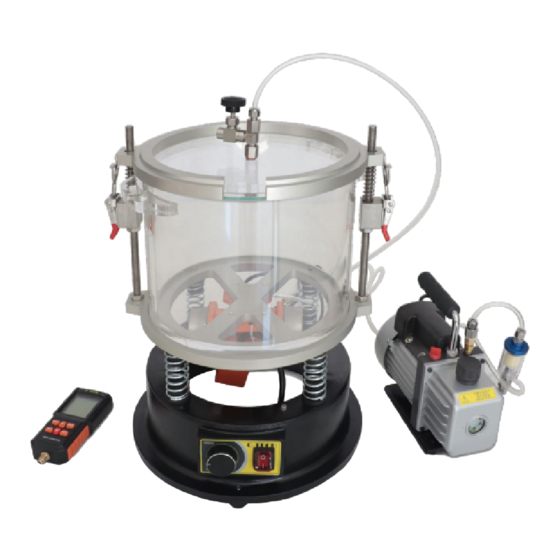

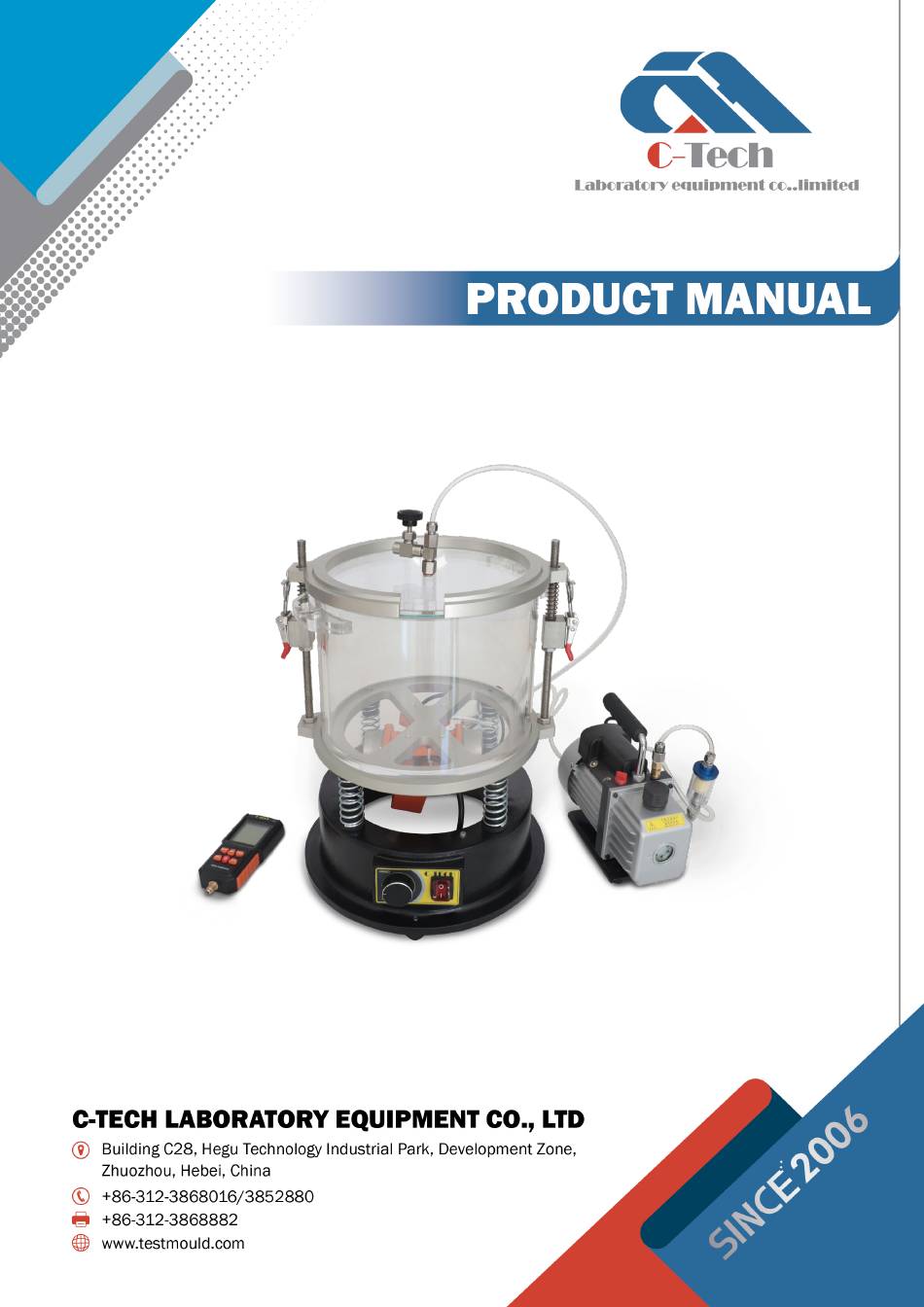

- Page 1 LARGE-CAPACITY VACUUM PYCNOMETER SET H1820...
-
Page 2: Table Of Contents
CONTENTS Description ..............................1 Technical specifications ..........................1 III. Operation .................................1 IV. Matters need attention ..........................2 Digital vacuum gauge .............................3... -
Page 3: Description
I. Description This instrument is suitable for measuring the theoretical maximum relative density of asphalt mixture by vacuum method. It is used for asphalt mixture ratio design, road investigation or road construction quality management to calculate void ratio and compaction degree. Not suitable for asphalt mixtures with porous aggregates with water absorption greater than 3%. -
Page 4: Matters Need Attention
restore the pressure in the container to atmospheric pressure (no more than 8KPa per second). IV. Matters need attention ①. The instrument is equipped with an air drying device to ensure that the gas entering the vacuum pump is dry gas. If it is found that water is drawn into the pipeline due to wrong operation, the back cover of the box should be opened, and the drying device should be opened for drying. -
Page 5: Digital Vacuum Gauge
during use, it should be replaced with new oil in time to avoid affecting the vacuum degree or unable to operate. It is best to use vacuum pump oil, or mechanical oil above No. 20. Before replacing the new oil, it should be turned on for 15-30 minutes to thin the oil. After stopping the pump, unscrew the oil drain screw and drain all the dirty oil in the pump. - Page 6 5,000microns (10,000-20,000microns) Set value of the alarming threshold Unit Set point Resolution mbar 0-9999 0.01 0-9.99999 Structure LED Screen Unit Switch ON/OFF ℃/℉ Switch DIF Mode Max/Min Data Mode Hold Data Operation guidance Press the to turn on the device, and press again the power button to choose turn on or off ...
- Page 7 Press the “UNITS” to choose the needed pressure unit. Press the “Max” to switch between the maximum and the minimum pressure. “DIF” is identical with “SET”. Press “DIF” for some time accompanied by ℃/℉ and “MAX” to designate the alarming value of vacuum pressure, and confirm by pressing “HOLD”.
- Page 8 switch the calibration mode. The upper row of digit shows 1 or 2 or 3 or 4, and short press the “Units” to exit the calibration mode 1. Atmospheric correction: showing CAL-1 means snort pressing the “HOLD”, and at this time the show of the lower row of Nixie tube shifts from empty to sequentially lit --, and returns to the normal mode.
- Page 9 The following items are not covered by the warranty: Man-made faults are not covered by the warranty. - 7 -...
- Page 10 - 8 -...
