Configuration guide Mechanical PTZ configuration on the AXIS Q16 cameras

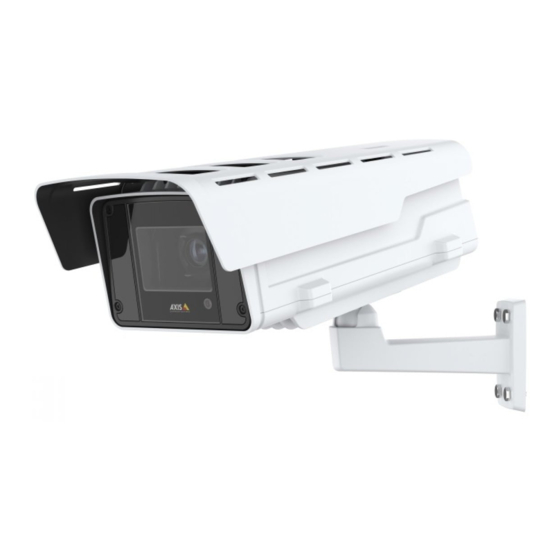

Mechanical PTZ configuration on the
AXIS Q164x/-LE and Q1615/-LE Mk III
cameras
This document shows how to configure above AXIS Q16 Series cameras to control
primarily a PT head and optionally a zoom lens.
Configuration steps

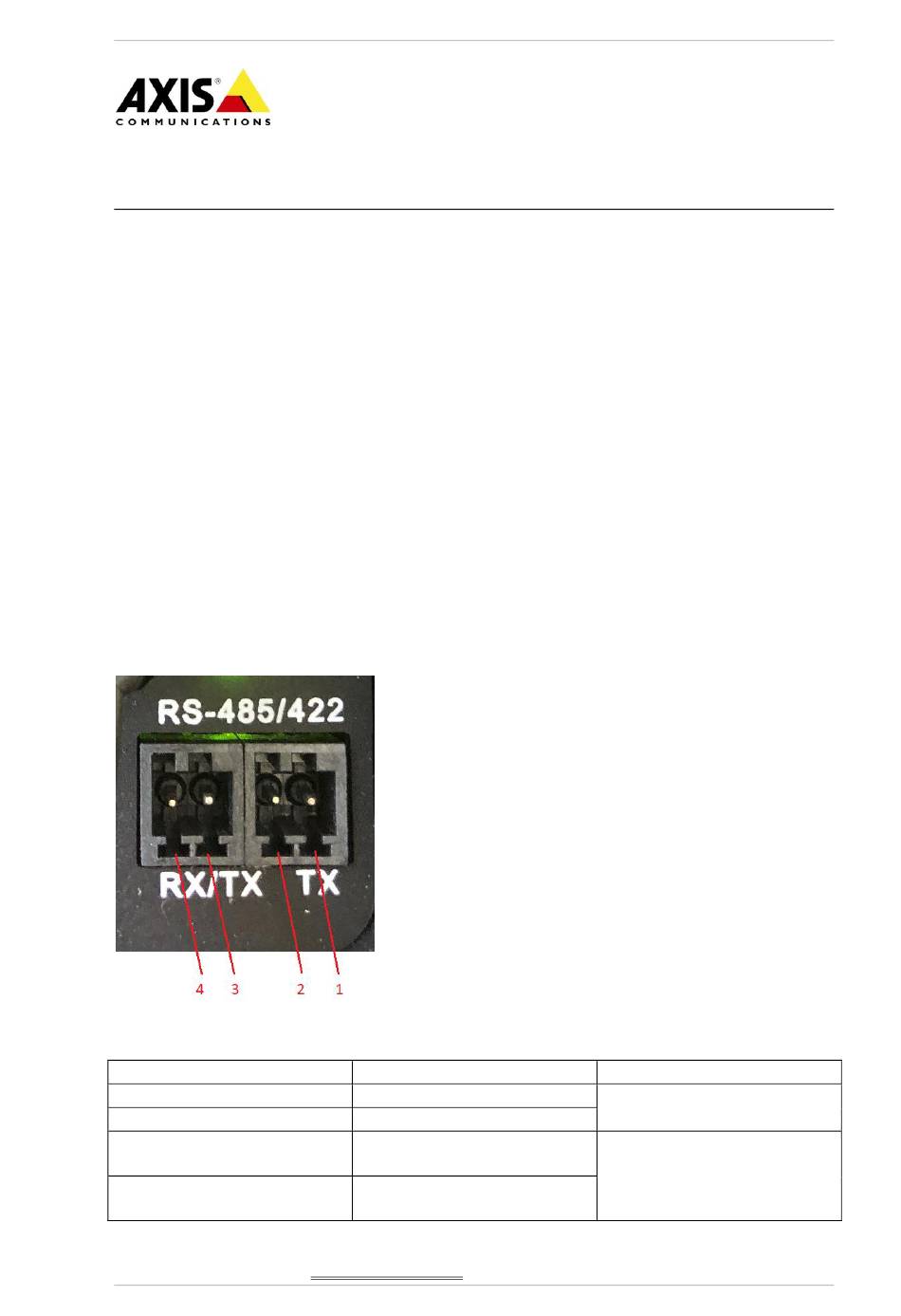

Follow the below configuration steps after connecting the PT head to RS-485/RS-422 serial port
of the camera. Connection schemes are available for the particular PT head on driver support
pages. General pin assignment is as follows:
Function
RS-485/RS-422 Tx (A)
RS-485/RS-422 Tx (B)
RS-485A alt. RS-485/RS-422
Rx (A)
RS-485B alt. RS-485/RS-422
Rx (B)
Rev: 1.2, Last updated: September 18, 2020
Pin
1
(Tx+)
2
(Tx-)
3
(Rx+/Tx+ alt Rx+).
4
(Rx-/Tx- alt. Rx-)
Configuration guide
Notes
Tx pair for RS422 and 4-wire
RS-485
Rx
pair
for
(combined Rx/Tx for 2-wire
RS-485)
1
all
modes
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axis Q164/-LE Series
Summary of Contents for Axis Q164/-LE Series
- Page 1 Mechanical PTZ configuration on the AXIS Q164x/-LE and Q1615/-LE Mk III cameras This document shows how to configure above AXIS Q16 Series cameras to control primarily a PT head and optionally a zoom lens. Configuration steps Follow the below configuration steps after connecting the PT head to RS-485/RS-422 serial port of the camera.
- Page 2 Note that Pelco D driver is pre-installed on the camera. For availability of other drivers than those on site, contact Axis Support via Online helpdesk. Rev: 1.2, Last updated: September 18, 2020...
- Page 3 Configuration guide Mechanical PTZ configuration on the AXIS Q16 cameras Upload the driver and Activate mechanical PTZ Upload the PTZ driver and Activate PTZ by going to Settings > System > Accessories Rev: 1.2, Last updated: September 18, 2020...
- Page 4 Configuration guide Mechanical PTZ configuration on the AXIS Q16 cameras Adjust COM port settings (Optional) Adjust COM port settings if needed to agree with the settings of the device connected to the camera under Settings > System > Plain Config > Serial:...
- Page 5 Configuration guide Mechanical PTZ configuration on the AXIS Q16 cameras Enable zoom etc. (Optional) Go to Settings > System > Plain Config > PTZ, scroll down to the bottom and enable Zoom in case for example of controlling a zoom lens...
