Ekinex EK-BF1-TP-D1 Applications Manual

Knx/dali gateways
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

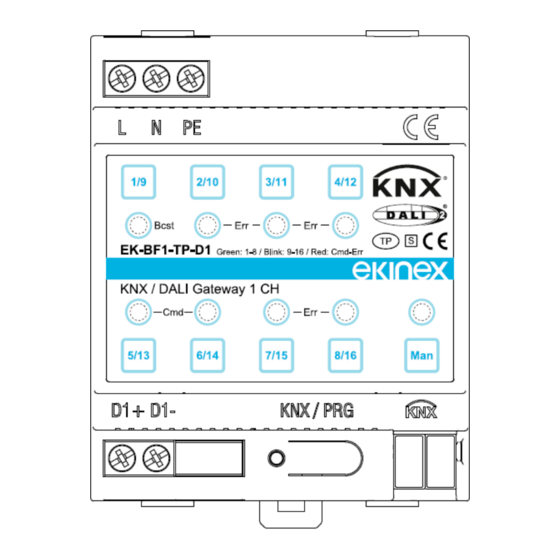

Application manual
KNX/DALI gateways
EK-BF1-TP-D1/D2
and DCA App

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-BF1-TP-D1 and is the answer not in the manual?

Questions and answers

Related Manuals for Ekinex EK-BF1-TP-D1

Summary of Contents for Ekinex EK-BF1-TP-D1

  • Page 1 Application manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App...

  • Page 2: Table Of Contents

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Contents Revision history .......................... 4 Using the application program ....................5 General Product information ...................... 5 DALI Bus system properties ....................5 EK-BF1-TP-D1/D2 product overview..................6 EK-BF1-TP-D1/D2 product features ..................6 Improvements to the previous firmware 0.2.x ............... 8 3.4.1...
  • Page 3 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 9.4.1 Objects for colour control ..................... 35 9.4.1.1 Colour temperature 9.4.1.2 RGB (DPT 232.600) 9.4.1.3 RGB (separate objects) 9.4.1.4 9.4.1.5 RGBW (DPT 251.600) 9.4.1.6 RGBW (separate objects) 9.4.1.7 HSVW (separate objects) 9.4.1.8 XY (DPT 242.600)

  • Page 4: Revision History

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 13.5 Testing the whole scene ...................... 91 13.6 Export/Import/Delete ......................92 Time Control ..........................93 14.1 Configuration ........................93 14.2 Action types ......................... 95 14.3 Disabling/Enabling ....................... 98 14.4 Manual Override ........................99 14.5 Timer ............................

  • Page 5: Using The Application Program

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Using the application program The application description is valid for firmware version 0.3.0 and higher. Product family: Lighting Product type: Gateway Manufacturer: Ekinex S.p.A.  1 Channel Device: Name: EK-BF1-TP-D1_V1.0.0 Order no.: EK-BF1-TP-D1 DALI2 1CH...

  • Page 6: Ek-Bf1-Tp-D1/D2 Product Overview

    EK-BF1-TP-D1/D2 product features The Ekinex KNX/DALI gateway EK-BF1-TP-D1/D2 is a device used to control ECGs with a DALI interface via the KNX installation bus. The device transforms switch and dim commands from the connected KNX system into DALI telegrams and status information from the DALI bus into KNX telegrams.
  • Page 7 DALI-2 certified and listed in the corresponding database of DiiA. The device comes in a 4 units wide DIN Rail casing so it can be directly integrated into the mains distribution box. In addition to the pure gateway function, the EK-BF1-TP-D1/D2 offers numerous additional features: ...

  • Page 8: Improvements To The Previous Firmware 0.2.X

    App) for the ETS5. Please remember to install the corresponding ETS App in addition to the product database KNXprod. The ETS App is available for download on the Ekinex website or from KNX website. Improvements to the previous firmware 0.2.x Firmware 0.3.0 also introduces a new ETS application and a new DCA.

  • Page 9: Manual Override In Schedules

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 3.4.6 Manual override in schedules An automatic schedule can be manually overridden for certain requirements. More information can be found in chapter 14.4 Manual Override Rev. 1.1 – 06/10/2023 MAEKBF1TPD1D2_EN © Ekinex S.p.A. – All rights reserved...

  • Page 10: Installation And Concept Of Commissioning

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Installation and Concept of Commissioning The Commissioning is separated in following steps: Overview After the wiring of the DALI segment according to the operating and installation instructions document, software start-up can begin.

  • Page 11: Ets-App (Dca)

    KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App ETS-App (DCA) The application for the EK-BF1-TP-D1/D2 is based on the standard interface for the configuration of communication objects and parameters as well as a special interface for configuring the DALI bus system. This special interface is designed as a DCA (Device Control App) for the ETS5. All required program data are automatically created when the App is imported.
  • Page 12 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App then follow the instructions at the link: https://support.knx.org/hc/en-us/articles/360019187920- How-to-force-an-ETS-App-uninstall Rev. 1.1 – 06/10/2023 MAEKBF1TPD1D2_EN © Ekinex S.p.A. – All rights reserved Pag. 12...

  • Page 13: Parameter Configuration

    This work can be carried out offline without connection to the KNX, or without connection to the EK-BF1-TP-D1/D2. The actual DALI commissioning is only possible online, that means a connection to the device is necessary. In this step, all connected ECGs are searched and found and can then be assigned to the preconfigured configuration.

  • Page 14: Devices For Colour Control (Dt-8)

    KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Devices for colour control (DT-8) The EK-BF1-TP-D1/D2 also supports ECGs for colour control (device type 8 according to EN 62386-209). Such devices allow for multi-channel colour control (RGB) and thereby enable the mixing of a light colour or the setting of a colour temperature via DALI.

  • Page 15: Colour Display Via Colour Temperature

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App In devices that support the XY coordinates method, the colour is set via two values between 0.0 and 1.0. However, because of the physical properties of an LED, even in an RGB LED module not every colour is practically possible.

  • Page 16: Manual Mode

    Manual mode 1 Channel Device (EK-BF1-TP-D1) The EK-BF1-TP-D1 has 9 operating buttons and LEDs on the front side, which offer numerous possibilities for manual control and broadcast and analysis functions. The buttons and LEDs are accessible without having to remove the cover. During KNX bus operation and in the absence of any errors, all 9 LEDs are switched off.
  • Page 17 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Manual mode level 1 LED on Man. button lights up permanently in green Use buttons 1/9 to 8/16 to switch DALI groups 1 to 8. The light value of the group changes from 100% (On) to 0% (Off) each time the button is pressed.

  • Page 18: Channels Device (Ek-Bf1-Tp-D2)

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 2 Channels Device (EK-BF1-TP-D2) The EK-BF1-TP-D2 has 9 operating buttons and LEDs on the front side, which offer numerous possibilities for manual control and broadcast and analysis functions. The buttons and LEDs are accessible without having to remove the cover. During KNX bus operation and in the absence of any errors, all 9 LEDs are switched off.
  • Page 19 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Manual mode level 1 (channel 1) LED on Man. button lights up permanently in green Use buttons 1/9 to 8/16 to switch DALI groups 1 to 8. The light value of the group changes from 100% (On) to 0% (Off) each time the button is pressed.
  • Page 20 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Manual mode level 5 (channel 2) LED on Man. button flashes blue Use buttons 1/9 to 8/16 to switch DALI groups 9 to 16. The light value of the group changes from 100% (On) to 0% (Off) each time the button is pressed.

  • Page 21: Operating Modes

    The control of each group and individual ECG is based on three communication objects (switching, dimming, value setting). ECGs can only be assigned to one DALI group. The EK-BF1-TP-D1/D2 does not support multi- group assignments on DALI level. If such assignment is required, please use KNX communication objects for this purpose.

  • Page 22: Panic Mode (Exceptional Case)

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Panic mode (exceptional case) The panic or emergency mode can be activated via a central object for the whole gateway. All ECGs/ groups that have been enabled for panic mode, permanently switch to a programmable panic light value on receipt of the object.

  • Page 23: Analysis And Service Functions

    Analysis and service functions Recording operating hours The EK-BF1-TP-D1/D2 allows for the operating hours (life time) of each group to be individually recorded. Internal recording is accurate to the second. The value is available externally in an hourly unit with the internal value in seconds always being rounded. (e.g. 7199 seconds  1 h, 7201 seconds ...

  • Page 24: Fault Analysis At Device Level

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Fault analysis at device level Error analysis objects similar to those at group level are also available at device level (i.e. for all ECGs connected to the gateway). The error rate or number of faulty ECG in the whole DALI segment can be made available via communication objects.

  • Page 25: Ets Communication Objects

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App ETS communication objects The EK-BF1-TP-D1/D2 communicates via the KNX bus based on a powerful communication stack. Note for the 2-channel device: All communication objects of the 1st channel are marked with the prefix D1- and those of the 2nd channel with the prefix D2-.
  • Page 26 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App For time-controlled sequencing, the current date and time are required. These need to be made available via the bus. Two objects are available for this purpose. Object name Function Type Flags Time...
  • Page 27 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Activates or deactivates the panic mode via the bus. Activate Night Mode Activate/Stop 1 Bit 1.010 Activates or deactivates the night mode via the bus. Scene invoke/ programm Scene No. 8 Bit 18.001...
  • Page 28 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App a simultaneous light error will no longer be detected or counted. Lamp Failure Exceeds Yes/No 1 Bit Threshold 1.005 This object is used to report that the total of all lamp failures recognised by the gateway exceeds the threshold set via parameters.
  • Page 29 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Sends the switch status of individual groups in the DALI segment when the system is started or when a change has taken place. Bit 0 - 15 show the status. Bit 16-31 show whether the information is valid.

  • Page 30: Objects For The Time Control Module

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Objects for the time control module For each of the up to 16 time program templates in the colour control module communication objects are available for activation/deactivation. Please see chapter /Enabling. These need Disabling to be enabled under time control in the DCA.

  • Page 31: Group Objects

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Object name Function Type Flags Energy Saving Object On / Off 1 Bit 1.001 With the appropriate assignment in the parameters, this object is switched off when associated groups or ECGs are switched off. This allows a separate power supply to be switched off. If the associated groups or ECGs are controlled again with a value >...
  • Page 32 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App The following objects are available (Example group 1): Object name Function Type Flags G1, Switching On/Off 1 Bit 1.001 This object is used to switch group 1 on or off. G1, Dimming...
  • Page 33 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Object name Function Type Flags This object is used to disable the operation of group 1:  Object = 0 Operation enabled  Object = 1 Operation disabled G1, Disable Staircase Yes/No 1 Bit 1.003...
  • Page 34 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Object name Function Type Flags Reports the total number of devices within a group as well as the error status according to type of error. The different Bits within the object have the following meaning:...

  • Page 35: Objects For Colour Control

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Object name Function Type Flags G1, Life Time Exceeded Yes/No 1 Bit 1.005 This object shows whether the maximum life span set in the parameters has been exceeded. Note: If the treshold has been exceeded, an alarm is issued via this object (by sending “1“). This status is resent for each further hour that is above the threshold.

  • Page 36: Rgb (Dpt 232.600)

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Object name Function Type Flags Colour Temperature Value 1 Byte relativ 5.001 Sets the relative colour temperature in the group between 0 and 100%. The value range 0 to 100% is automatically converted into the possible colour temperature range.

  • Page 37: Rgb (Separate Objects)

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 232.600 Sends the selected colour of the group as a status. 9.4.1.3 RGB (separate objects) Object name Function Type Flags G1, Colour (RGB) Red Value 1 Byte 5.001 Sets the colour of the group. The values for red (R) are transferred here.

  • Page 38: Hsv

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 5.001 Use this object to send the set colour blue as status of the group. 9.4.1.4 HSV The colour is set as an HSV value which consists of hue, saturation and value.

  • Page 39: Rgbw (Dpt 251.600)

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Object name Function Type Flags G1, Colour (HSV) Hue Value 1 Byte 5.003 Sets the colour as an HSV value. The hue values are transferred as values between 0° and 360°. Please note that only a resolution of approx.

  • Page 40: Rgbw (Separate Objects)

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Use this object to set the colour as RGBW within the group. The colour values for red, green, blue and white are entered in the upper Bytes ranging from 0 to 100%. 4 Bits in the lower Byte show whether the respective colour values are valid.

  • Page 41: Hsvw (Separate Objects)

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App G1, Colour (RGB) Fading Brighter/Cooler 4 Bit Green 3.007 See colour change red. G1, Colour (RGB) Fading Brighter/Cooler 4 Bit Blue 3.007 See colour change red. G1, Colour Fading White Brighter/Cooler 4 Bit 3.007...

  • Page 42: Xy (Dpt 242.600)

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 9.4.1.8 XY (DPT 242.600) Figure 7: XY-colour spectrum (Source: Wikipedia) The colour is identified through an XY value between 0 and 1.This value range is converted into a range from 0 to 65535 (2 Byte floating point) in the KNX. The value 65535 corresponds to value 1 in the diagram.

  • Page 43: Xy (Separate Objects)

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App This object is used to set the colour in the group via XY coordinates. In the upper 4 byte the X and Y- coordinates ranging from 0 to 65535 are defined. This is followed by the brightness level ranging from 0 to 100%.

  • Page 44: Ecg Objects

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Object name Function Type Flags G1, Colour Y Status 2 Byte 7.001 Sends the set Y value as status of the group. ECG objects 9.5.1 ECG objects behaviour A communication object is available for each of the up to 64 connected ECGs and corresponding lamps to display the failure status.

  • Page 45: Ecg Objects Analysis And Service

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Sends the ECG switch status. Each value >0% is interpreted as ON. ECG 1, Status Value 1 Byte 5.001 Sends the ECG value status. 9.5.2 ECG objects analysis and service Object Object name...
  • Page 46 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App This object is used to invoke or program scenes. Up to 16 scenes are available on the DALI gateway. To program a selected scene you need to set the top Bit: Start...

  • Page 47: Ets Parameters

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 10 ETS parameters The ETS parameters of the device are distributed across different parameter pages. To simplify the overview, only the parameter pages of the device selected in the function tree are displayed.
  • Page 48 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Parameter Settings Failure Status Send Condition Send on Request Send on Change Send on Change and after Busreset Sets the conditions under which the error status objects of the connected ECGs and groups are to be sent.
  • Page 49 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Configures a threshold value for the general failure alarm object (object 14). The threshold value takes all errors (ECG, lamp and converter errors) into consideration independent of the error type and relates them to the total number of connected ECGs and converters.

  • Page 50: Parameter Page: Special Functions

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 10.1.2 Parameter page: Special functions Parameter Settings Broadcast enabled Use this parameter to enable the broadcast function in addition to group control. Please note: When activating the broadcast function, additional objects to control the DALI system can be used.
  • Page 51 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Selection of Object Type RGB (3 Byte combined Object) RGB (separated Object) HSV (separated Object) Determines which type of colour control is to be used. If RGBW colour is selected: Selection of Object Type RGBW (6 Byte combined Object 251.600)

  • Page 52: Group

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 1000…10000 [3000] Dim To Cold Colour Temperature at Value 0% The colour temperature set via this parameter is automatically adjusted for a light value at the lower limit [0%]. For light values between the lower limit [0%] and the upper limit [100%], the automatically set colour temperature is adjusted interpolated.
  • Page 53 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Use this parameter to define a group description. To simplify the overview, this description will be displayed for all communication objects. For example: Test group Normal Mode Operation Mode Permanent Mode Normal /Night Mode Staircase Sets the operating mode of the group.
  • Page 54 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Automatic Switch 1 Minute After (min) 2 Minutes 3 Minutes 4 Minutes 5 Minutes 10 Minutes 15 Minutes 90 Minutes Use this parameter to set the time after which a group in night mode automatically switches off. This parameter is only visible if you select ‘normal / night mode’.
  • Page 55 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Sets the function of an additional object. If you select “Disable object“, an object appears which disables control of the group when the value is 1. If you select “Release object“, an object appears which enables control of the group when the value is 1.

  • Page 56: Behaviour

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Calculation Dimming logarithmic Values linear Sets the dimming curve for the group. 10.2.2 Behaviour Parameter Settings Switch-On Value … 100% Last Value Use this parameter to set the switch-on value. If you select ‘last value‘, the value is set to the dim value prior to the lamps being switched off.
  • Page 57 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Switch-Off Value … … Sets the switch-off value. Set Value immediately Switch-Off Behaviour Dimm to Value in 3 Seconds Dimm to Value in 6 Seconds Dimm to Value in 10 Seconds Dimm to Value in 20 Seconds...
  • Page 58 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Time for Dimming 3 Seconds 4 Seconds 5 Seconds 6 Seconds 10 Seconds 20 Seconds 30 Seconds 60 Seconds Sets the dim time for relative dimming in relation to a value range from 0 to 100%.
  • Page 59 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Additional Set Value Object incl. Dimming Time Use this parameter to select whether the value object should be used with the combined dimming time (DPT 225.001), see object No. 74. Please note: If you select the 3 Byte object (combination of value and dimming time) the dimming time is ignored in the ETS.

  • Page 60: Analysis And Service

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 10.2.3 Analysis and service Parameter Settings Type of Failure Status Object 1 Bit 1 Byte Determines whether the error object of the group is to be sent as a 1 Bit object without differentiating the type of error status or as an 8 Bit object with error type differentiation.

  • Page 61: Colour Control

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 10.2.4 Colour control Parameter Settings Colour Control Type none Colour Temperature RGB Colour RGBW Colour XY Colour Use this parameter to select the type of colour control you would like to use for the group.
  • Page 62 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Colour changing Fading Time via Dimming fast (10 Seconds) standard (20 Seconds) slow (40 Seconds) Use this parameter to select how quickly you want to change the colour temperature during dimming. If “RGB colour“ is selected.
  • Page 63 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Colour changing Fading Time immediately 1 Second 5 Seconds 10 Seconds 20 Seconds 30 Seconds 60 Seconds 90 Seconds Use this parameter to select how quickly you want the colour temperature to change.
  • Page 64 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Sets the additional white value ranging from 0 to 100%. Behaviour when Switching On Keep last Object Value Use ETS Parameter above Determines whether the last valid colour value or the colour temperature set in the ETS are to be used.
  • Page 65 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Use this parameter to define the x-colour for switching on. The value range is between 0 and 1. X= 0.33 and Y=0.33 corresponds to the white point. Figure 8: XY-colour spectrum (Source: Wikipedia) 0…1 [0.33]...

  • Page 66: Ecg

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 10.3 ECG 10.3.1 ECG 1 (2.. 64) Parameter Settings ECG x, Description e.g.: Floor, 1 level With this parameter an ECG description can be defined. This description is displayed as an overview for all communication objects.
  • Page 67 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App ECG Type Fluorescent Lamp Self Contained Battery Lamp (non switchable) Self Contained Battery Lamp (switchable) Discharge Lamp Low Voltage Lamp Incandescent Lamp 0..10V Converter LED Module Relay Module ECG with Colour Control Use this parameter to set the type of ECG used.
  • Page 68 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App This parameter allows you to set the value to which the corresponding lamp is permanently set in "Permanent" Mode. In the operating mode 'continuous operation' the lamp cannot be switched or changed, but always lights up in the set value.
  • Page 69 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Behaviour on Enable No Change Switch to On-Value Switch to OFF-Value This parameter appears when an additional object has been selected to define the behaviour when enabled. Enabled for Panic Mode Determines whether a group should be considered during panic mode. The panic mode is controlled via central object number 9.
  • Page 70 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Operating hours Limit value (hours) 1 h..200.000 h [4000 h] (Calculation for operating hours). This parameter is used to set the lamp life at which an individual warning is sent. Type of the error object...

  • Page 71: Behaviour

    Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App 10.3.1.1 Behaviour Parameter Settings 1.. 100% [100] Switch-ON Value Last value Use this parameter to set the switch-on value. If you select "Last value", the value is set to the dimming value prior to the lamp being switched off.
  • Page 72 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Switch-OFF Value … … Use this parameter to set the switch-off value. Set Value Immediately Switch-OFF Behaviour Dimm to Value in 3s Dimm to Value in 6s Dimm to Value in 10s...
  • Page 73 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Use this parameter to configure the behaviour on receipt of a new dimming value via value setting. Please remember that the dim time always refers to the full value range. Accordingly a dimming time of 30 s means a value change of 100% within 30 s.
  • Page 74 Application Manual KNX/DALI gateways EK-BF1-TP-D1/D2 and DCA App Switch ON via Dimming Switch ON with Dimming Object Switch ON with Value Object Switch ON with Dimming & Value Object Use this parameter to select whether a switched off group should be switched on when receiving a relative 4 Bit dimming object, a value setting object or both.

  • Page 75: Dali Channel Selection

    11 DALI Channel Selection DALI commissioning is carried out individually for each channel. When calling the DCA, channel 1 is preselected. The selection buttons can be used to select between channel 1 and channel 2 (only in case of using a 2-channel device). The following description refers to the commissioning of one channel.
  • Page 76 (displayed in brackets) as well as in the description of the ETS communications objects. Alternatively you can also name groups via the parameter pages: Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 76...
  • Page 77 'Commissioning' page and the "New installation" button. Once the teach-in process is complete, all ECGs that have been found are displayed in the list of non-identified devices on the right-hand side. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 77...
  • Page 78 Please make sure that the short address is between 0 and 63. If an ECG has been wrongly assigned, it can be moved back to the list of non-identified devices using the same drag& drop mechanism. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 78...
  • Page 79 DALI configuration data onto the gateway and ECGs. The actual ETS application with parameter settings and group addresses still has to be downloaded onto the device. This is done, as usual, via the normal download process in the ETS. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 79...

  • Page 80: Ecg Info And Errors

    ECG Type 5: 0..10V Converter ECG Type 6: LED ECG Type 7: Relais module ECG Type 8: Colour module RGB ECG Type 8: Colour module tunable white Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 80...
  • Page 81 ECG faults are only displayed in the manner described above if the ECG concerned has been previously programmed and is known to the gateway. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 81...

  • Page 82: Ecg And Group Detail Info

    For DT-8 ECGs with colour temperature control the following are also displayed:  Min. temperature  Max. temperature Press the “State Sync“ button to export and update the information. The process can take a few seconds: Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 82...

  • Page 83: Ecg Info In The Right-Hand Side Tree

    Double-click to open another window with further details. 12.2.3 Group info in the group tree Additional information for the group is displayed via tooltip in the group tree. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 83...

  • Page 84: Operating Dali Devices

    The DCA offers different options to activate these commands. The gateway must be commissioned and a connection to the gateway must be available for all of the options. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 84...
  • Page 85 Group menu in the left-hand side tree: Context menu in the ECG table: ECG menu in the right-hand side tree: The following commands are available: Blink Initialize ECG Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 85...

  • Page 86: Post Installation

    As the position (short address) of a newly found device is allocated randomly, you need to identify the lights and if required assign them to groups. Afterwards the ECGs can be assigned to a group. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 86...

  • Page 87: Ecg Easy Replacement

    Error type 11: More than one new ECG 12.6 Data Restore of DALI configuration This command is used to completely restore a EK-BF1-TP-D1/D2, for example, by replacing it with a completely unprogrammed device. In this case all DALI relevant data from the ETS are written onto the device. Once this process is complete, the device is restarted automatically.

  • Page 88: Scenes

    A “tick“ means that the scene has already been defined. Use drag and drop to pull the groups that are part of the scene into the scene window in the middle. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 88...
  • Page 89 To delete an entry, select a group and use drag and drop to move it back to the tree on the right- hand side. Alternatively, use the context menu (right click with the mouse) to delete an entry: Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 89...

  • Page 90: Colour Entries

    Each group can only support one type of colour control. The following window is shown for “colour temperature“. For RGB (RGBW) or HSV the window is as follows: For the XY option, the following window appears: Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 90...

  • Page 91: Programming Scenes

    Once all scene values have been set, you need to download the scene onto the DALI ECGs. For this purpose, please press the download button in the top right-hand corner. A connection to the EK-BF1-TP-D1/D2 is required. In principle, you can also plan individual scenes in the ETS ‘offline‘, independently of the DALI system.

  • Page 92: Export/Import/Delete

    Presence / movement sensor EK-DH4-TP After a scene has been programmed, the button becomes active. Press the button to activate and execute the selected scene. A connection to the EK-BF1-TP-D1/D2 is required for this purpose. 13.6 Export/Import/Delete In order to be able to reuse a scene that has already been created, it is possible to export it. The created XML file can be saved separately to be used again in another project or in another template.

  • Page 93: Time Control

    Presence / movement sensor EK-DH4-TP 14 Time Control In order to use the colour setting options of DT-8 devices, EK-BF1-TP-D1/D2 offers an integrated colour control module. With this module, users can automatically set a defined light colour for a certain time or date. This function is particularly interesting for white light control. Changes in colour temperature over the course of a day have a positive effect on well-being and efficiency in the work place.
  • Page 94 Altogether a maximum of 300 actions can be stored on a DALI gateway if all templates are used. A context menu is available to control and create action lists. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 94...

  • Page 95: Action Types

    Test action Immediately executes the chosen action (without regard for any potentially configured transition time) for all selected groups within a template. A connection to the EK-BF1-TP-D1/D2 is required. Test group action Immediately executes the chosen action (without regard for any potentially configured transition time) for a certain group within a template.
  • Page 96 Y coordinates of the colour can be entered separately. The permitted value range for X and Y is from 0.0 to 1.0. Please remember the physical limits of the connected ECGs/lights. Not every colour from the colour spectrum can be set. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 96...
  • Page 97 0 and 100%. The final colour is a mixture of the different primary colours according to their percentage. Colour HSV This function sets the colour values of DT-8 devices that support the primary colours RGB. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 97...

  • Page 98: Disabling/Enabling

    This makes it possible to fully prepare a template whilst disabling its execution. This way you can, for example, create two templates: one for a building in normal mode and one for the holiday period. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 98...

  • Page 99: Manual Override

    – Sunday). (For some KNX timers this is configurable). If a 3 Byte object is received without this information, the weekday is not checked. This means that an action which has, in fact, only been Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 99...

  • Page 100: Export/Import

    The export and import commands can be found in the context menu. The template is saved as an xml file in the desired target directory. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 100...

  • Page 101: Extras

    The description texts of the ECGs, the groups and input devices can be defined separately under this menu item 15.1 Menu: Edit Descriptions For each category the description texts can be entered separately. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 101...
  • Page 102 An entry that is not to be changed must therefore be defined as an "empty" line. An entry that is to be deleted is marked with single quotation marks. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved Pag. 102...

  • Page 103: Dca Oss

    Generally, these embedded free software files are distributed in the hope that they will be useful, but WITHOUT ANY WARRANTY, without even implied warranty such as for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE, and without liability for any Ekinex entity other than as explicitely documented in your purchase contract.

  • Page 104: Markings

     ekinex® KNX defective devices must be returned to the manufacturer at the following address: EKINEX S.p.A. Via Novara 37, I-28010 Vaprio d’Agogna (NO) Italy Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN ©...

  • Page 105: Other Information

    KNX® and ETS® are registered trademarks of KNX Association cvba, Brussels. © EKINEX S.p.A. The company reserves the right to make changes to this documentation without notice. Rev. 1.1 – 23/03/2023 MAEKDH4TP_EN © Ekinex S.p.A. – All rights reserved...
