- Page 1 KNX - Dali Gateway EK-BG1-TP User manual...
-
Page 2: Table Of Contents
4.6.4 Lamp colour details ........................19 Information ............................20 5 ETS application: Parameters ........................21 Application program structure ......................21 Tab: Info on EK-BG1-TP ........................21 Tab: General ............................21 5.3.1 Tab: General - Behaviour and alarms ..................21 5.3.2 Tab: General - IP settings ...................... - Page 3 Configurator application update 13/11/2020 ETS DB v.2.0 update 15/01/2021 Minor changes 01/04/2021 Added note on Ethernet port usage (chapter 3) 03/12/2021 Update for DALI-2 standard (page 4) 21/04/2022 Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 3...
-
Page 4: Product Description

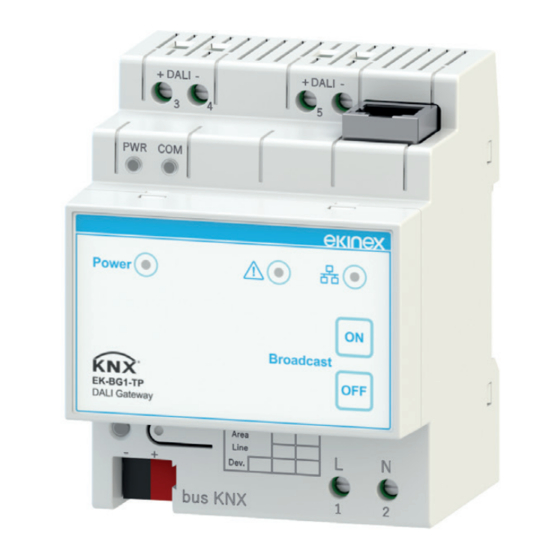

KNX-DALI Gateway EK-BG1-TP 1 Product description The ekinex® EK-BG1-TP gateway is a modular KNX device for panel mounting, which allows you to exchange information between a KNX system and a series of devices on the DALI bus. The device manages a bidirectional data flow: the DALI registers are read cyclically and their value is sent on the KNX network. -
Page 5: Scope Of Supply
Installation of the .NET Framework 4.5 system libraries on the PC is required. 1.5 Certification and markings Compliance with the applicable European directives is attested by the presence of the CE marking on the product label and documentation. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 5... -
Page 6: Switching, Display And Connection Elements
Indicates a request for DHCP assignment in DHCP indicator LED progress (flashing) or successful IP assignment (fixed) Membrane keys Send an On / Off broadcast command Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 6... -
Page 7: Configuration And Commissioning
The Ethernet port should only be used for service purposes by the installer for the configuration of the system, therefore its use is not intended for the end user. 4 Using the configuration software The ekinex® CGEKBG1TP configuration software allows you to perform the following operations in a simple and intuitive way: ... -
Page 8: Dashboard
Note: to prevent the device from being assigned a new IP with each new reconnection to the LAN, it is advisable to set (if the router or DHCP server allows it) the IP reservation based on the MAC address of the devices. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 8... -
Page 9: Installation
4. The section dedicated to updating the device firmware online; by selecting an update file (with the button (4a) or via drag & drop), provided by ekinex, it is possible to update the firmware following improvements or troubleshooting. Once the firmware has been updated, in the event of malfunctions, it is possible to return to the previous version using the button (4b). -
Page 10: Broadcast
Since the description of these commands (with the same graphic setting) also applies exactly to the case of individual units, the available commands are listed below in detail. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 10... -
Page 11: Lamp Parameters
This panel allows to set the parameters related to the brightness levels and dimming times of the lamps. The parameters that can be set are: The maximum brightness value The minimum brightness value Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 11... -
Page 12: Groups
Send commands to all the lamps belonging to the group (4); the commands are those previously described. Both the “On” and “Off” commands will behave in the fashion set in the group configuration panel. Access the group configuration panel (5). Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 12... - Page 13 Important notice: if group dimming is used from KNX, it is very highly recommended to set the same fade time value for all units belonging to the same group! Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 13...
-
Page 14: Group Colour Details Panel
System Failure sets the color temperature value to be set when the bus is not present. After any variation, the parameters are saved through button (4). Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 14... -
Page 15: Scenes
Scene names are not customizable. 4.6 Lights The "Lights" page displays a series of subpanels corresponding to each of the lamps identified and addressed on the DALI bus. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 15... - Page 16 The lamp is not addressed Power Failure Power supply problem For each lamp, it is possible to access a detail page via the icon/button (4) at the top right. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 16...
- Page 17 The "Save" button (9), which allows all changes made to the parameters to be confirmed and saved. Panels (6), (7) and (8) are individually expandable and are described below. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 17...
-
Page 18: Parameters
On this panel it is possible to define which groups every lamp is associated with, by selecting the respective boxes. Remember that any changes do not take effect until they are confirmed with the "Save" button! Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 18... -
Page 19: Scenes
On this panel the color temperature parameters for “Tunable white” type lamps can be set; the panel has exactly the same structure as the one described for lamp groups (refer to Section 4.4.1Errore. L'origine iferimento non è stata trovata.). Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 19... -
Page 20: Information
User manual KNX-DALI Gateway EK-BG1-TP 4.7 Information This panel shows information on the configuration program, including the version and the link for downloading any more updated versions. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 20... -
Page 21: Ets Application: Parameters
This parameter tells the gateway what behavior to take on startup: whether to keep the lamps at the same value, or return them to the last active value before switching off. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 21... -
Page 22: Tab: General - Ip Settings
IP subnet mask. Gateway IP values 0..255 [0.0.0.0] DHCP = No This data is composed of four numeric fields corresponding to the four parts of the IP address. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 22... -
Page 23: Tab: Groups
6.2 Communication objects - IP settings Object name Conditions Dim. Flags C.O. # [24.001] IP Address (variable) CR-T- DPT_VarString_8859_1 [24.001] Subnet mask CR-T- (variable) DPT_VarString_8859_1 [24.001] Gateway address CR-T- (variable) DPT_VarString_8859_1 Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 23... -
Page 24: Communication Objects - Dali Groups
[1.001] DPT_Switch 136, 146 …766 1 bit C-W-- On/Off command Recalls the maximum / minimum value of the group lights in the shortest possible time (normally 0.2 s). Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 24... -
Page 25: Communication Objects - Dali Scenes
In the table below, the 1-bit activation object is to be considered repeated for each of the 16 scenes. The KNX "Scene learning" command is not implemented; the brightness values associated with the scene are to be programmed through the configurator. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 25... -
Page 26: Communication Objects - Dali Broadcast
Broadcast – [7.600] TW - Absolute dimming C-W-- 2 Byte DPT_temperature_Color_Kelvin Kelvin Sets the color temperature of the lamp with absolute value command, directly specifying the Kelvin value. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved Pag. 26... -
Page 27: Warnings
DALI and its logo is a registered trademark of the Digital Illumination Interface Alliance (DiiA). © EKINEX S.p.A. The company reserves the right to make changes to this documentation without notice. Rev. 2.0 - 18/07/2022 © EKINEX S.p.A. - All rights reserved...
