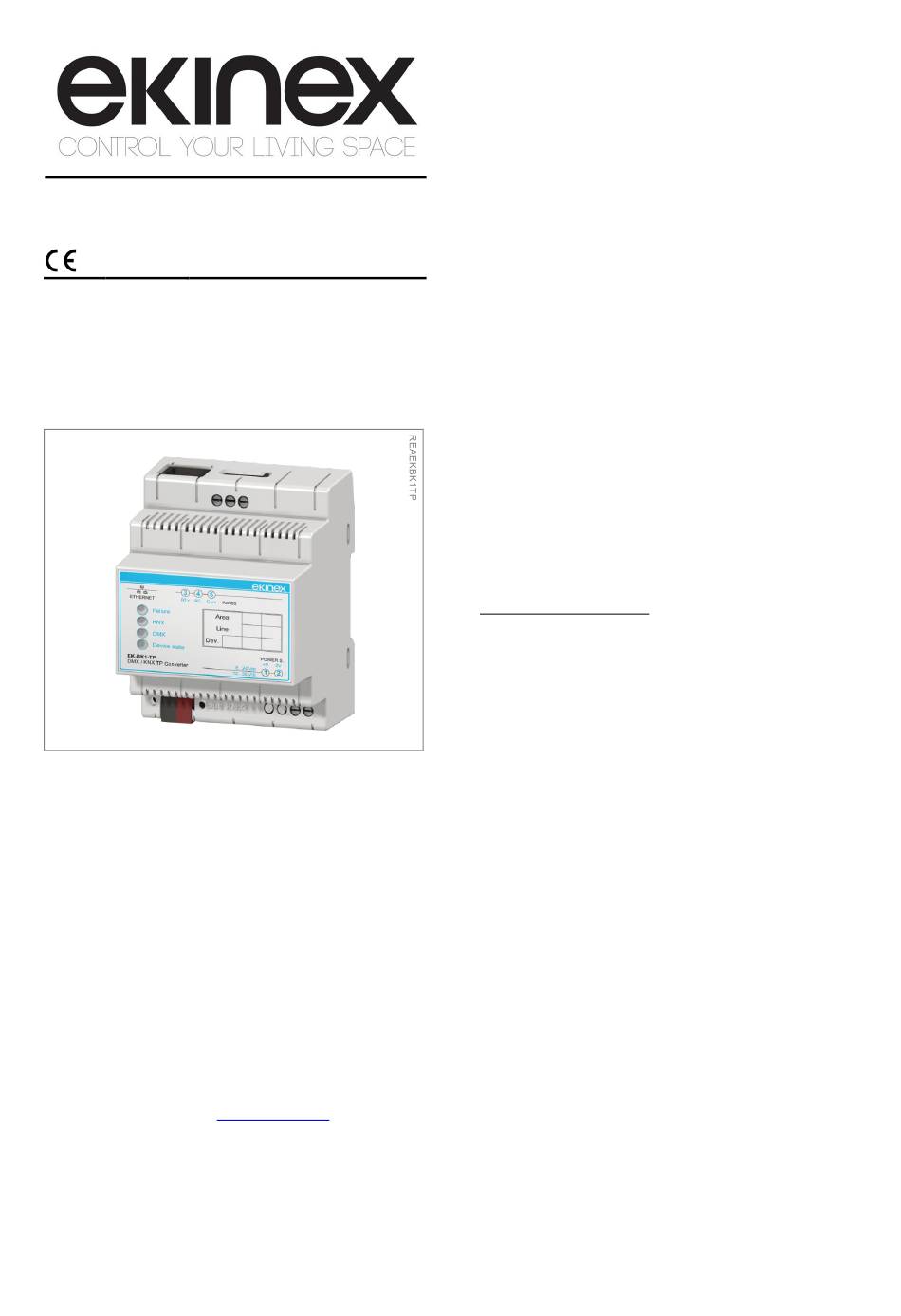

Ekinex EK-BK1-TP Quick Start Manual

Gateway DMX – KNX TP
Code: EK-BK1-TP
KNX device with gateway function (protocol conversion)
between a serial RS485 network (Master function) with
DMX protocol and a KNX TP network over a twisted
pair communicaton cable.
integration of DMX devices over a RS485 serial network
in a KNX-based automation system for homes and
buildings.

Description

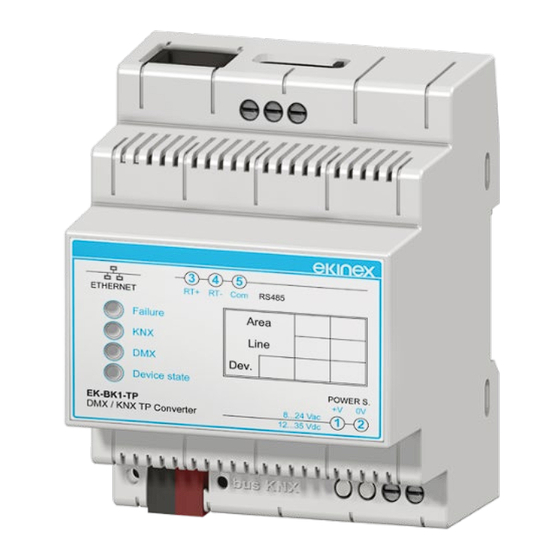

The DMX ekinex® EK-BK1-TP
apparecchio KNX modulare per montaggio a quadro. is
a KNX modular unit for panel mounting. It allows you to
exchange informations with one or more slave devices
over a RS485 differential serial network through DMX
protocol. The ekinex gateway acts as DMX master. The
informations exchanged over the DMX network are
updated over the KNX network by means of a twisted
pair (TP) communication cable.
The device manges a one-way data stream: up to 12
bytes of KNX data are defined, each one associated
with a device over the DMX network. The gateway
converts the data coming from KNX master and writes
its value on the corresponding DMX device.
Configuration is performed through a PC application
software which communicates through the integrated
Ethernet port. The application software CGEKBK1TP is
available for download at www.ekinex.com.
Data sheet STEKBK1TP_EN
V1.02 – 11 2015
Ideal application in
gateway è un
Pag. 1

Main features

DMX side
• RS485 serial communication
isolated from power supply, 120 Ω termination
resistance insertable by a 1-way microswitch
• DMX master communication
• Baud rate: 250 kbaud
• Device addressing from 0 to 512
• 1-byte register writing on max 512 DMX devices
KNX side
• KNX TP (Twisted Pair) communication port set to
9600 baud, electrically isolated from power supply
Ethernet port
• Ethernet communication port (IEEE 802.3), RJ45
connector, minimum cable category: 5E.

Technical data

• Power supply: 8...24 Vac or 12...35 Vdc. Power
Absorption at 24 Vdc: 3,5 VA.
• Installation on 35 mm DIN rail (according to EN
60529)
• Plastic case
• Protection degree IP20 (according to EN 60529)
• Safety class II
• Weight 145 g
• Modular device 4 UM (1 UM = 18 mm)
• Dimensions 72 x 90 x 60 mm (WxHxD)

Environmental conditions

• Operating temperature: - 40 ... + 85°C
• Stock temperature: - 25 ... + 55°C
• Transportation temperature: - 25 ... + 70°C
• Relative humidity: 93% non-condensing

Display and command elements

The device is equipped with a pushbutton and a KNX
programming LED, with a status LED and terminal
blocks for KNX and RS485 network connection. A port
for RJ45 connector for device configuration via Ethernet
as well as two 1-way microswitches are also present.
port, electrically
