- Page 1 Gateway configuration manual PROFINET Slave - KNX TP EK-BN1-TP...
-
Page 2: Table Of Contents
Communication parameters ......................... 15 KNX communication object configuration .................... 17 Profinet registers configuration ......................19 Configuration update..........................20 6 Warning................................ 23 7 Other information ............................23 Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 2... -
Page 3: Scope Of The Document

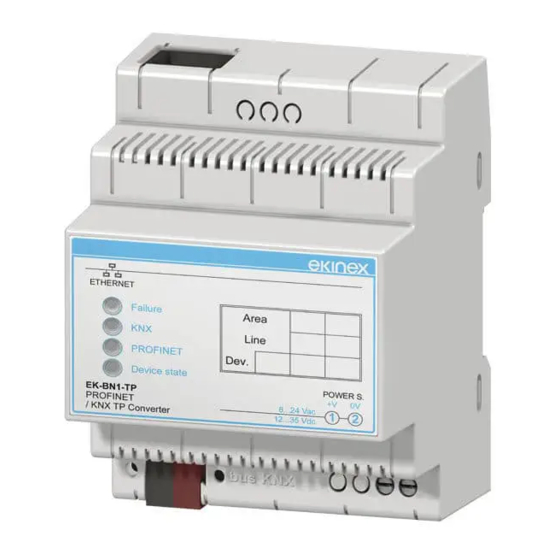

1 Product description The ekinex® Profinet Slave EK-BN1-TP gateway is a KNX modular unit for panel mounting. It allows you to exchange informations with one master devices over an Ethernet network through Profinet protocol. The ekinex gateway acts as Profinet slave. The informations exchanged over the Profinet network are updated over the KNX network by means of a twisted pair (TP) communication cable. -
Page 4: Main Functions
KNX TP (twisted pair), 9600 baud, electrically isolated from power supply and RS485 Communication port communication port Power supply SELV 30 Vdc through bus KNX Current absorption from bus < 13 mA Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 4... -
Page 5: Supply
1.4 System requirements for configuration software Configuration and commissioning of the ekinex® gateway must be performed using the application program CGEKBN1TP, available for download at www.ekinex.com. The PC where the application program is installed must meet the following requirements: •... -
Page 6: Switching, Display And Connection Elements
Power supply terminal blocks 1-way microswitch A Ethernet port Ethernet port LED Device satus LED Profinet communication LED KNX communication LED Device error LED Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 6... - Page 7 In the current version of the device, both KNX physical address programming and configuration download must be performed through the configuration program: for KNX physical address please refer to “Communication parameters” paragraph, “ID Device” parameter. Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 7...
-
Page 8: Configuration And Commissioning
Configuration and commissioning of the ekinex® gateway require specialized skills about KNX networks and knowledge of the specific ETS automation project. In order to acquire such skills, it is essential to attend trainings and workshops organized at KNX-certified training centers. -
Page 9: Profinet Protocol General Information
MAC and IP are addresses typical of TCP/IP based devices. The MAC address changes only if the device is replaced, while IP is a dynamic address. The device name is a static address. Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 9... -
Page 10: Real-Time (Rt)
Following cycles can have a maximum jitter of 1 microsecond, which make IRT communication ideal for motion control applications. Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 10... -
Page 11: Configuration Software
Gateway configuration manual Profinet Slave/KNX TP – EK-BN1-TP 5 Configuration software The ekinex® configuration software CGEKBN1TP allows you to perform the following operations: Selection of physical address of the device over the KNX TP network; Selection of Ethernet parameters;... -
Page 12: Memory Image Structure
The proper addressing of the support buffers must be manually performed by the user, based on the size of the data to be acquired. Overlapping support data may end up in a protocol converter mulfunction. Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 12... -
Page 13: Creating A New Project Or Modifying A Saved Project
Open configuration (see Figure 6 - Open configuration form): you will see the name of the duplicated project in the list of available configurations. Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 13... -
Page 14: Software Options
5.3 Software Options The Software Options form allows you to select a different language for the application program. Figure 6 – Options form, Language tab Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 14... -
Page 15: Communication Parameters
Gateway address used for Ethernet communication. The gateway can be GATEWAY enabled or disabled through the control check-box placed at the right side of the field. Port 34964 Port used for Profinet communication Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 15... - Page 16 PROFINET Name of Station Profinet device name Number Byte IN Number of input bytes of Profinet node Number Byte Out Number of output bytes of Profinet node Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 16...
-
Page 17: Knx Communication Object Configuration
Enables extended frame format for KNX communication (cEMI = Common Extended checked / unchecked Extended Message Interface) Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 17... - Page 18 The 2-byte (DPT 9.xxx) floating point communication object value is converted Float 16 to Float 32 to a 32-bit floating point value (according to standard IEEE 754). Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 18...
-
Page 19: Profinet Registers Configuration
Profinet master and the connected KNX devices. This file will have to be imported in the Profinet master configuration program. Figure 10 - PROFINET XML File name form Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 19... -
Page 20: Configuration Update
• • Set the 1-way microswitch A (see Figure 1 – Switching, display and connection elements) to OFF position • Power on the device Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 20... - Page 21 In case the update procedure goes into PROTECTION mode (see Figure 15 – Update error, “Protection” mode), you may want to check the following: Figure 15 – Update error, “Protection” mode Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 21...
- Page 22 “C:\Program Files (x86)\Ekinex\Compositor_CG-EK-BN1-TP\Master”. After replacing, open Update configurazione form (see Figure 12 – Update configuration form) in the application program and start the proper sequence. Revision 1.0.2 - Update: 10/12/2018 Configuration manual © EKINEX S.p.A. – All rights reserved Page 22...
-
Page 23: Warning
• KNX® and ETS® are registered trademarks of KNX Association cvba, Brussels © EKINEX S.p.A. 2015. The company reserves the right to make changes to this documentation without notice. Revision 1.0.2 - Update: 10/12/2018 Configuration manual ©...
