ipf electronic UT139573 Manual

UT139573

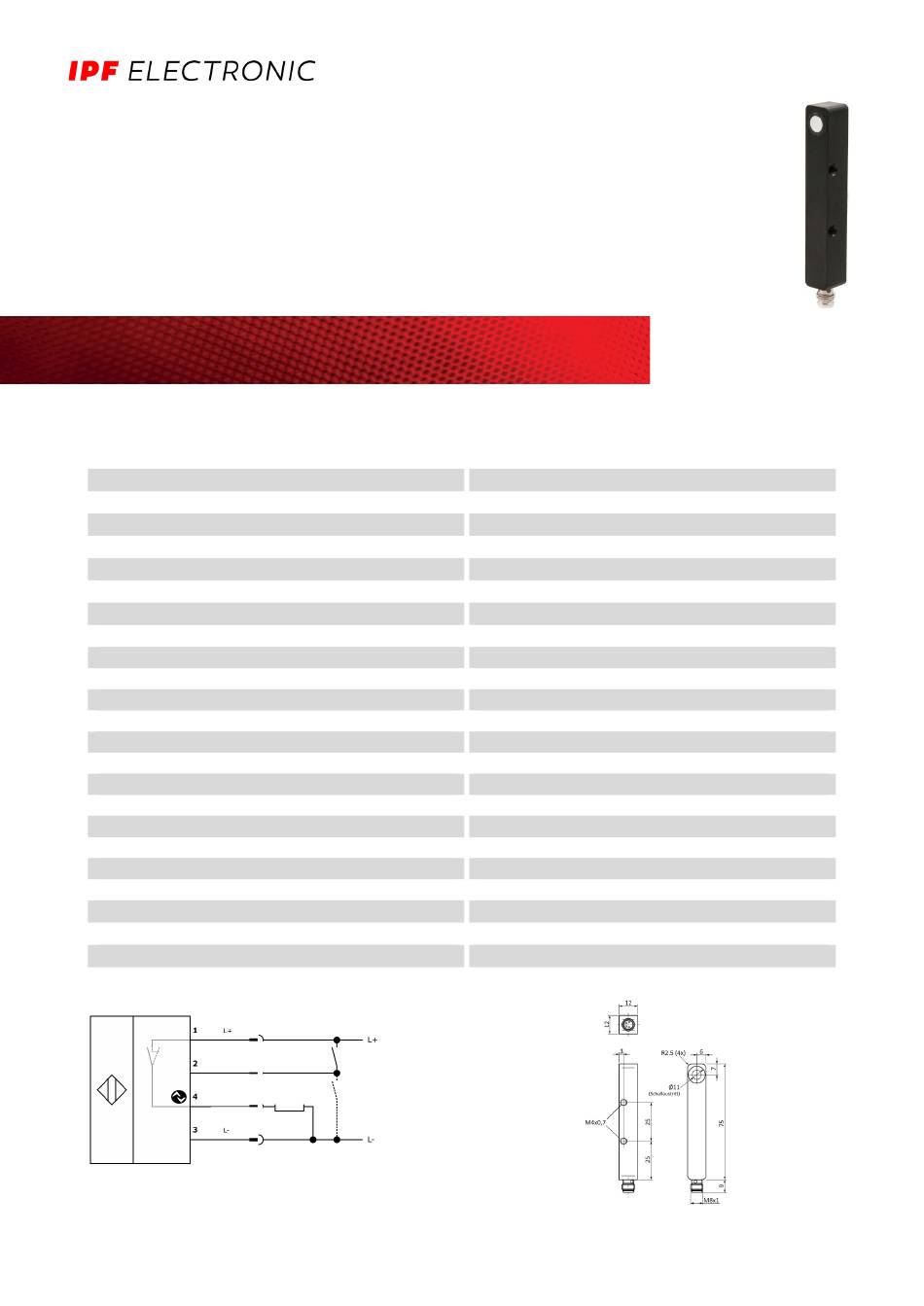

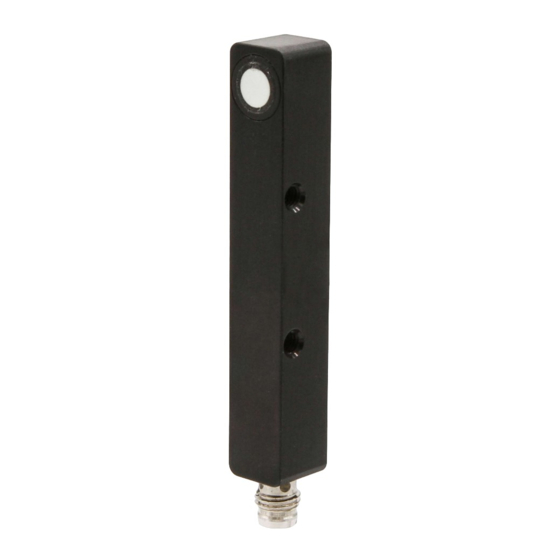

Diffuse-reflection sensor
I
Setting via teach-in
I
3 different teach modes
I
Push-pull switching output
I
M8-connector
IO-Link interface
Normally open contact / normally closed contact switchable
TECHNICAL DATA
Scanning range
Operating voltage U
B
Analog output
Output current (max. load)
Short-circuit proof
Reverse polarity protected
Voltage drop
Switching frequency
Current consumption (without load)
Standard measuring plate
Resolution
Repeatability
Hysteresis
Mounting distance (sensor to sensor)
Setting
Carrier frequency
Protection class
Insulation dielectric strength
Protection class (EN 60529)
Material (housing)
Temperature (operation)
Temperature drift
Connection
Connection accessories
Connection
brown
white
Teach-in / lock
black
Push-pull NO / NC switchable
blue
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel +49 2351 9365-0 • info@ipf-electronic.com •
MANUAL • Subject to alteration! Version: June 2022
40 ... 400mm
18 ... 30V DC
Push-pull, no/nc switchable
150mA
+
+
2.0V DC
10Hz
40mA
100 x 100mm
1mm
0.5mm
2 ... 20mm (adjustable via IO-Link)
250mm
Teach-in
300kHz
III
500V
IP 67
Brass nickel plated
-25 ... +70°C
0.2%/K (uncompensated)
M8-connector 4-pin
e.g. VK200375
Dimensional
drawing
*
