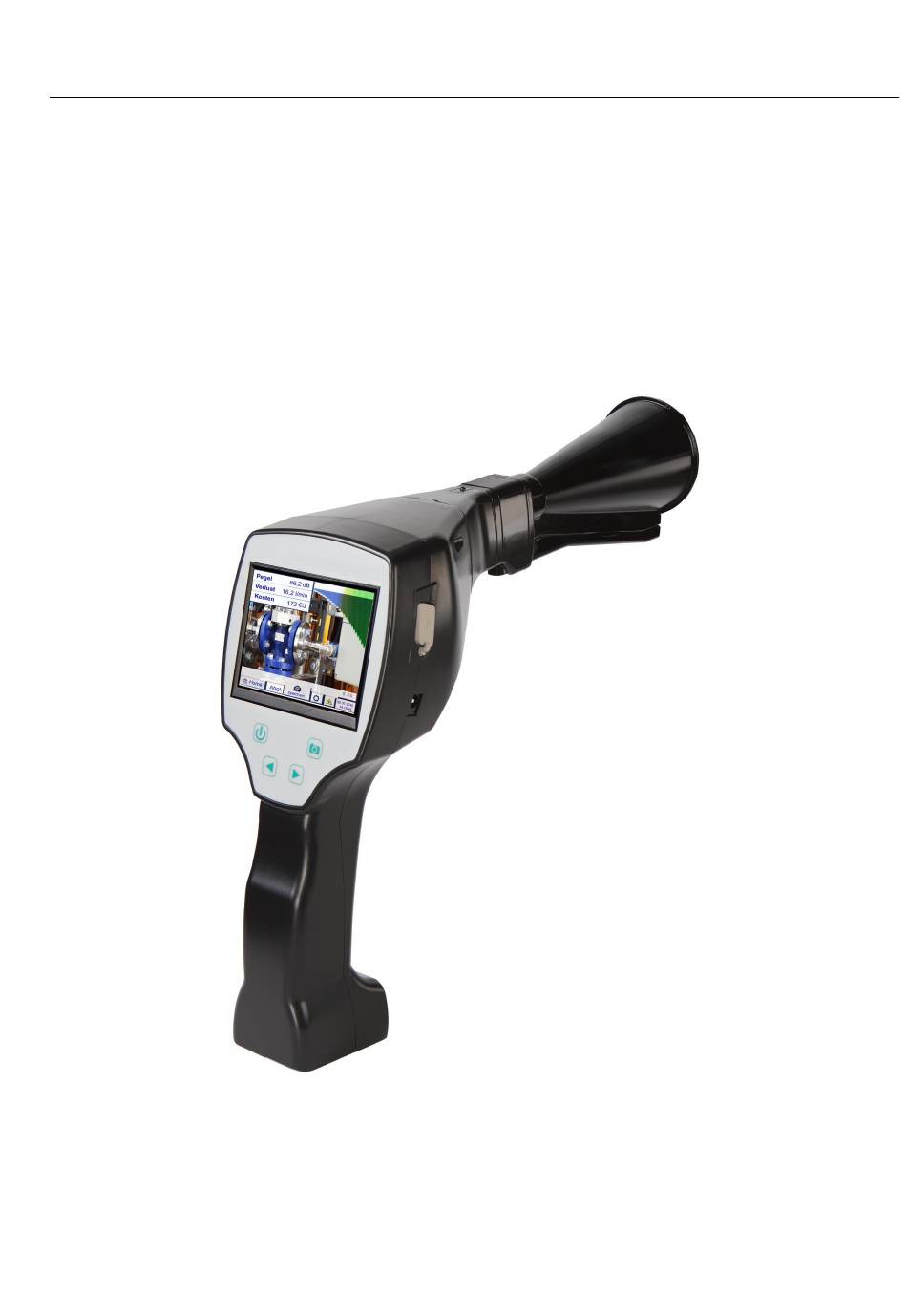

- Page 1 EN- English Instruction manual Leakage detector with camera page 1...
-
Page 2: Table Of Contents
BOUT THIS DOCUMENT ................................. 5 NSURING SAFETY ..............................5 NVIRONMENTAL PROTECTION GENERAL FUNCTION DESCRIPTION ..........................6 TECHNICAL DATA UY000001 ............................7 PROCEDURE LEAK DETECTION / MEASUREMENT ....................... 8 DEVICE COMPONENTS AND CONTROLS ........................9 Basic device..................................9 ..............................10 MPLIFIER MODULE ............................ -
Page 3: Table Of Content
Table of Content ................................31 EVICE ETTINGS Password setting..............................31 9.6.1 9.6.2 Device Settings ..............................32 9.6.2.1 Language ..................................32 9.6.2.2 Date & Time .................................. 33 9.6.2.3 SD-Card ..................................33 9.6.2.4 System update ................................34 9.6.2.5 Factory Reset ................................35 9.6.2.6 Calibration of touchpanel ............................. -
Page 4: Foreword
Foreword 2 Foreword Dear Customer, thank you for purchasing our leak meter with camera. The new leak meter with integrated camera and leakage calculation are ideal measuring instruments which help to find and document even smallest leakages (0.1 l/min corresponds to approx. 1 € p. a.) easily even in far distances. -
Page 5: Safety Instructions
Nor for consequential damages in connection with the delivery, performance or use of this device. -
Page 6: General Function Description
General function description 4 General function description When gases escape from leaks in piping systems (leaking screw connections, corrosion, etc.), noises are generated in the ultrasonic range. With the leakage detector even the smallest leaks, which are inaudible to the human ear and not visible due to their size, can be located several meters away. The inaudible ultrasound is converted to audible frequencies in addition to the display emission level shown in the display. -
Page 7: Technical Data Uy000001
Technical data 5 Technical data 263 x 96 x 280 mm (incl. PreAmp module and acoustic trumpet) Dimensions 0.55 kg incl. PreAmp module and acoustic trumpet , Weight complete set with transportation case ca.3.5 kg Frequency range 40kHz (+/- 2kHz) Power supply Internal 7.4 V lithium-ion battery Operating time... -
Page 8: Procedure Leak Detection / Measurement
Procedure leak detection 6 Procedure leak detection / measurement Selection Measurement tool Gooseneck Focus tube Accustic trumpet Parabolic mirror For punctual measurements For punctual measurements in For general measurements in For leakage measurements at longer distances (3m - 12m) in hard-to-reach areas directly accessible areas directly accessible areas (0. -
Page 9: Device Components And Controls
Device components and controls 7 Device components and controls Basic device UY000001 Acoustic trumpet Release button for preamplifier module Camera ,5 “ TFT-Color Display Pre Amplifier module with Touchpanel USB connection Foil keypad (4 buttons) Battery charge socket Power on/off button... -
Page 10: Pre Amplifier Module
Device components and controls 3.5mm jack for the headphone Picture 2 Pre Amplifier module Ultrasonic microphone Laser module Camera connection Picture 3 Acoustic trumpet with camera Ultrasonic microphone opening Opening of the laser pointer Camera connection Picture 4 page 10... -
Page 11: Focus Tube With Focus Tip
Device components and controls Focus tube AU000021 Picture 5 Gooseneck (Optional) VY000020: Length 600mm VY000021: Length 1500mm Picture 6 Parabolic mirror (Optional) Picture 7 page 11... -
Page 12: Assembly With Acoustic Trumpet
Device components and controls Assembly with acoustic trumpet The acoustic trumpet allows acoustic amplification by bundling the sound waves and specifies the location of the leak. Due to the special construction of the integrated laser pointer is still usable. The camera is integrated on the bottom of the acoustic trumpet and is electrically connected to the preamplifier module via the jack plug. -
Page 13: Assembly With Gosseneck
Device components and controls Assembly with Gosseneck Due to its flexibility, the gooseneck tool is used for punctual measurements in hard-to-reach areas. Connection to the leakage device is possible via the supplied spiral cable, see Figure 10. It is no longer possible to use the camera. To remove the component, remove the connection cable by pressing the release button on both sides and pulling off the cable. -
Page 14: Commissioning / Application
Commissioning 8 Commissioning / Application Please first observe the safety instructions in section 3 Switch on Hold down the power button for about 1 second, the power will turn on, and a start-up sequence will appear on the display. Pressing the button again switches the device off again. On-Off button, see device components and controls Headphone Volume Loud / Volume Down... -
Page 15: Operation
Operation 9 Operation The operation is largely self-explanatory and menu-driven via the touch panel. The selection of the respective menu items occur via short "tapping" with the finger or a soft round pen. Attention: Please use no pens or other objects with sharp edges! The foil can be damaged! Inputs or changes can be made with all white deposit fields Initialization... -
Page 16: Screen Leckage
Operation Screen Leckage The following picture shows and describes the display elements. Sensivity level button Displayed values for: Signal-Level in dB Leakage size Bar graph of Signal level Leakage costs per year LeakTag number Actual camera image Laser „On“... -
Page 17: Home Menu
Operation Home menu The operation is largely self-explanatory and menu-driven via the touch panel. The selection of the respective menu items occur via short "tapping" with the finger or a soft round pen. Attention: Please use no pens or other objects with sharp edges! The foil can be damaged! Before the leakage search is started, the device must be configured. -
Page 18: Configuration Of
Operation 9.3.1 Configuration Home Configuration In the configuration settings the the unit system can be selected and the required parameters entered, this to calculate the leakage costs per year. Selection of ISO or US unit system Enter cost per 1000 volume units & Enter currency Default: 2 €... -
Page 19: Sensortype Selection (Measuring Tool)
Operation Home Configuration Meas.Point The measuring point is stored for each leakage in its journal data. These can be seen later in the leakage report in the software. LeakTag: will be automatically increased by one after storing a measurement. All information about the measuring point can be changed by selecting the corresponding text field or the stored measuring points can be loaded from the internal database. - Page 20 Operation Overview and application description of the different sensor types Acoustic trumpet (standard tool) Focus tube The focus tube allows only very few ultrasonic waves to pass in The acoustic trumpet incident ultrasonic waves and thus the direction of the ultrasonic transducer, allowing leakages to increases the range of the device.
-
Page 21: Sensitivity Levels
Most insensitive stage (very large leaks, many noises - heavy-duty application) 40 – 100 dB By default, the UY000001 is set to the Auto level and will automatically change levels (10-70 dB to 40-100 dB) depending on the leakage size (ultrasonic level). -
Page 22: Parameter / Meas. Point (Re-Check)
Operation 9.3.3.1 Parameter / Meas. Point (Re-Check) Store Parameter Store Meas. Point At this point, it is again possible to check and correct the parameters „Pressure" and „Distance" and the measuring point. Changing the parameters gives new values for leakage and cost. Execution of the corrections see description chapter "configuration". -
Page 23: Comment
Operation 9.3.3.2 Comment Store Textfield Comment In addition to the details of the measuring point with company, building and location, it is possible to enter a comment (up to 32 characters). To do this, select the text field „Comment“ and enter the comment. -
Page 24: Export/Import
Operation Export/Import With Export / Import, recorded "journal data" can be transferred to a USB stick system settings can be exported as well as imported measuring points (company, building and location data) can be exported as well as imported. ... -
Page 25: Export
Operation 9.4.1 Export 9.4.1.1 Export „Journal Data“ Export / Import Export Journal Data With the help of the „Change -button you can set a period between „Start“ and „End“. Stored measurement data that lies within this period will be exported. The selected date is always highlighted in green and the dates of the Sundays are - as in the calendar - red. -
Page 26: Export Of System Settings
Operation 9.4.1.2 Export of System settings This feature is especially relevant to the bigger version, here for storing the external sensor settings as well as e.g. display option for charts, sensor value etc. Export / Import Export System settings Here the definition of the storage location takes place. -
Page 27: Import
Operation 9.4.2 Import 9.4.2.1 Import of system settings Export / Import Import System settings Sequence of directory and file selection is analogous to file export. Selection of internal SD card with activation of key „SdCard“ or on USB stick with key „USB“. -
Page 28: Import New Measurement Tool
Operation 9.4.2.2 Import new measurement tool Export / Import Import Import new Tool The directory and file selection process is the same as for export e.g. system settings Selection of internal SD card with activation of button "SdCard" or of USB stick withbutton "USB". -
Page 29: Export / Import Customer Database
Operation 9.4.3 Export / Import Customer database These functions allow the stored measuring point descriptions (companies, buildings and location) to be exported as an XML file or to be imported from another leakage device exported database. That means it is also possible to create and import the database externally, but the prerequisite is the correct format of the XML file. -
Page 30: View Bitmaps
Operation View bitmaps View Bitmaps Select Screenshoot This allows the stored pictures (measurement pictures) on the SD-Card or USB Stick to load and shown in the display again. Please press button „Select Screenshot“ and select the required picture (bitmap). The pictures are stored and organized in different directories The directory structure is year / calendar week... -
Page 31: Device Settings
Settings Device Settings The settings are all protected by a password! Settings or changes are generally confirmed with OK! Remark: If you go back to main menu and then again one of the setting menus is called, you must enter the password again. Overview of the Settings 9.6.1 Passwort-Einstellung... -
Page 32: Device Settings
Settings 9.6.2 Device Settings Settings Device settings Overview of Device settings 9.6.2.1 Language Settings Device settings Set language Here you can select one of 11 languages for the leakage device. page 32... -
Page 33: Date & Time
Settings 9.6.2.2 Date & Time Settings Device settings Date & Time By pushing the description field and Time Zone enter the correct UTC, you can set the correct time all over the world. The summer and wintertime switchover is realized by pushing the button. -
Page 34: System Update
Settings 9.6.2.4 System update If required, there is the possibility for the leakage device to download a firmware update to the device via the USB stick. The latest software is available on the ipf electronic homepage. The received file must then be stored on the USB stick and transferred to your device as described below. -
Page 35: Factory Reset
Settings 9.6.2.4.2 Update Channels Settings Device settings System-Update Update-Channels If there is an update either for the internal and external channel (bigger version only), it must be started separately. for Channels (bigger version). Update Important: If the button appears after the update, it must be pushed to restart the Reboot system leakage device. -
Page 36: Calibration Of Touchpanel
Settings 9.6.2.6 Calibration of touchpanel Settings Device settings calibrate touchscreen If necessary, the touch-screen calibration can be changed here. Push and it appears, 1. left Calibrate above,2. bottom right, 3. bottom left, 4.right above and 5. in the middle, a calibration cross that must be pushed consecutively. -
Page 37: Set Backlight Brightness
Settings 9.6.3 Set backlight brightness Settings Set backlight Here you adjust the desired Backlight (15-100%) of the display directly. E.g. to 39 % Backlight With the help of the Backlight dimming after button, after a definable time interval (here after 15 minutes), the can be Backlight... -
Page 38: Cleaning
Einstellungen 9.6.4 Cleaning Settings Cleaning This function can be used for cleaning the touch panel during running measurements. If one minute is not enough time to clean, the process can be repeated at any time. Is the cleaning faster finished, then you can push the button (for to abort press long... -
Page 39: Charging The Batteries
Charging the batteries 10 Charging the batteries The battery is charged within the device. For this, the supplied plug-in power supply is connected to the built-in charging socket of the leakage device and the 230V socket. Symbol „CHG“ is displayed during Connect external power charging. -
Page 40: Scope Of Delivery
The following table lists the components with their order numbers. Description Ultrasonic detector set consisting of: Leak detector (UY000001) with acoustic trumpet, and integrated camera, 100 leak tags for marking the leakages on site Sound-proof headset (VY000023) Focus tube with focus tip (AU000021)
