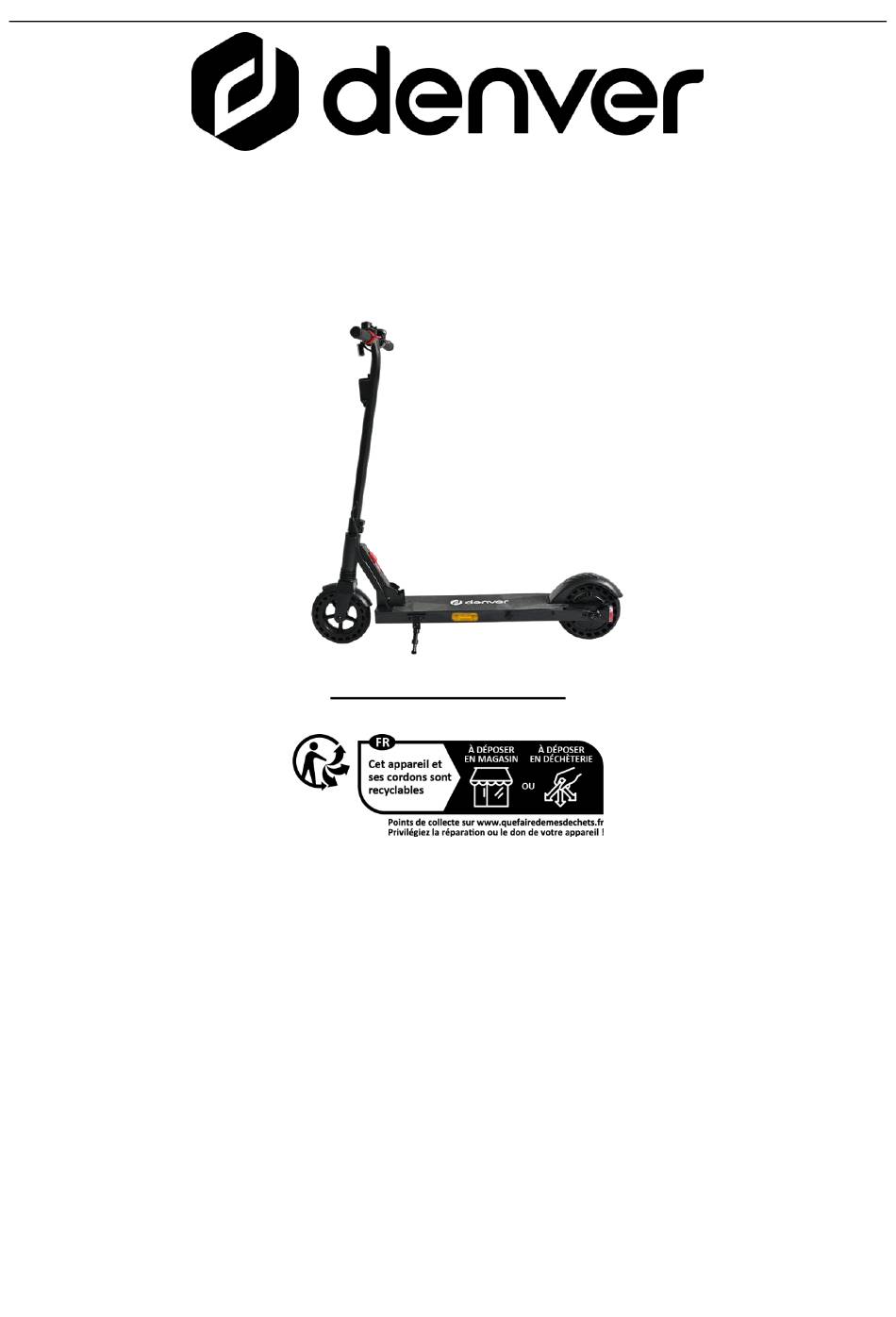

Original manual

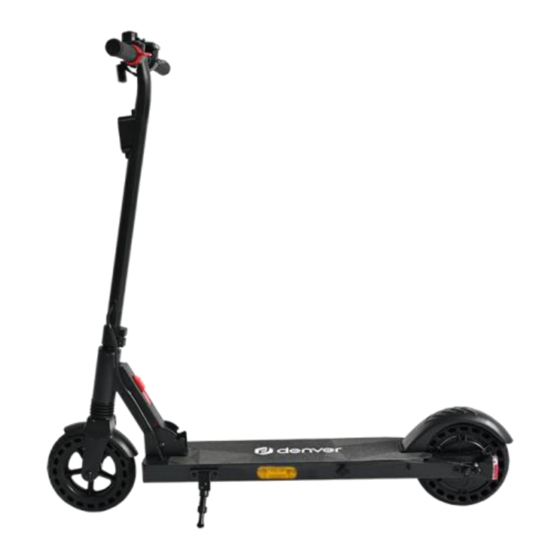

SEL-80150/SEL-80150F
facebook.com/denver.eu
April/2023
Before operating this vehicle, read all the instructions for safe assembly and operations.
User's manual can guide you through the functions and usage of Electric scooter.
Before using this Electric scooter, familiarize yourself with how to operate, so that you
can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance is only to be used with the power supply unit provided with the
appliance.
This appliance contains batteries that are not replaceable.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denver SEL-80150
Summary of Contents for Denver SEL-80150
- Page 1 Original manual SEL-80150/SEL-80150F facebook.com/denver.eu April/2023 Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.
-
Page 2: Table Of Contents
Table of Contents 1 Product and Accessories ....................3 2 Unfolding and folding the scooter ................4 3 Handle bar assembly ....................5 4 Charging the scooter ....................6 5 Intended Use ........................ 6 6 Safety Instruction ......................7 7 Maintenance ......................... 8 8 Operational control .................... -
Page 3: Product And Accessories
1 Product and Accessories Important! This electric scooter must be charged and stored in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 ° C or above 45 ° C. Equally, always disconnect the electric scooter with the power cable once fully charged. -
Page 4: Unfolding And Folding The Scooter
Left handle Right handle Unfolding and folding the scooter Unfold the Electric scooter Stand the Electric scooter on its wheels, and press the unlock clasp. Pull up the handle in a gentle way. The Electric scooter is unfolded as soon as you hear the rod click into place. Fold the Electric scooter 1) Hold the clasp and pull it outward. -
Page 5: Handle Bar Assembly
4) Dual action safety knob Fold-Unfold Position Push up and press the red button to fold or unfold the Electric scooter. 3 Handle bar assembly 1) Parts inside the packaging: two handlebars 2) Change display angle: Loosen the screw on the handle bar, and rotate the axle to make the handlebar meter screen upwards while the and display screen turn inwards in a horizontal level. -
Page 6: Charging The Scooter
4 Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. Charging port 5 Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 100 kg. -
Page 7: Safety Instruction
6 Safety Instruction We recommend always wearing helmet and protective gear like elbow, knee and wrist protectors to ensure your personal safety. Also make sure you have read the user manual carefully, to ensure you know how to ride it in a safe and fun way. -
Page 8: Maintenance
handlebar. In this case, please contact your retailer since the bearing needs to be replaced and/or the handlebar checked and adjusted. Ride the electric scooter only on a dry surface since otherwise the riding safety and braking performance may be impaired and the motor or bearings may be damaged. Please do not ride up or down long and steep slopes. - Page 9 days in off mode, before it is fully discharged. If only partially charged, this period is lower. Please make sure the battery does not get above 50° Celsius, or below minus 10° Celsius for a longer period. (e.g. don’t leave the electric scooter in a hot car in summer, do not put battery into fire etc.) Low temperature (e.g.
-
Page 10: Operational Control
If the wheel seems wobbly even after screws are tightened, the bearings might be worn down and need replacement WARNING Please make sure to check that the steering system is correctly adjusted and that all ● connection components are firmly secured and not broken before riding, refer to handle assembly and safety instruction. - Page 11 Control and display Battery level Speed Gear level Time Single mileage Power On: Long press the power button until the display lights up. Power Off: Long press the power button until the display goes out and the system is off. 1.
-
Page 12: Electric Scooter Riding
9 Electric scooter riding Rear brake Press ▲ and ▼ buttons to adjust speed level. Press the accelerator button to accelerate, so you can drive. Press the brake button to brake. When you press the accelerator and electric brake button at the same time, the Electric scooter will automatically brake For safety, the rear wheel brake system must be used when driving at high speed. -
Page 13: List Of Parameters
Charging Time(h) Electric scooter Model: SEL-80150/SEL-80150F Input: 100V-240V~, 50/60Hz, 2A(Max) Output: 42V 1.5A Max Speed: SEL-80150: 20km/h SEL-80150F: 25km/h Weight: 13 kg Year Of manufacture: 2023 Max Vehicle Payload: 100kg Battery: 36V/4Ah Power Consumption: ≤ 300W Always charge the electric scooter with the supplied power adapter: XHK-916-42015... -
Page 14: Electric Scooter Safe Parking
11 Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. Before you ride again, push the side stand back up so that it is parallel to the foot board. - Page 15 Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 ° C and +45 ° C. ● 13.4 Range per charge The range depends on several factors: Topography: On level paths you have a greater range than on uneven ground.
- Page 16 Keep the Electric scooter at a sufficient distance from other people and avoid ● collisions. Steer through balance shifting, fast movement can result in falls. ● Do not ride in rain or under other wet conditions. Ride only in dry weather. ●...
- Page 17 If the device is left to other people, it must be charged partially (20 - 50%), not fully. ● Do not remove the device from its package to fully charge it and then put it back in ● the package. The device is generally partially charged as shipped from the factory.
- Page 18 IMPORTANT! Read carefully and keep for future reference. Any load attached to the handlebar will affect the stability of the vehicle. Accessories and any additional items which are not approved by the manufacturer shall not be used. WARNING ! As with any mechanical component, a vehicle is subject to high stresses and wear.
- Page 19 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
- Page 20 The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 3 hours if using this way) Please enter: www.denver.eu to obtain the electronic version of the manual.
- Page 21 WARNINGS Please read the manual completely and the instructions below before using the product. Product names: SEL-80150/SEL-80150F Product type: Electric scooter Year of manufacturing: 2023 • Note: ONLY use the supplied charger labelled XHK-916-42015 with the following output voltage to charge this Electric scooter: 42V – 1.5A.
- Page 22 Full Name: Position: Company: DENVER A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark Date: 31 May, 2023 DENVER A/S | Omega 5A | 8382 Hinnerup | Denmark Phone: +45 86 22 61 00 | E-Mail: contact@denver.eu | Web: www.denver.eu VAT.NO: DK18831678...
