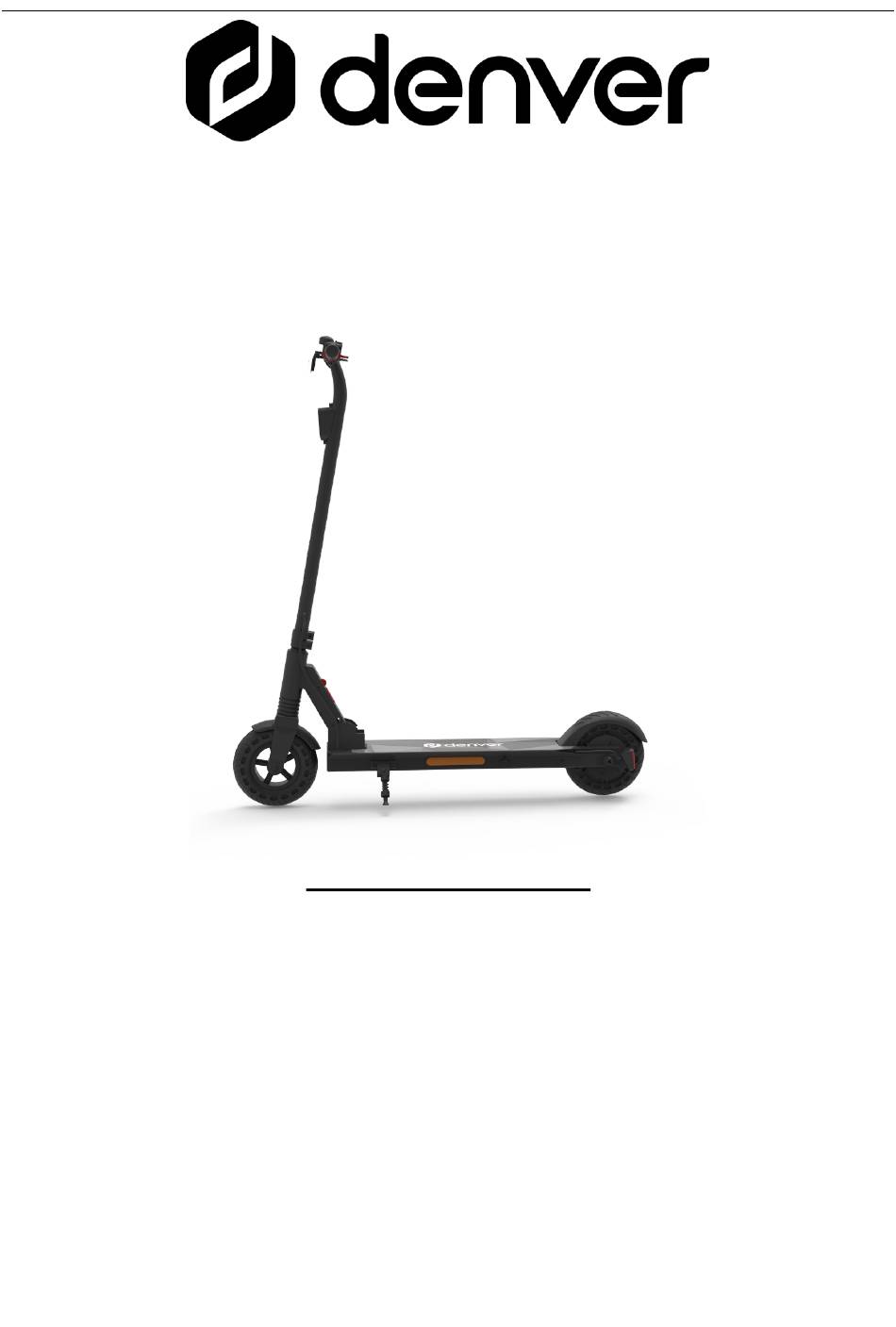

Original manual
SEL-80135
facebook.com/denver.eu
Before operating this vehicle, read all the instructions for safe assembly and operations. User's manual can guide you
through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to
operate, so that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance is only to be used with the power supply unit provided with the appliance.
This appliance contains batteries that are not replaceable.
Version 1.0
1
Advertisement
Table of Contents
Related Manuals for Denver SEL-80135
Summary of Contents for Denver SEL-80135
- Page 1 Original manual SEL-80135 facebook.com/denver.eu Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.
-
Page 2: Table Of Contents
Table of Contents Product and Accessories........................3 Unfolding and folding the scooter......................4 Handle bar assembly..........................5 Charging the scooter..........................7 Intended Use............................8 Safety Instruction..........................8 Maintenance............................9 Operational control......................... 11 Electric scooter riding......................... 12 10 List of parameters..........................14 11 Electric scooter safe parking.......................15 12 Safe transportation..........................15 Warnings.............................15... -
Page 3: Product And Accessories
1 Product and Accessories Important! This electric scooter must be charged and stored in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged. Always use the supplied power adapter to charge the electric scooter. -
Page 4: Unfolding And Folding The Scooter
Left handle Right handle 2 Unfolding and folding the scooter Unfold the Electric scooter Stand the Electric scooter on its wheels, and press the unlock clasp. Pull up the handle in a gentle way. The Electric scooter is unfolded as soon as you hear the rod click into place. Fold the Electric scooter 1) Hold the clasp and pull it outward. -
Page 5: Handle Bar Assembly
4) Dual action safety knob Fold-Unfold Position Press the red button to fold or unfold the Electric scooter. Rotate the safety knob to the “FOLDING” position on the left or right, then press the red button to fold your Electric scooter. Rotate the safety knob to the “RIDING” position, you can start your driving. WARNING The knob must be set to the “RIDING”... - Page 6 components to make sure that the steering is correctly installed as described above, and that all connecting parts are secure and fully functional. Figure 1 Figure 2...
-
Page 7: Charging The Scooter
4 Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. Charging port... -
Page 8: Intended Use
5 Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 100 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. -
Page 9: Maintenance
loosen or damage the spring holding the fender. As a result, the brake pad constantly touches the wheel and the motor temperature increases due to the additional resistance. The rear tire can also get loose if the brake is in constant braking position. Avoid constant braking. - Page 10 temperatures from 15-25° Celsius. This is not a failure on the batteries, but normal behavior. Please notice: Even a fully charged battery will run out of power if the electric scooter is not used for a period. Expect a fully charged battery to keep power between 90 and 120 days in off mode, before it is fully discharged. If only partially charged, this period is lower.
-
Page 11: Operational Control
components are firmly secured and not broken before riding, refer to handle assembly and safety instruction. Please read operation guide and warnings of correct techniques for use and braking ● Always wear shoes. ● We highly recommend to always wear helmet/pads for your own protection. ●... -
Page 12: Electric Scooter Riding
Power On: Long press the power button until the display lights up. Power Off: Long press the power button until the display goes out and the system is off. 1. Battery power display: it shows the current remaining battery capacity. 2. - Page 13 Rear brake Press ▲ and ▼ buttons to adjust speed level. Press the accelerator button to accelerate, so you can drive. Press the brake button to brake. When you press the accelerator and electric brake button at the same time, the Electric scooter will automatically brake For safety, the rear wheel brake system must be used when driving at high speed.
-
Page 14: List Of Parameters
Power adapter Rated input voltage (V) 100-240 Rated output voltage (v) Rated current (A) Charging Time(h) Electric scooter Model: SEL-80135 Input: 100V-240V~, 50/60Hz, 2.5A(Max) Output: 42V Max Speed: 20km/h Weight: 12 kg Year Of manufacture: 2022 Max Vehicle Payload: 100kg Battery: 36V/4Ah Power Consumption: ≤... -
Page 15: Electric Scooter Safe Parking
11 Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. - Page 16 WARNING Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 °C and +45 °C. ●...
- Page 17 While riding, your feet must always be on the foot board. ● The Electric scooter can accommodate only one person. ● Do not start or stop abruptly. ● Avoid riding on steep slopes. ● Stop riding the Electric scooter if you hit a solid object (such as a wall or other structure) with it. ●...
- Page 18 Charge the device only at temperatures between 0 °C and +45 °C. ● When charging at lower or higher temperatures, there is a risk that the battery performance will ● be reduced. Therefore, there is a potential risk of injuries and material damage. Store and charge the device in an open, dry area away from combustible materials.
- Page 19 The Electric scooter must only be used on dry and level ground ● For domestic use only ● The Electric scooter may not be used by anyone under age of 14 years ● IMPORTANT! Read carefully and keep for future reference. Any load attached to the handlebar will affect the stability of the vehicle.
- Page 20 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
- Page 21 Use your legs to give speed, for around 100 m, and then connect the charger. The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 3 hours if using this way) Please enter: www.denver.eu to obtain the electronic version of the manual.
- Page 22 WARNINGS Please read the manual completely and the instructions below before using the product. Product names: SEL-80135 Product type: Electric scooter Year of manufacturing: 2022 • Note: ONLY use the supplied charger labelled XHK-800B-4220 with the following output voltage to charge this Electric scooter: 42V – 2A.
- Page 23 Torben Balmer Position: Company: DENVER A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark Date: 17 Feb, 2022 DENVER A/S | Omega 5A | 8382 Hinnerup | Denmark Phone: +45 86 22 61 00 | E-Mail: contact@denver.eu | Web: www.denver.eu VAT.NO: DK18831678...
