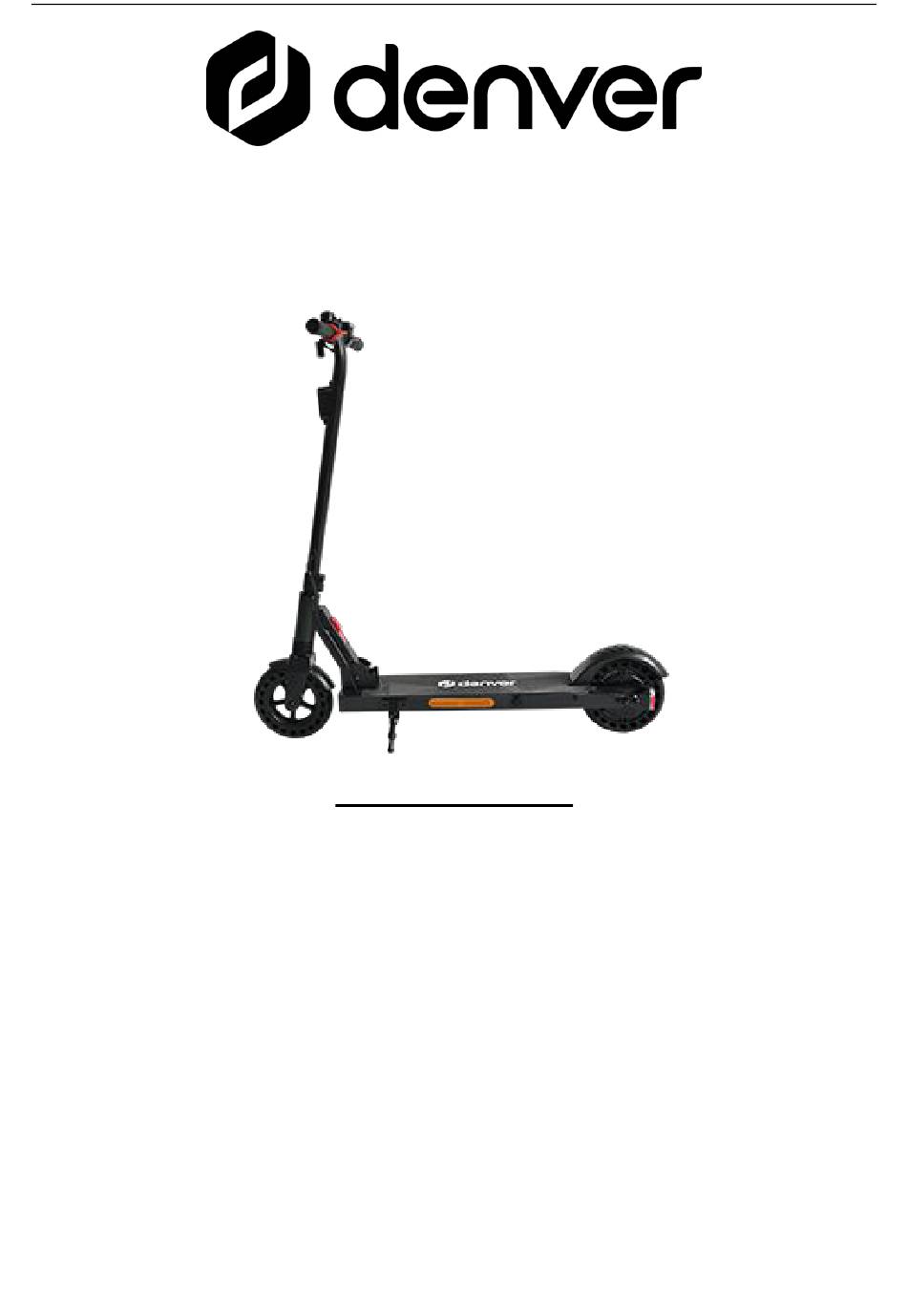

Original manual

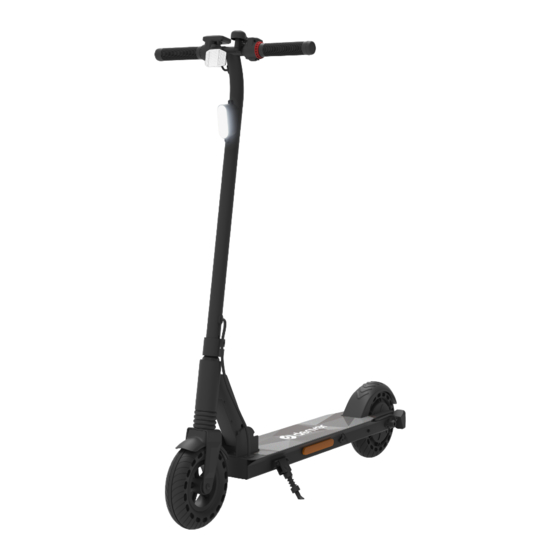

SEL-80140F
facebook.com/denver.eu
Before operating this vehicle, read all the instructions for safe assembly and
operations. User's manual can guide you through the functions and usage of Electric
scooter. Before using this Electric scooter, familiarize yourself with how to operate, so
that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance is only to be used with the power supply unit provided with the
appliance.
This appliance contains batteries that are not replaceable.
Version 1.0
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denver SEL-80140F
Summary of Contents for Denver SEL-80140F
- Page 1 Original manual SEL-80140F facebook.com/denver.eu Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.
-
Page 2: Table Of Contents
Table of Contents 1 Product and Accessories....................3 2 Unfolding and folding the scooter..................4 3 Handle bar assembly ......................5 4 Charging the scooter......................7 5 Intended Use ........................8 6 Safety Instruction......................8 7 Maintenance ........................9 8 Operational control......................12 9 Electric scooter riding ..................... -
Page 3: Product And Accessories
1 Product and Accessories Important! This electric scooter must be charged and stored in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged. -
Page 4: Unfolding And Folding The Scooter
Left handle Right handle 2 Unfolding and folding the scooter Unfold the Electric scooter Stand the Electric scooter on its wheels, and press the unlock clasp. Pull up the handle in a gentle way. The Electric scooter is unfolded as soon as you hear the rod click into place. Fold the Electric scooter Hold the clasp and pull it outward. -
Page 5: Handle Bar Assembly
Dual action safety knob Fold-Unfold Position Push up and press the red button to fold or unfold the Electric scooter. 3 Handle bar assembly Parts inside the packaging: two handlebars Change display angle: Loosen the screw on the handle bar, and rotate the axle to make the handlebar meter screen upwards while the and display screen turn inwards in a horizontal level. - Page 6 Before operating the electric scooter, turn the handlebar grips, and carefully check all the components to make sure that the steering is correctly installed as described above, and that all connecting parts are secure and fully functional. Figure 1 Figure 2...
-
Page 7: Charging The Scooter
4 Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. Charging port... -
Page 8: Intended Use
5 Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 100 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. -
Page 9: Maintenance
Inspect the rear tire, rear brake, and brake pad according to Section 7 of the maintenance specification in this operating instructions. The electric scooter may become unstable if the rear brake is deformed or loose. This is because the distance between the brake pad and the rear wheel becomes too small, possibly leading to a blocked rear wheel. - Page 10 Your electric scooter will require some maintenance so please read and familiarize yourself with this guide. ● Battery maintenance All batteries have a life cycle, and performance will decrease over time, however here are some advice to maximize the life span of the battery. Make sure that the battery is charged at regular intervals, even if you do not use the electric scooter for a long time.
- Page 11 Your electric scooter is made up of moving parts, which in time, will be susceptible to wear and tear. Bearings and screws: The electric scooter has sealed and dustproof bearings so that no lubrication is required. Check the bearings for wear at regular intervals to avoid unsafe riding. Do not jump on and off and do not apply excessive force otherwise to avoid damage to the bearings.
-
Page 12: Operational Control
If your Electric scooter gets dirty, please clean it with a damp cloth only, you may not use pressured water-gun or running water, as this could damage vital parts. It is also possible to use a little toothpaste if the dirt is stuck. Remember to clean with damp cloth after this. Please make sure to keep the electric scooter turned off while cleaning it, and make sure to cover the charging input to avoid problems with the electronics. - Page 13 1. Battery power display: it shows the current remaining battery capacity. 2. Power off automatically: After the display is idle for more than 5 minutes, the Electric scooter automatically turns off. Change display information: When the Electric scooter is on, short press the power button , change the showing data on the display, TIME, ODO, DIS and other characters respectively.
-
Page 14: Electric Scooter Riding
9 Electric scooter riding Rear brake Press ▲ and ▼ buttons to adjust speed level. Press the accelerator button to accelerate, so you can drive. Press the brake button to brake. When you press the accelerator and electric brake button at the same time, the Electric scooter will automatically brake For safety, the rear wheel brake system must be used when driving at high speed. -
Page 15: List Of Parameters
Power adapter Rated input voltage (V) 100-240 Rated output voltage (v) Rated current (A) Charging Time(h) Electric scooter Model: SEL-80140F Input: 100V-240V~, 50/60Hz, 2.5A(Max) Output: 42V Max Speed: 25km/h Weight: 13 kg Year Of manufacture: 2022 Max Vehicle Payload: 100kg Battery: 36V/4Ah Power Consumption: ≤... -
Page 16: Electric Scooter Safe Parking
Denmark www.denver.eu 11 Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. - Page 17 Reason for the weight restriction: Ensuring the rider's safety; ● Avoiding damage due to overload. ● Maximum Vehicle Payload: 100kg. WARNING Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off.
- Page 18 The Electric scooter is designed only for personal entertainment. Avoid operating it ● on public roads/in road traffic. Children, elderly people, and pregnant women are not allowed to ride the vehicle. ● People with limited sense of balance are not allowed to ride the Electric scooter. ●...
- Page 19 Make sure that the Electric scooter, charger, and DC power input of the device are ● always dry. Note: To charge this Electric scooter, use SOLELY the supplied XHK-800B-4220 ● charger with the following output: 42 V -2 A. Using a different charger may cause damage to the device and other potential risks. ●...
- Page 20 The LED indicator on the battery charger lights red during the charging process. ● The LED indicator on the charger will light green when the charging process is ● complete. After charging, disconnect the charger from the mains and the Electric scooter. ●...
- Page 21 therefore risking causing injuries to the user. Cracks, scratches and discoloration in the areas subject to high stresses indicate that the component has exceeded its service life and should be replaced. Traffic in the city has many obstacles to cross such as curbs or steps. It is recommended to avoid obstacle jumps.
- Page 22 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
- Page 23 The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 3 hours if using this way) Please enter: www.denver.eu to obtain the electronic version of the manual.
- Page 24 WARNINGS Please read the manual completely and the instructions below before using the product. Product names: SEL-80140F Product type: Electric scooter Year of manufacturing: 2022 • Note: ONLY use the supplied charger labelled XHK-800B-4220 with the following output voltage to charge this Electric scooter: 42V – 2A.
- Page 25 Torben Balmer Position: Company: DENVER A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark Date: 26 May, 2022 DENVER A/S | Omega 5A | 8382 Hinnerup | Denmark Phone: +45 86 22 61 00 | E-Mail: contact@denver.eu | Web: www.denver.eu VAT.NO: DK18831678...
