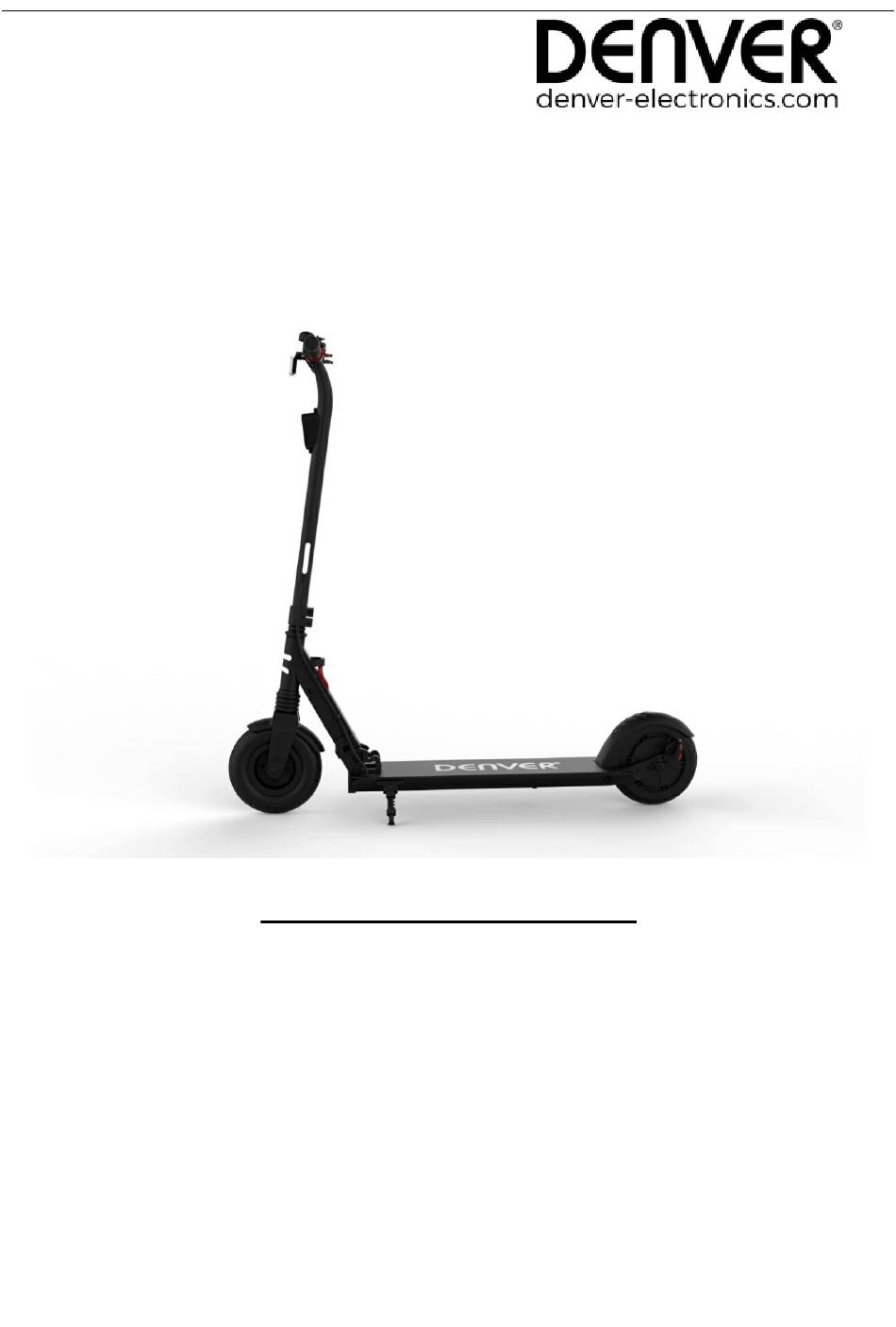

User manual
SEL-80130
facebook.com/denverelectronics
Before operating this vehicle, read all the instructions for safe assembly and operations. User's manual can guide you
through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to
operate, so that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Version 1.0
1
Advertisement
Table of Contents
Related Manuals for Denver SEL-80130
Summary of Contents for Denver SEL-80130
- Page 1 User manual SEL-80130 facebook.com/denverelectronics Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.
-
Page 2: Table Of Contents
Table of Contents Product and Accessories........................3 Unfolding and folding the scooter......................4 Handle bar assembly..........................6 Charging the scooter..........................7 Intended Use............................8 Safety Instruction..........................8 Maintenance............................9 Operational control......................... 11 Electric scooter riding......................... 12 10 List of parameters..........................15 11 Electric scooter safe parking.......................16 12 Safe transportation..........................16 Warnings.............................16... -
Page 3: Product And Accessories
1 Product and Accessories Important! This electric scooter must be charged and stored in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged. Always use the supplied power adapter to charge the electric scooter. -
Page 4: Unfolding And Folding The Scooter
Left handle Right handle 2 Unfolding and folding the scooter Unfolding the scooter Position the electric scooter on its wheels like below. Push the security lock up, then pull the red unlock clasp as indicated in the arrow below. 3) Raise the handle slowly. - Page 5 4) The electric scooter is unfolded as soon as you hear the rod clicks into place. Folding the scooter 1) Push the security lock up, then pull the red unlock clasp as indicated in the arrow below. 2) Press the front tube of the electric scooter downward. 3) The rod clicks audibly into place.
-
Page 6: Handle Bar Assembly
3 Handle bar assembly Parts inside the packaging: two handlebars Change display angle: Loosen the screw on the handle bar, and rotate the axle to make the handlebar meter screen upwards while the and display screen turn inwards in a horizontal level. -
Page 7: Charging The Scooter
4 Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. Charging port... -
Page 8: Intended Use
5 Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 100 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. -
Page 9: Maintenance
As a result, the brake pad constantly touches the wheel and the motor temperature increases due to the additional resistance. The rear tire can also get loose if the brake is in constant braking position. Avoid constant braking. As a result, the tires will not only wear off, but also become hot. This will soften the rubber and it will no longer have the same grip on the road as usual. - Page 10 Expect a fully charged battery to keep power between 90 and 120 days in off mode, before it is fully discharged. If only partially charged, this period is lower. Please make sure the battery does not get above 50° Celsius, or below minus 10° Celsius for a longer period. (e.g. don’t leave the electric scooter in a hot car in summer, do not put battery into fire etc.) Low temperature (e.g.
-
Page 11: Operational Control
Always wear shoes. ● We highly recommend to always wear helmet/pads for your own protection. ● Self-locking nuts and other self- locking fixings may lose their effectiveness. ● All parts and materials of electric scooter cannot be changed, modifications of the scooter are not ●... -
Page 12: Electric Scooter Riding
Power Off: Long press the power button until the display goes out and the system is off. 1. Battery power display: it shows the current remaining battery capacity. 2. Power off automatically: After the display is idle for more than 5 minutes, the Electric scooter automatically turns off. - Page 13 Press ▲ and ▼ buttons to adjust speed level. Press the accelerator button to accelerate, so you can drive. Press the brake button to brake. When you press the accelerator and electric brake button at the same time, the Electric scooter will automatically brake For safety, the rear wheel brake system must be used when driving at high speed.
- Page 14 according to correct polarity, then close the housing. 3) After loading the batteries, attach the LED lamp back to the scooter. Press “PUSH” to turn the LED lamp on or off. Press “PUSH” a first time to make the LED lamp flash. Press “PUSH”...
-
Page 15: List Of Parameters
Power adapter Rated input voltage (V) 100-240 Rated output voltage (v) Rated current (A) Charging Time(h) Electric scooter Model: SEL-80130 Input: 100V-240V~, 50/60Hz, 2.5A(Max) Output: 42V Max Speed: 20km/h Weight: 10.58 kg Year Of manufacture: 2020 Max Load: 100kg Battery: 36V/4Ah Power Consumption: ≤... -
Page 16: Electric Scooter Safe Parking
11 Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. - Page 17 Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 °C and +45 °C. ●...
- Page 18 Do not start or stop abruptly. ● Avoid riding on steep slopes. ● Stop riding the Electric scooter if you hit a solid object (such as a wall or other structure) with it. ● Do not ride in dimly lit or dark places. ●...
- Page 19 Do not charge the device immediately after use. Allow the device to cool down for an hour before ● charging it. If the device is left to other people, it must be charged partially (20 - 50%), not fully. ● Do not remove the device from its package to fully charge it and then put it back in the package.
- Page 20 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
- Page 21 Use your legs to give speed, for around 100 m, and then connect the charger. The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 3 hours if using this way) Please enter: www.denver-electronics.com to obtain the electronic version of the manual.
- Page 22 (20-50% charged). Not fully charged. • When shipped from the factory, the product has often been partially charged. Keep the product in a partially charged state, until it is going to be used. DENVER ELECTRONICS A/S Omega 5A, Soeften, 8382 Hinnerup, Denmark www.denver-electronics.com...
- Page 23 20 Nov, 2020 Inter Sales A/S • Omega 5A, Soeften • 8382 Hinnerup • Denmark • Tel: +45 86 22 61 00 • Fax: +45 86 22 81 00 Homepage: www.denver-electronics.com • A/S Reg. No. 223906 • Vat. No. DK18831678...
