- Page 1 Fieldpiece ® Combustion Analyzer OPERATOR'S MANUAL Model CAT45...
-
Page 2: Table Of Contents
Contents Safety Information Customer Warning and Caution Note Report Description Save and Exit Features Job Archive What’s Included Settings CAT45 Hardware Common Sampling Points Maintenance Operation General SensorVault™ Technology Dust Filter Replacement Inline Water Trap Sensor Replacement Battery Charging Calibration Powering ON Powering OFF Specifications... -
Page 3: Safety Information
Safety Information WARNING Only qualified personnel trained in service • Do not use the analyzer as a safety device. and installation of electric heaters, boilers, and • Always be aware of and test for ambient CO levels. • Do not use unless in a well-ventilated location. furnaces shall use this combustion analyzer •... -
Page 4: Description
Description Features • 4 Year Gas Sensor Warranty The Fieldpiece CAT45 Combustion Analyzer • Large Intuitive Touchscreen provides a hassle-free solution for technicians to • Powerful Trending get the job done quickly, easily, and safely while • SensorVault™ Technology improving system efficiency •... -

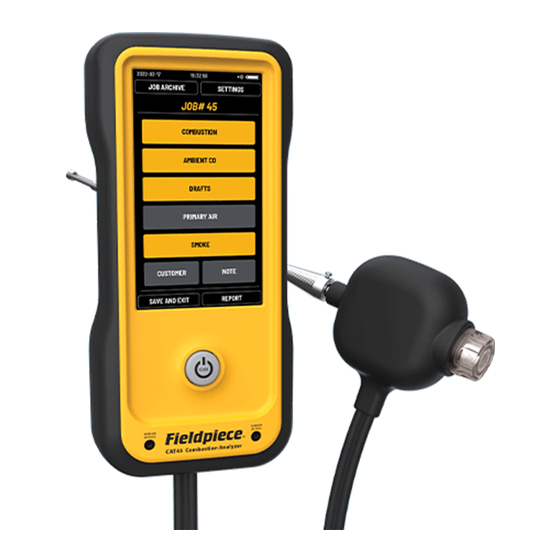

Page 5: Cat45 Hardware

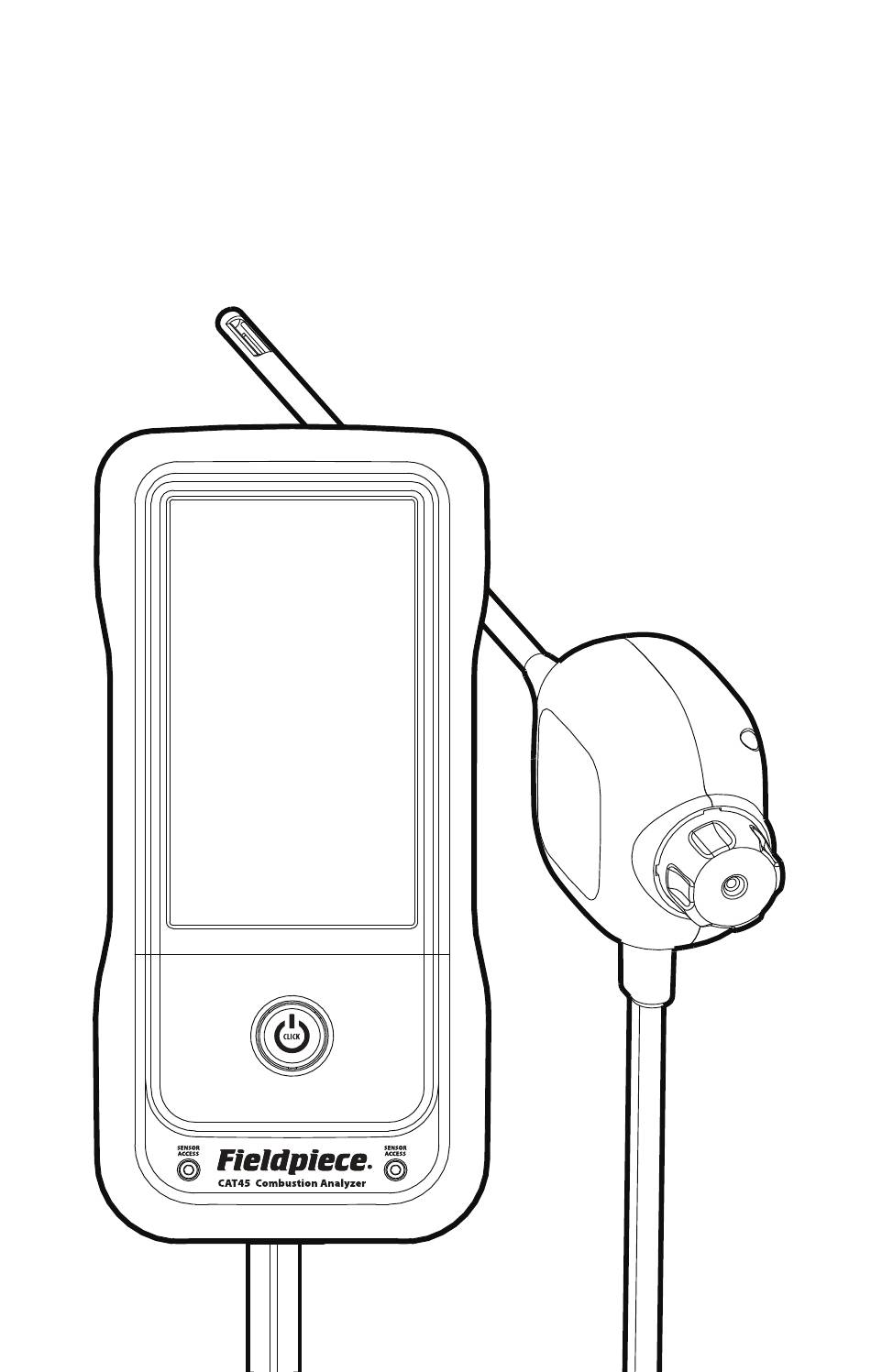

Sensing Point CAT45 (Flue Gas Inlet, Temperature Sensor, Probe Pressure) Hardware Threaded Probe Cone Lock O-ring Filter Filter Cap (1/4 turn) Touchscreen LCD (4) Magnetic Mounts Gas Sensor Cover (2) 2.5mm Hex Sockets Click Power Button (SensorVault™ Technology) USB-C Charging Port Flue Gas Inline... -
Page 6: Common Sampling Points
Common Sampling Points The many types of combustion equipment vary in their design and therefore their ideal sampling points However, there are commonalities that make for useful guidelines when analyzing performance Heed equipment manufacturer instructions above anything mentioned in this manual. High Efficiency •... -
Page 7: Operation
Powering ON Operation Read “Safety Information” section. Ensure inline water trap is sealed. The CAT45 workflow is streamlined to quickly Move probe to fresh ambient air for accurate sensor zeroing. get into your job, complete your testing, send • This step should be executed outside of the test room and away from any vehicle exhaust where traces of CO could be lingering. -
Page 8: Job Menu
Job Menu Reference Ranges When selecting equipment, the reference range icon shows when available. Temperature, O2, CO, and CO air free all have reference The JOB MENU is the heart of CAT45 Each job ranges. These ranges show the generally accepted ranges for the has its own list of saved tests After saving your chosen equipment type. -
Page 9: Ambient Co
Ambient CO Drafts CO is a very dangerous gas and it’s critical that living spaces are CAT45 does not measure draft pressure with the COMBUSTION test, clear of carbon monoxide. but a saved FLUE DRAFT measurement shows during COMBUSTION. Draft pressure measurement is important for safety and performance. Read “Safety Information”... -
Page 10: Primary Air
Primary Air Customer Primary air temperature is measured during startup and is used for Each job has a customer entry. JOB ARCHIVE uses this entry for the COMBUSTION test. This is the temperature of the air going into the searching. You can use this field for whatever you want. For example, combustion equipment. -
Page 11: Report
Turn Job Link System ON to view CAT45 in the Job Link system • Search jobs by customer. mobile app (see “Settings” section). The Fieldpiece Job Link system app • Select a job to open it. is extremely powerful and ever evolving. -
Page 12: Settings
Date and Time: EDIT to adjust date and time. 24 hour time is always used. Date format is always set to Year-Month-Day for easy sorting. Firmware [version]: UPDATE to install new firmware if it becomes available at www.fieldpiece.com Company Information: EDIT to adjust Company Information shown on reports. -
Page 13: Maintenance
Dust Filter Replacement Maintenance Replace the dust (particulate) filter if you notice slow response times or when it’s visually darker Dust Filters: model RFC10 General Ensure the probe has cooled before opening to avoid contact with Wipe with damp cloth to clean the exterior hot gas and liquid that may be within the probe. -
Page 14: Sensor Replacement
Sensor Replacement SensorVault™ technology prolongs the life of sensors, but they eventually need to be replaced When a sensor’s life drops below 5%, a notification appears during startup to inform you it’s time to replace it You can view estimated remaining life at any time in SETTINGS O2 sensor: model RSO2L CO sensor: model RSCOR... -
Page 15: Specifications
Warranty: 1 year (4 years sensors only) Job Link® System Minimum: BLE 4.0 devices running iOS 7.1 or Android™ Kitkat 4.4 Latest compatibility at www.fieldpiece.com Printer: Fieldpiece Wireless Thermal Printer (model CATPR) Certifications: FCC ID: 2ALHRCATX5 Waste Electrical and IC: Industry Canada... -
Page 16: Test Parameters
Test Parameters CO Air Free (Calculated) Range: 0 to 4000 ppm Stack Temperature Best resolution: 1 ppm Range: 32 to 752°F; 0 to 400°C CO2 (Calculated) Best resolution: 0.1°F; 0.1°C Range: 0 to CO2max vol.% Accuracy: Best resolution: 0.1 vol.% ±2.5°F [32°F to 212°F], ±(3.6°F or 1.5%rdg) [213°F to 752°F];... -
Page 17: Limited Warranty
Fieldpiece shall not be liable for loss of use of the analyzer or other incidental or consequential damages, expenses, or economic loss, or for any... - Page 18 (Intentionally Blank) (Intentionally Blank)
- Page 19 CAT45 © Fieldpiece Instruments, Inc 2022; v02...
