Summary of Contents for Fieldpiece CAT85

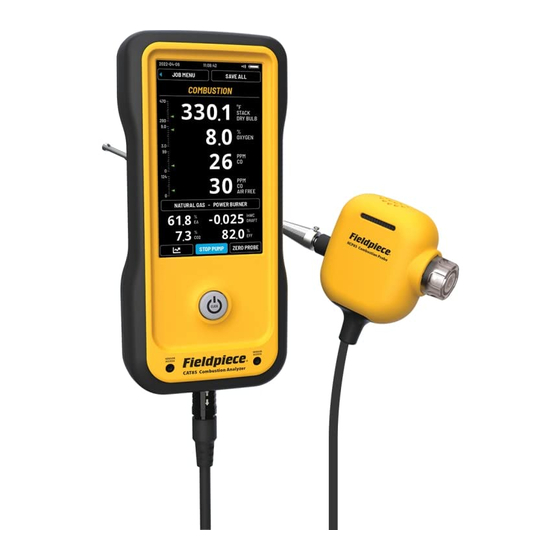

- Page 1 Fieldpiece ® Combustion Analyzer HC OPERATOR'S MANUAL Model CAT85...
-
Page 2: Table Of Contents
Safety Information Manometer Warning and Caution Customer Note Description Report Features Save and Exit What’s Included Job Archive CAT85 Hardware Common Sampling Points Settings Operation Maintenance SensorVault™ Technology General HydroCycle™ Pump Dust Filter Replacement Battery Charging Sensor Replacement Powering ON... -
Page 3: Safety Information
Safety Information WARNING Only qualified personnel trained in service • Do not use the analyzer as a safety device. and installation of electric heaters, boilers, and • Always be aware of and test for ambient CO levels. • Do not use unless in a well-ventilated location. furnaces shall use this combustion analyzer •... -
Page 4: Description
Description Features • 4 Year Gas Sensor Warranty The Fieldpiece CAT85 Combustion Analyzer HC • Large Intuitive Touchscreen provides a hassle-free solution for technicians to • Powerful Trending get the job done quickly, easily, and safely while • SensorVault™ Technology improving system efficiency •... -

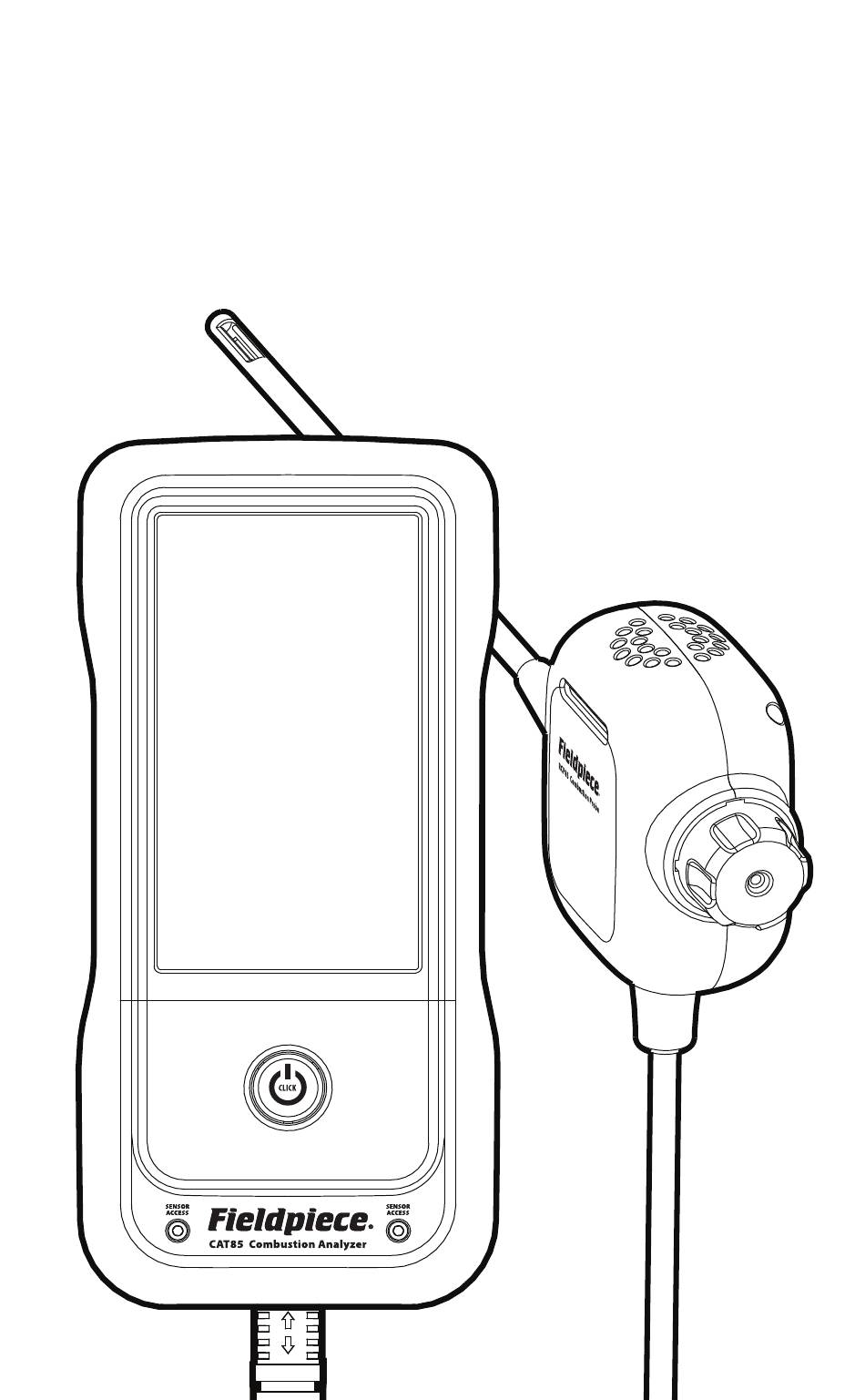

Page 5: Cat85 Hardware
Probe Cone Lock O-ring HydroCycle™ Pump Condensate Outlet Filter Filter Cap (1/4 turn) Touchscreen LCD (4) Magnetic Mounts CAT85 Gas Sensor Cover Hardware (2) 2.5mm Hex Sockets Click Power Button (SensorVault™ Technology) P1 Pressure Port USB-C Charging Port Flue Gas... -
Page 6: Common Sampling Points
Common Sampling Points The many types of combustion equipment vary in their design and therefore their ideal sampling points However, there are commonalities that make for useful guidelines when analyzing performance Heed equipment manufacturer instructions above anything mentioned in this manual. High Efficiency •... -
Page 7: Operation
5V/2A DC CAT85 can be operated while • Insert the CAT85 body upside down into the padded pocket so charging If you have difficulty charging or using the display is fully covered and the cable is free to move. -
Page 8: Job Menu
Read “Safety Information” section. Ensure startup is complete. See “Powering On” section. Trending Mount the CAT85 onto a secure, cool, magnetic surface near the Use trending to check how combustion parameters change over sampling point. time. See “Settings” section for TRENDING SETUP. -
Page 9: Ambient Co
Ambient CO Drafts CO is a very dangerous gas and it’s critical that living spaces are CAT85 saves live draft pressure with the COMBUSTION test, but a clear of carbon monoxide. saved FLUE DRAFT measurement overrides this value. Draft pressure measurement is important for safety and performance. -
Page 10: Primary Air
10. Follow manufacturer’s specification for target inlet and outlet This is good practice when “dirty” combustion is expected in order to fuel pressures before operating equipment. extend the life of CAT85 and equipment. A third party smoke tester is needed. Read “Safety Information” section. -
Page 11: Manometer
Read “Safety Information” section. Ensure startup is complete. See “Powering On” section. Mount the CAT85 onto a secure, cool, magnetic surface near the Ensure startup is complete. See “Powering On” section. test point(s). Select CUSTOMER from the JOB MENU. -
Page 12: Report
Open JOB ARCHIVE from the JOB MENU. Job Link® System Reporting • Sort jobs by date. Turn Job Link System ON to view CAT85 in the Job Link system • Search jobs by customer. mobile app (see “Settings” section). The Fieldpiece Job Link system app •... -
Page 13: Settings
Date and Time: EDIT to adjust date and time. 24 hour time is always used. Date format is always set to Year-Month-Day for easy sorting. Firmware [version]: UPDATE to install new firmware if it becomes available at www.fieldpiece.com Company Information: EDIT to adjust Company Information shown on reports. -
Page 14: Maintenance
Dust Filter Replacement Maintenance Replace the dust (particulate) filter if you notice slow response times or when it’s visually darker Dust Filters: model RFC10 General Ensure the probe has cooled before opening to avoid contact with Wipe with damp cloth to clean the exterior hot gas and liquid that may be within the probe. -
Page 15: Sensor Replacement
Align and push the new sensor straight in. The sensor cover won’t close if the sensor is inserted incorrectly. Tilt the sensor cover lip back into place and fasten screws. Power on CAT85 to check sensor life in SETTINGS. Anything above 95% is normal. Calibration 2.5mm... -
Page 16: Specifications
BLE 4.0 devices running iOS 7.1 or Android™ Kitkat 4.4 Max Pressure: 11.6 psig (321 inWC) causes damage Latest compatibility at www.fieldpiece.com Units: inWC, torr, Pa Printer: Fieldpiece Wireless Thermal Printer (model CATPR) Certifications: FCC ID: 2ALHRCATX5 Waste Electrical and... -
Page 17: Test Parameters
Test Parameters qA (Calculated) Range: 0 to 25% Stack Temperature Best resolution: 0.1% Range: 32 to 752°F; 0 to 400°C Dew Point (Calculated) Best resolution: 0.1°F; 0.1°C Range: 32 to 212°F; 0 to 100°C Accuracy: Best resolution: 0.1°F; 0.1°C ±2.5°F [32°F to 212°F], ±(3.6°F or 1.5%rdg) [213°F to 752°F]; Primary Air Temp ±1.4°C [0°C to 100°C], ±(2.0°C or 1.5%rdg) [101°C to 400°C] Range: 32 to 212°F;... -
Page 18: Limited Warranty
Fieldpiece shall not be liable for loss of use of the analyzer or other incidental or consequential damages, expenses, or economic loss, or for any... - Page 19 CAT85 © Fieldpiece Instruments, Inc 2022; v01...
