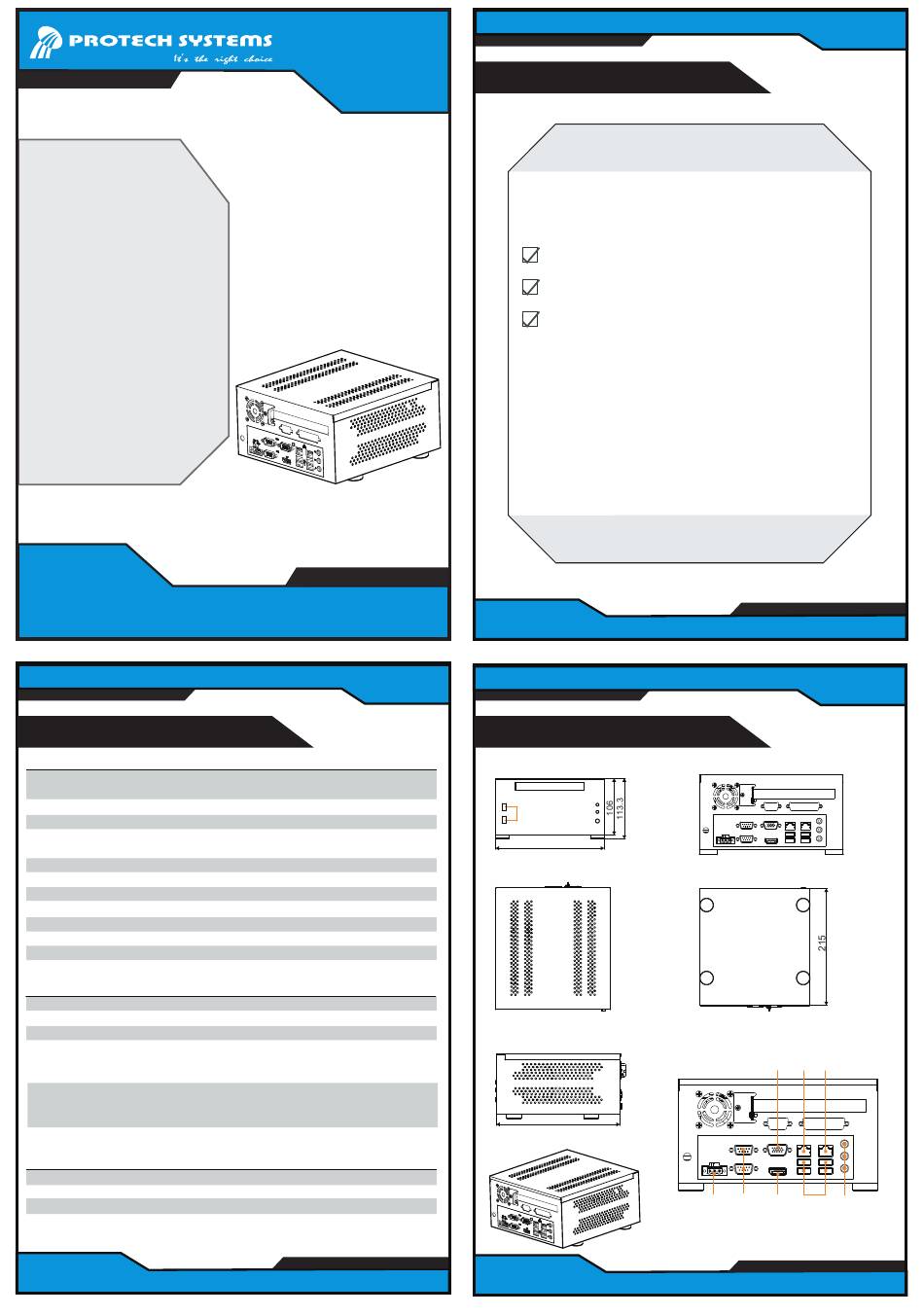

Protech Systems SA-5800 Quick Reference Manual

SA-5800
Quick
Reference
Guide

Specifications

System
CPU Support Intel 6 th / 7
®
processor (up to 35W) (LGA1151)
Chipset Intel H110/Q170
®
Memory Support 2 x DDR4 SO-DIMM sockets (up to 32GB)
Expansion Slots 1 x PCIe (x16) slot
1 x M.2 (2242-D2-M)
Drive Bay 1 x 2.5" HDD / SSD (SATA 3.0)
TPM 1 x TPM 2.0 module (on board for Q170 SKU)
Operating System Win 10 IoT LTSB 2016 / Win 8.1 / Win 7
Power Supply 3 pins terminal block DC In 12V
System Weight 4.2 kg
Dimensions (WxHxD) 203 x 106 x 215 mm
Certificate FCC / CE
I/O Ports
Display 1 x VGA and 1 x DP
USB 4 x USB 3.0 and 2 x USB 2.0
Audio Line In, Line Out, Mic In
LAN 2 x GbE LANs support Wake-on-LAN, PXE
LAN1: Intel
LAN2: Intel
Serial Ports COM1 for RS-232/422/485 selectable by jumper
COM2 for RS-232
COM1/COM2 support +5V / +12V / RI selectable
DIO Port 1 x DIO (8 in / 8 out) (optional)
Environment
Operating Temp. 0°C ~ 40°C (32°F ~ 104°F)
Storage Temp. -20°C ~ 80°C (-4°F ~ 176°F)
Humidity 5% ~ 90%
® th
Note: Intel 7 generation CPU is NOT compatible with Win 7 / Win 8.1.
All Rights Reserved. Copyright 2018
SA-5800
th Gen. Core™ i7/i5/i3/ Pentium / Celeron
®
I219 LM
®
I211 AT
®

Packing Checklist

If you discover any item below are damaged or
lost, please contact your vendor immediately.
SA-5800
Driver/Manual DVD
This Quick Reference Guide
Ver. Q1

System View

Front View
®
2 x USB 2.0
203.5
Top View
Side View
215

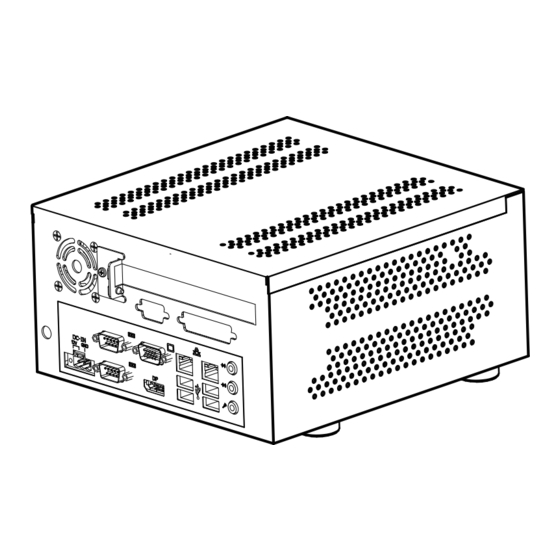

Quarter View
SA-5800
x 1
x 1
x 1
SA-5800
Rear View
Bottom View
I/O View
VGA LAN1 LAN2
VGA
COM2
DC IN
COM1
DP
12V COM2 DP
4 x Line In
COM1
DC In Line Out
USB 3.0
Mic In
