Model:
1800W Solar Battery Charger
MPPT30HV-1
Maximum Power Point Tracker
Page 1 of 8
Operating Instructions
Please read these instructions before use
This revolutionary maximum power point tracker solar charger was designed
using the technology that won GSL Electronics the prestigious "2008 EDN
Innovation award". A simple, compact and low cost alternative. Ideal for
charging batteries with the new low cost and highefficiency grid type panels.

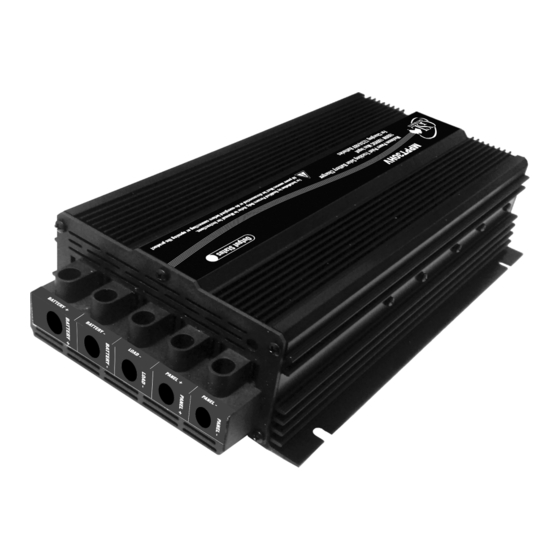

MPPT30HV-1 Unit
PATENT APPLIED FOR - 2010901565
MPPT30HV-1-R5
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia
Advertisement
Table of Contents
Related Manuals for GSL electronics MPPT30HV-1
Summary of Contents for GSL electronics MPPT30HV-1
- Page 1 Please read these instructions before use This revolutionary maximum power point tracker solar charger was designed using the technology that won GSL Electronics the prestigious “2008 EDN Innovation award”. A simple, compact and low cost alternative. Ideal for charging batteries with the new low cost and highefficiency grid type panels.
- Page 2 MPPT30HV-1 Maximum Power Point Tracker Page 2 of 8 Operating Instructions Please read these instructions before use MPPT30HV-1 Specifications Efficiency typical Input voltage 16V to 180V Float - 13.5V / 27V / 54V Absorption - Vented LA batteries 14.5V / 29V / 58V Output voltage Sealed LA batteries 14.2V / 28.4V / 56.8V...
- Page 3 • This MPPT is designed to auto detect 12V, 24V or 48V battery systems. • The MPPT30HV-1 is shipped in a vented battery setting. But if your batteries are sealed or calcium then, BEFORE wiring the MPPT in, follow the CHANGING BATTERY TYPE SETTING PROCEDURE.
- Page 4 • Before connecting the battery always check the battery and PV panel polarity. • The MPPT30HV-1 chassis must be properly earthed - if in any doubt seek qualified advice! (We Recommend at least one of the one of the mounting fixtures is fitted with an external star washer against the heatsink.)
- Page 5 Model: 1800W Solar Battery Charger MPPT30HV-1 Maximum Power Point Tracker Page 5 of 8 Operating Instructions Please read these instructions before use Changing Battery Type Setting Procedure 1.Ensure all the MPPT wires are disconnected. 2.Remove 7 front panel screws and the front panel and slide out cover – see Figure 1.
- Page 6 Model: 1800W Solar Battery Charger MPPT30HV-1 Maximum Power Point Tracker Page 6 of 8 Operating Instructions Please read these instructions before use Figure 2 (Above): Vented Battery Setting Figure 3 (Above): Calcium Battery Setting Figure 4 (Above): Sealed Battery Setting...
- Page 7 30A, so you can expect about 100AH per day which means a 100W load forabout 10 hours daily. 2. Following the same reasoning with a 24V 800W panel the MPPT30HV-1 will supply a daily load of 200W for about 10 hours.
- Page 8 GSL Electronics (GSL) warrants that its products will, under normal use and service, be free of defects in material and workmanship for a period of two (2) years from the date of the original purchase by the customer as marked on the customer’s original invoice. Please refer to our website for full warranty and return information which can be found at http://www.gsl.com.au/faq.html...
