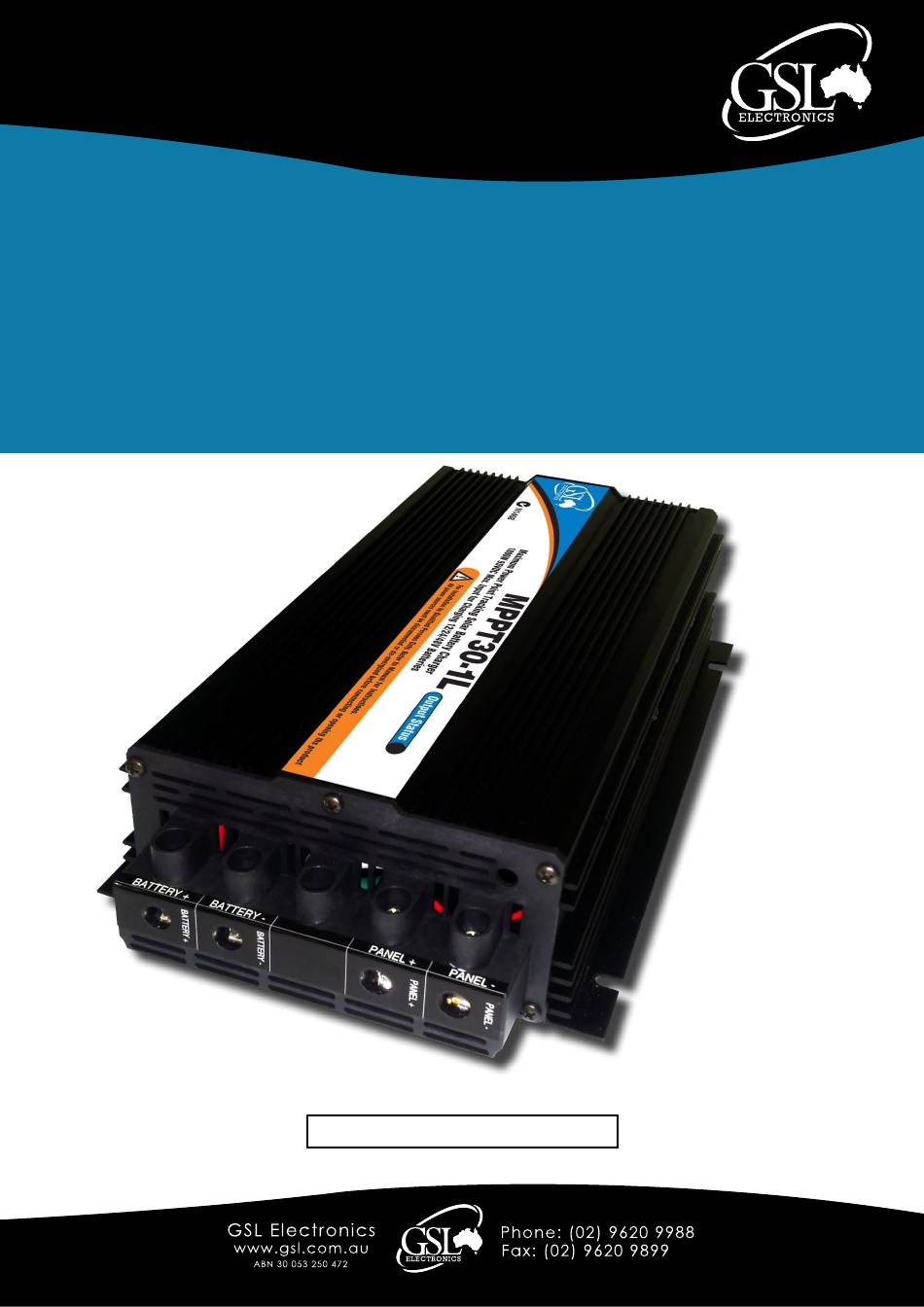

Model:
1700W Solar Battery Charger
MPPT30-1L
Maximum Power Point Tracker
Page 1 of 8
Operating Instructions
Please read these instructions before use
This revolutionary maximum power point tracker solar charger was
designed using the technology that won GSL Electronics the prestigious
"2008 EDN Innovation award". A simple, compact and low cost
alternative. Ideal for charging 12V / 28V / 58V LiFePO
batteries with the
4
new low cost and high efficiency grid type panels.

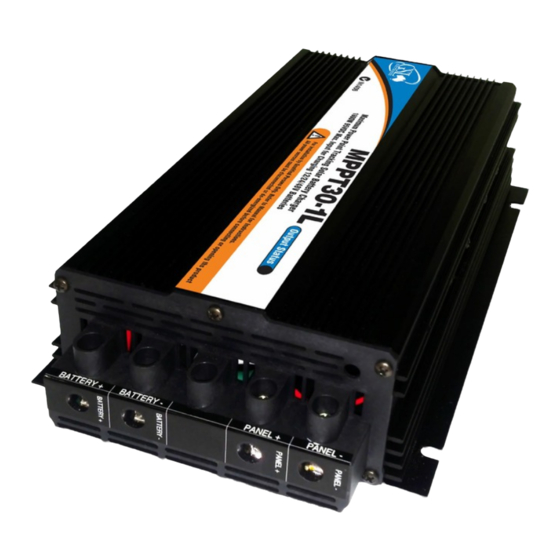

MPPT30-1L Unit
PATENT APPLIED FOR - 2010901565
MPPT30-1L-R3
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia
Advertisement
Table of Contents
Related Manuals for GSL electronics MPPT30-1L
Summary of Contents for GSL electronics MPPT30-1L
- Page 1 Please read these instructions before use This revolutionary maximum power point tracker solar charger was designed using the technology that won GSL Electronics the prestigious “2008 EDN Innovation award”. A simple, compact and low cost alternative. Ideal for charging 12V / 28V / 58V LiFePO batteries with the new low cost and high efficiency grid type panels.
- Page 2 1700W Solar Battery Charger MPPT30-1L Maximum Power Point Tracker Page 2 of 8 Operating Instructions Please read these instructions before use MPPT30-1L Specifications Efficiency typical Input voltage 16V to 95V Default 14.6V / 29.2V / 58.4V Saturation Voltage High Capacity Option 14.8V / 29.6V / 59.2V Long Life Option 14.3V / 28.6V / 57.2V...
- Page 3 The MPPT 30-1L is designed to charge LiFePO from photovoltaic panels. Silicon based panels such as monocrystalline, polycrystalline and amorphous are suitable. MPPT30-1L General Information: • Green LED On – Battery OK. • Green LED Flashing – Battery Low. • This MPPT is designed to auto detect 12V, 24V or 48V battery systems and select a suitable charge regime.
- Page 4 Model: 1700W Solar Battery Charger MPPT30-1L Maximum Power Point Tracker Page 4 of 8 Operating Instructions Please read these instructions before use For optimal performance from panel and MPPT please use the following table to determine the best setup for your situation.
- Page 5 Model: 1700W Solar Battery Charger MPPT30-1L Maximum Power Point Tracker Page 5 of 8 Operating Instructions Please read these instructions before use Changing Battery Type Setting Procedure 1.Ensure all the MPPT wires are disconnected. 2.Remove 7 front panel screws and the front panel and slide out cover – see Figure 1.
- Page 6 Model: 1700W Solar Battery Charger MPPT30-1L Maximum Power Point Tracker Page 6 of 8 Operating Instructions Please read these instructions before use Figure 2 (Above): High Capacity Setting Figure 3 (Above): Long Life Setting MPPT30-1L-R3 Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia...
- Page 7 Model: 1700W Solar Battery Charger MPPT30-1L Maximum Power Point Tracker Page 7 of 8 Operating Instructions Please read these instructions before use MPPT FAQs Q: What is an MPPT? MPPT stands for Maximum Power Point Tracker and is a specialized converter designed to maintain the PV voltage at the level in which it delivers maximum power to the load or battery.
- Page 8 GSL Electronics (GSL) warrants that its products will, under normal use and service, be free of defects in material and workmanship for a period of two (2) years from the date of the original purchase by the customer as marked on the customer’s original invoice. Please refer to our website for full warranty and return information which can be found at http://www.gsl.com.au/faq.html...
