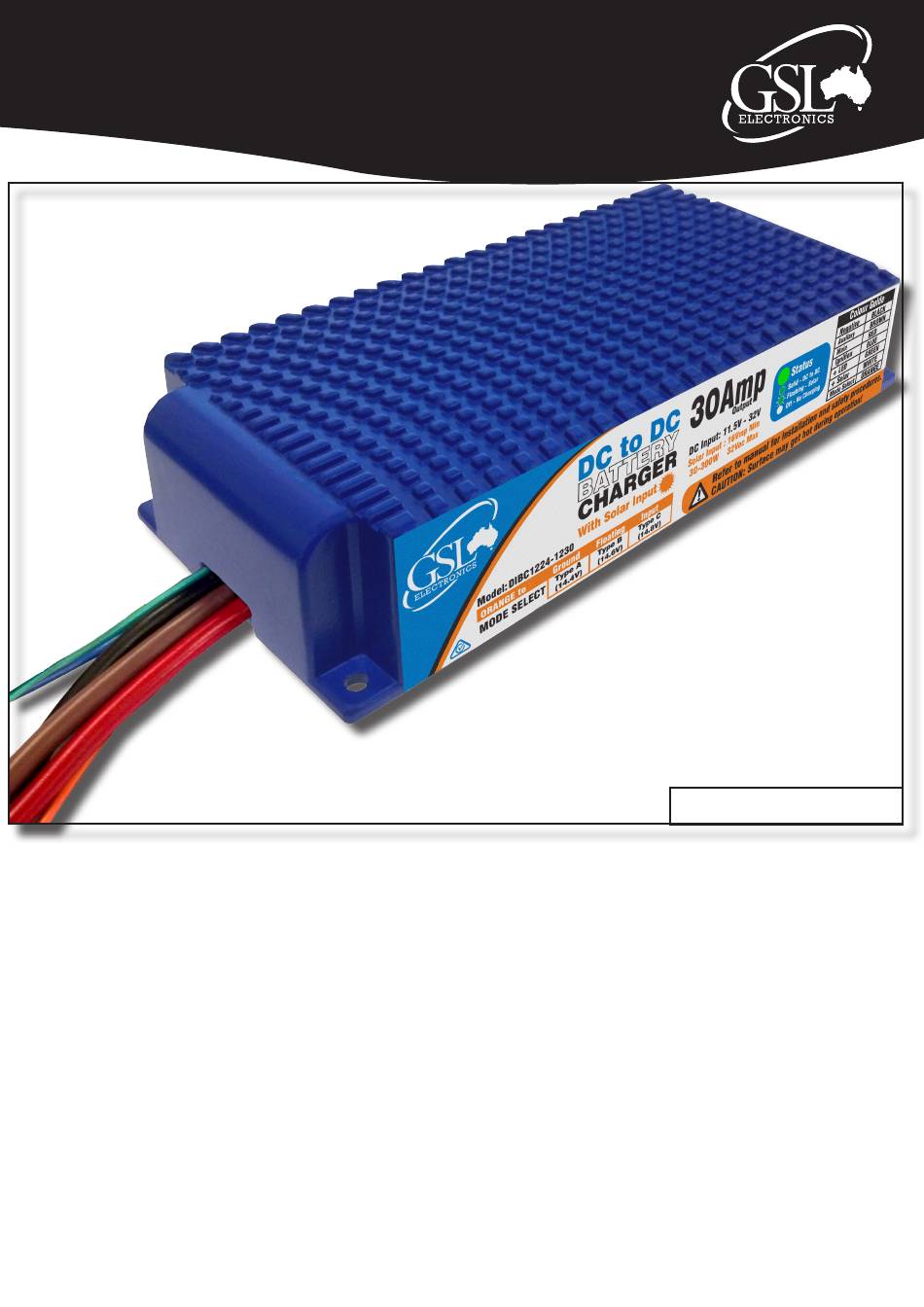

Model:
DIBC1224-1230
Page 1 of 4

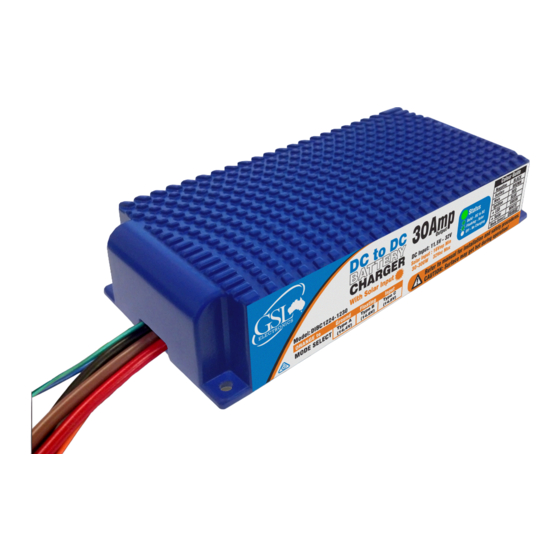

Easy to install and easy to use, this advanced unit is designed to automatically cycle charge auxiliary
12V battery systems. The unit can charge from 12V or 24V vehicle sources as well up to 30A from
solar panels.
Features Include:
• 3 stage, multi-volt DC to DC booster battery charger with solar input
• Dual mode solar controller utilises both PWM & MPPT functions for maximum efficiency
• Output current: 30A max
• Selectable output voltages for lithium, sealed lead acid, vented lead acid, AGM or lead
crystal batteries
• Over current & temperature protections for extra product reliability
• Enhanced protection from moisture, vibration and dust with full polymer encapsulation
• High efficiency: typical >95%
• Precise under voltage protection- no need for external isolator
• Internal and remote LED indicators to show input source
• Very low standby current: <3mA
• Optional battery monitor (12V only)
Page 1 of 4
DC to DC Battery Charger with Solar
12/24VDC to 12V 30A
Please read these instructions before use
Operating Instructions
DIBC1224-1230
DIBC1224-1230-R3
Advertisement
Table of Contents
Related Manuals for GSL electronics DIBC1224-1230
Summary of Contents for GSL electronics DIBC1224-1230
- Page 1 DC to DC Battery Charger with Solar Model: 12/24VDC to 12V 30A DIBC1224-1230 Page 1 of 4 Operating Instructions Please read these instructions before use DIBC1224-1230 Easy to install and easy to use, this advanced unit is designed to automatically cycle charge auxiliary 12V battery systems.
- Page 2 Warning: Ensure that you select the correct gauge and heat resistant wiring suitable for where the unit will be installed 1. Disconnect the battery supply 2. Choose a mounting position - select a position with good ventilation where air can pass freely around the unit. Avoid locations such as fuel lines, where external heat is produced or where it may be exposed to rain. Ensure the unit is installed away from flammable fumes, liquids or materials. 3. Choose an orientation that allows the built-in LED to be visible to confirm operation after installation 4. Connect wires as per our recommended connection sequence above NOTE: The external LED indicator can be installed where it will provide a simple visual indication of the system status Page 2 of 4 DIBC1224-1230-R3...
- Page 3 ( DBM-12 Available in 5M or 10M Length) MODE SELECT Connector for optional Type A (14.4V) DBM-12 Type B (14.6V) Type C (14.8V) To Ignition Switch of vehicle LED indication - internal and external LED This external LED is optional and will mirror the internal LED operation that can be seen in the status LED window on the label. To utilise the external LED, the anode (+) (of the external LED) should be connected to the GREEN wire. The cathode (-) should be connected to the vehicle chassis or the battery negative. Page 3 of 4 DIBC1224-1230-R3...
- Page 4 The customer is entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. The customer is also entitled to have the products repaired or replaced if the products fail to be of acceptable quality and the failure does not amount to a major failure. GSL Electronics (GSL) warrants that its products will, under normal use and service, be free of defects in material and workmanship for a period of three (3) years from the date of the original purchase by the customer as marked on the customer’s original invoice. Please refer to our website for full warranty and return information which can be found at http://www.gsl.com.au/faq.html Model: DIBC1224-1230 Page 4 of 4 Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia DIBC1224-1230-R3...
