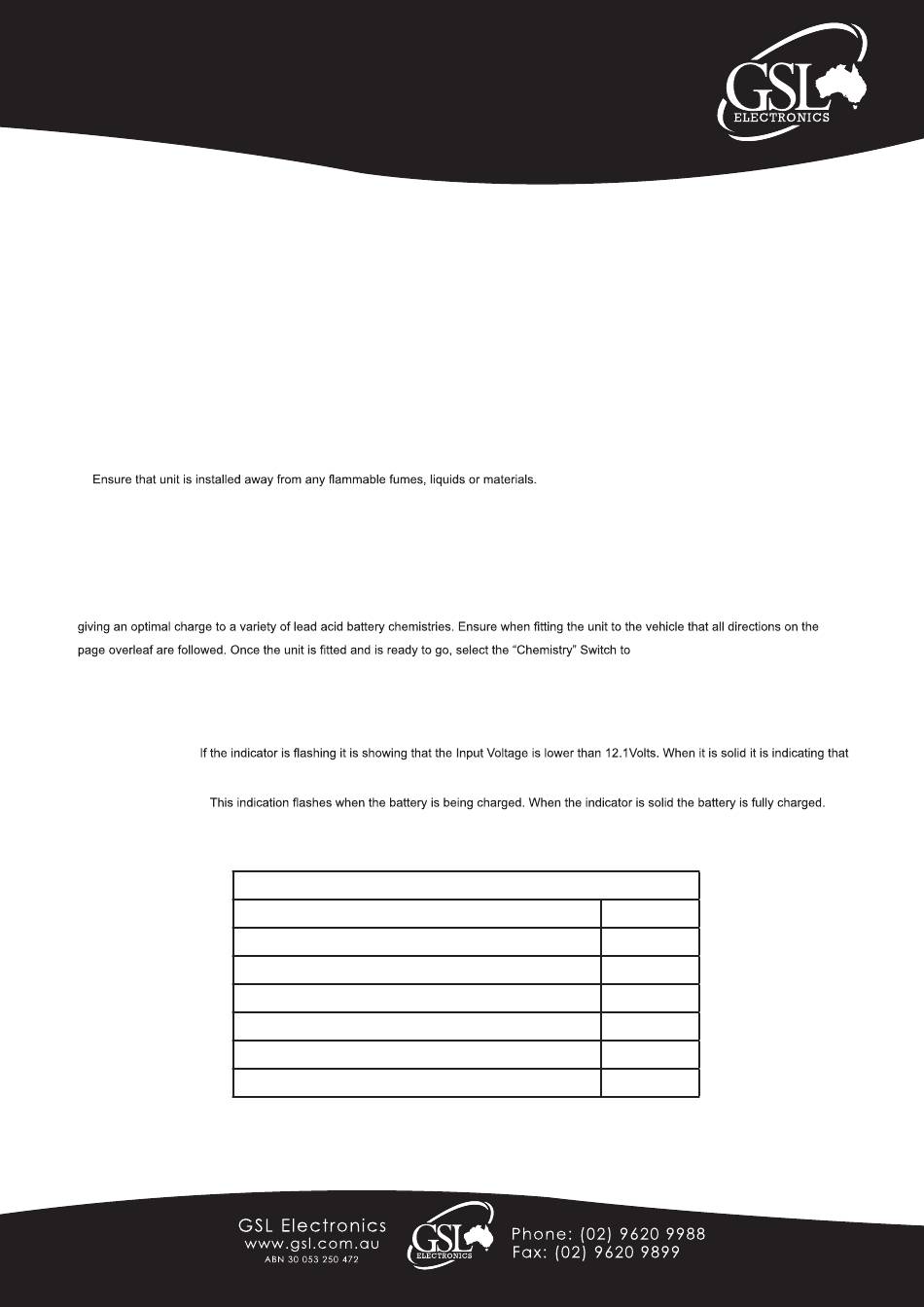

GSL electronics MCB-1225 Operating Instructions

Model:
MCB-1225
Page 1 of 2
Notes: Before installation the user shall determine the suitability of the product to ensure correct application. A large spark can sometimes
be generated during the connection sequence due to the current required to charge the internal capacitors inside the reducer.
The following connection sequence is to be followed: Ground (Black), Input (White), Output (Red), Control (Blue).
1. Disconnect the battery supply.
2. Choose a mounting position. It is recommended to mount the unit inside the vehicle as the unit is not waterproof.
Select a position with good ventilation where air can pass freely around the unit. Avoid locations such as fuel lines or
where external heat is produced e.g. exhaust system or where the batteries are located.
3. Ensure the unit is protected from water spray and other sources of contamination e.g. oil, grease and dust.
4.
NOTE: A large spark can sometimes be generated during connection, due to the current required to charge the capacitors in the charger.

Operation Guide

Thank You for purchasing another quality GSL Product. This Micro Controlled Booster Charger has been designed to overcome the limitations
of most auxiliary charging systems. It is a full 3 stage 25Amp Charger which will operate from voltages as low as 9.2Volts up to 15Volts still
according to your auxiliary battery type.

LED Indicators Guide

Input LED Indicator:
the voltage is above 12.1Volts.
Output LED Indicator:
Multi Chemistry Booster Charger
Please read these instructions before use

Operational Parameters

Maximum Current at Bulk Charge
Lowest operating Voltage
Maximum Operating Voltage
Maximum Charge Voltage for Flooded Cell (LEAD ACID)
Maximum Charge Voltage for A.G.M
Maximum Charge Voltage for GEL
Float Voltage
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia
12 Volt
Operating Instructions
AGM, GEL or Flooded (For Lead Acid)
25Amps
9.2Volts
15Volts
14.6Volts
14.4Volts
14.2Volts
13.5Volts
MCB-R2
