12) Tone Table

Stage 1 Frequency Description
1 340Hz Continuous
800/1000Hz @ 0.25 sec Alternating
2
500/1200Hz @ 0.3Hz sec
3
Slow Whoop
800/1000Hz @ 1Hz Sweeping
4
5 2400Hz Continuous
2400/2900Hz @ 7Hz Sweeping
6
2400/2900Hz @ 1Hz Sweeping
7
500/1200/500Hz @ 0.3Hz Sweeping
8
1200/500Hz @ 1Hz - DIN
9
PFEER P.T.A.P.
2400/2900Hz @ 2Hz Alternating
10
1000Hz @ 1Hz Intermittent
11
800/1000Hz @ 0.875Hz Alternating
12
2400Hz @ 1Hz Intermittent
13
800Hz 0.25 sec on, 1 sec off Intermittent
14
15 800Hz Continuous
660Hz 150mS on, 150mS off Intermittent
16
544Hz (100mS)/440 Hz (400m/S)
17
- NF S 32-001
660Hz 1.8 sec on, 1.8 sec off Intermittent
18
1.4KHz - 1.6KHz 1s, 1.6KHz - 1.4
19
KHz 0.5s - NFC48-265
20 660Hz Continuous
554Hz/440Hz @ 1Hz Alternating
21
544Hz @ 0.875 sec Intermittent
22
800Hz @ 2Hz Intermittent
23
800/1000Hz @ 50Hz Sweeping
24
25 2400/2900Hz @ 50Hz Sweeping
26 Bell
27 554Hz Continuous
28 440Hz Continuous
800/1000Hz @ 7Hz Sweeping
29
30 300Hz Continuous
660/1200Hz @ 1Hz Sweeping
31
32 Two tone chime
745Hz @ 1Hz Intermittent
33
1000 & 2000Hz @ 0.5 sec
34
Aletrnating - Signapore
420Hz @ 0.625 Sec Australian Alert
35
500-1200Hz 3.75 sec /0.25 sec
36
Australian Evac.
37 1000Hz Continuous - PFEER Toxic Gas
38 2000Hz Continuous
800Hz 0.25 sec on, 1 sec off Intermittent
39
544Hz (100mS)/440Hz (400mS)
40
- NF S 32-001
41 Motor Siren - slow rise to 1200Hz
42 Motor Siren - slow rise to 800Hz
43 1200Hz Continuous
44 Motor Siren - slow rise to 2400Hz
1KHz 1s on, 1s off Intermittent
45
- PFEER Gen. Alarm

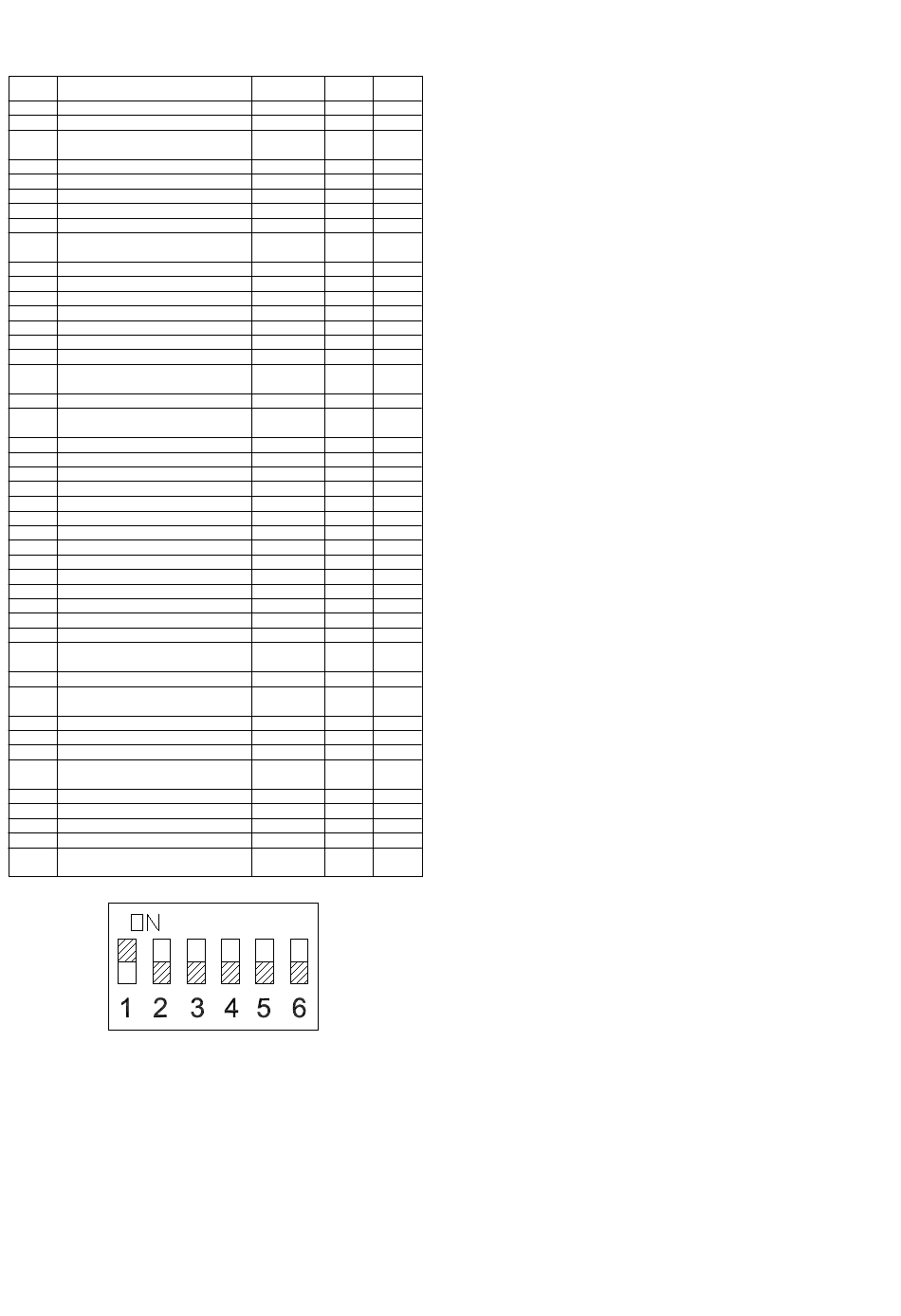

Fig. 9 Dip Switch
1=ON; 0=OFF
Example shown: 100000 = Tone 2 (Default setting)
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D209-00-011-IS-SC
Switch
Stage 2 Stage 3
1 2 3 4 5 6
0 0 0 0 0 0 Tone 2 Tone 5
1 0 0 0 0 0 Tone 17 Tone 5
0 1 0 0 0 0 Tone 2 Tone 5
1 1 0 0 0 0 Tone 6 Tone 5
0 0 1 0 0 0 Tone 3 Tone 20
1 0 1 0 0 0 Tone 7 Tone 5
0 1 1 0 0 0 Tone 10 Tone 5
1 1 1 0 0 0 Tone 2 Tone 5
0 0 0 1 0 0 Tone 15 Tone 2
1 0 0 1 0 0 Tone 7 Tone 5
0 1 0 1 0 0 Tone 2 Tone 5
1 1 0 1 0 0 Tone 4 Tone 5
0 0 1 1 0 0 Tone 15 Tone 5
1 0 1 1 0 0 Tone 4 Tone 5
0 1 1 1 0 0 Tone 2 Tone 5
1 1 1 1 0 0 Tone 18 Tone 5
0 0 0 0 1 0 Tone 2 Tone 27
1 0 0 0 1 0 Tone 2 Tone 5
0 1 0 0 1 0 Tone 2 Tone 5
1 1 0 0 1 0 Tone 2 Tone 5
0 0 1 0 1 0 Tone 2 Tone 5
1 0 1 0 1 0 Tone 2 Tone 5
0 1 1 0 1 0 Tone 6 Tone 5
1 1 1 0 1 0 Tone 29 Tone 5
0 0 0 1 1 0 Tone 29 Tone 5
1 0 0 1 1 0 Tone 2 Tone 15
Tone 5
0 1 0 1 1 0 Tone 26
1 1 0 1 1 0 Tone 2 Tone 5
0 0 1 1 1 0 Tone 7 Tone 5
1 0 1 1 1 0 Tone 2 Tone 5
0 1 1 1 1 0 Tone 26 Tone 5
1 1 1 1 1 0 Tone 26 Tone 15
0 0 0 0 0 1 Tone 2 Tone 5
1 0 0 0 0 1 Tone 38 Tone 45
0 1 0 0 0 1 Tone 36 Tone 5
1 1 0 0 0 1 Tone 35 Tone 5
0 0 1 0 0 1 Tone 9 Tone 45
1 0 1 0 0 1 Tone 34 Tone 45
0 1 1 0 0 1 Tone 23 Tone 17
1 1 1 0 0 1 Tone 31 Tone 27
0 0 0 1 0 1 Tone 2 Tone 5
1 0 0 1 0 1 Tone 2 Tone 5
0 1 0 1 0 1 Tone 2 Tone 5
1 1 0 1 0 1 Tone 2 Tone 5
0 0 1 1 0 1 Tone 38 Tone 34
