Botron B8572 - Megohm Meter Manual

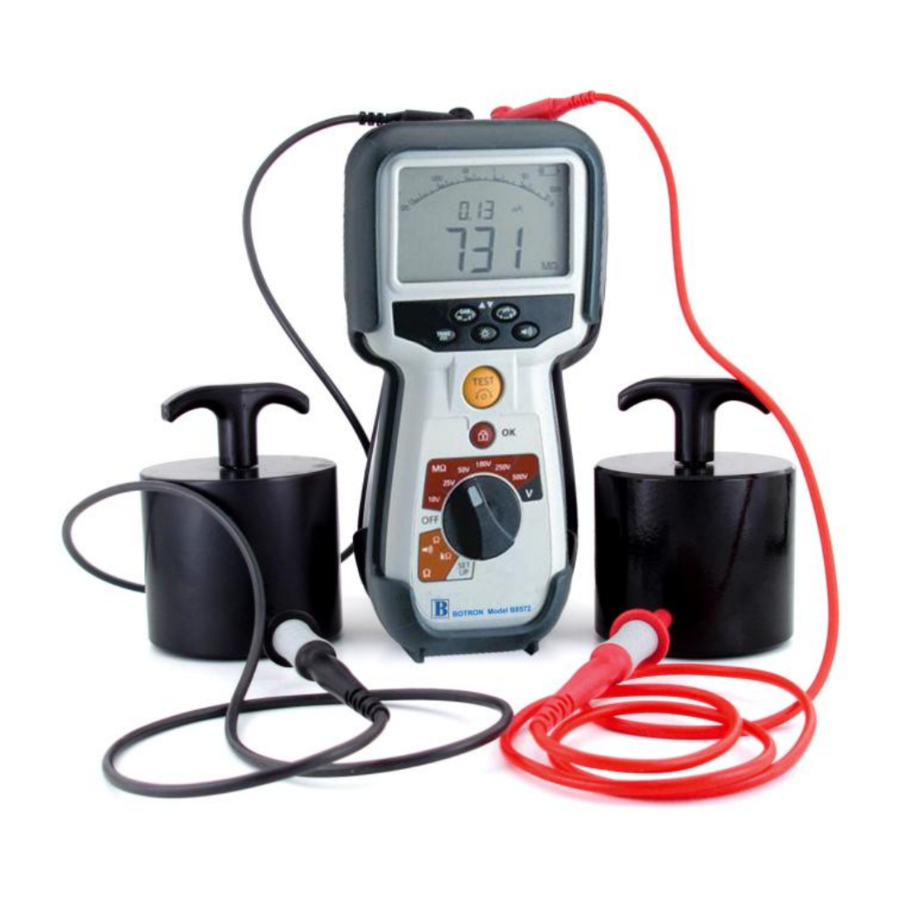

OPERATING INSTRUCTIONS

Always clean bottom of electrodes with alcohol pads
  • Place the B8572 instrument on table top or flat surface, test button a if low battery symbol appears, replace batteries.
  • Take 5lbs weights from case (use care)
  • Plug red/black test leads into test weights
  • Plug other end of leads into B8572
  • Accessories: B8565/20 (one 20' test lead) (For testing surface to ground on floors)

TESTING

  • Types of testing as specified in ESD-S4.1
  1. Periodic testing on installed static safe workstations.
  2. Qualification of workstation materials
  3. Performance of materials

PERIODIC TESTING OF INSTALLED PRODUCTS

Measure RTG (Resistance to Ground)

  • Remove items from surface to be tested
  • Remove ESD sensitive devices
  • Clip one end of test lead from B8572 to grounded point (see fig 2.1)
  • Use one 5lb electrode on other test lead to surface to be tested and push green button

PERIODIC TESTING OF INSTALLED PRODUCTS
fig 2.1

TESTING FLOORS

  • Place one 5lb electrode of floor surface and with B8565/20 20' lead connect to known ground point.

TESTING FLOORS
fig 2.2

(check with your facility staff)

Always clean mat surface with approved cleaner

Note: ESD 7.1 is designed to measure floor materials with resistance of 2.5 x 104 to 1.0 x 1011 ohms.
Note: ESD-S4.1 suggests that a static control surface in the test range of 1 x 106 to 1.0 x 1010 ohms is acceptable.

QUALIFICATION OF INSTALLED STATIC SAFE SURFACE RTT

Measurements of resistance of Top to Top and resistance point to point are the same.

  • Place both 5lb electrodes on surface to be tested.
  • Place no closer than 2" from edge of surface to be tested.
  • Place no closer than 3" from any groundable point. (snaps are a groundable point).
  • Place in the center of mat area it would be area most worn. (about 10" apart)
  • For RTG Fig 2.1 place one lead with insulated plug to groundable point.

QUALIFICATION OF INSTALLED STATIC SAFE SURFACE RTT

REPORTING AND USING TEST RESULTS

Different standards have different requirements please review the standards that you are testing too.
Per ESD 4.1 (work surfaces)
RTG maximum and minimum values measured for resistance-to ground RTG maximum and minimum values measured for point-to-point resistance in ohms.

Per ESD 7.1 (floors)

  • RTG all values in ohms for resistance to ground
  • RTT all values in ohms for point-to-point resistance.
  • Voltage levels tested
  • <106 @ 10 volts
  • >106 @ 100 volts
  • Note: Temperature & Humidity
  • Test dates (work surfaces) quantity see ESD handbook TR 20.20 phg/ 5.3.1.3

REPORTING AND USING TEST RESULTS

PRODUCT OVERVIEW

EXAMPLE:
Reading (115.)= 1.15 x 108
Reading (.096.)= 9.6 x 104
Reading (.96)=.96 x 105
Reading ( 6.3)= 6.3 x 106
Reading (16.3)= 1.63 x 107
Reading (6.13 G)= 6.13 x 109
Reading (>20G)= 2 x 1010
Reading (100G)= 1 x 1011 analog

SPECIFICATIONS

Accuracy range: +/-3% per gegohm
Test voltage: 10,25,50,100,250 & 500volts
Electrodes: Two (2) 5lb weights
Power: Six (6)AA
Auto shut off: Conserve batteries
Lock test: As needed
Resistance range: 100G/100v, 100G/500v analog
20G/100v digital
Continuity test: .01meg-220G
Diode test: .01kohm-10000kohm Size:
Voltage: +/-1 V-500V
Test leads: 2-4' long banana to banana (red & black)
Millivolt test: +/- 1m-1999mV
Low battery: Symbol
Water& dust proof: IP54
Weight: 775gms with boot
Size: 11mm x 220mm x 45mm
Designed to: IEC1010-1
Case: Foam filled
Warranty: Three (3) year

ACCESSORIES

B8563/20: 20' lead for floor testing
B48775: Electrostatic field meter
B48775PVS: Complete periodic verification system for testing ionization. Field meter, charger, plate & case.

shock hazardCaution, Risk of shock.

cautionCaution, Refer to user guide

Equipment protected throughout by Double insulation case (Class II).

Equipment complies with current EU directives.

Equipment must not be connected to installations >500V.

Footwear: Incoming testing on sampling basis should be performed for all static footwear products.
(TR 20.20 pgh. 5.3.3.4)
Floor: Per (TR 20.20 pgh. 5.34.13) Testing and monitoring are required for performance.
Seating: ESD STM 12.1 and (TR 20.20 pgh. 5.3.5.3) recommend testing should be preformed. With a reading of 1 x109 ohms.
Garments: A process of testing garments per ESD STM 2.1, point-to point and sleeve-to-sleeve resistance should be done. see (TR 20.20 pgh. 5.3.3.4)
