Botron B8572 Operating Instructions

OPERATING INSTRUCTIONS
Always clean bottom of electrodes with alcohol pads


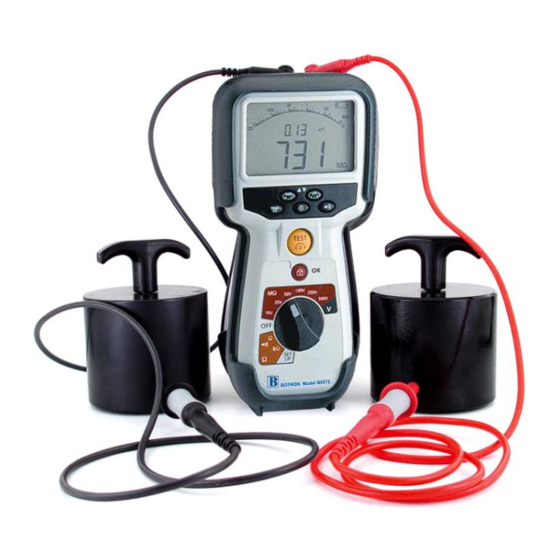

Place the B8572 instrument on table top or
flat surface, test button a if low battery
symbol appears , replace batteries.

Take 5lbs weights from case (use care)

Plug red/black test leads into test weights

Plug other end of leads into B8572

Accessories: B8565/20 (one 20' test lead)
(For testing surface to ground on floors)
TESTING:

Types of testing as specified in ESD-S4.1
1. Periodic testing on installed static safe
workstations.
2. Qualification of workstation materials
3. Performance of materials
4.
PERIODIC TESTING OF INSTALLED
PRODUCTS
Measure RTG (Resistance to Ground)

Remove items from surface to be tested

Remove ESD sensitive devices


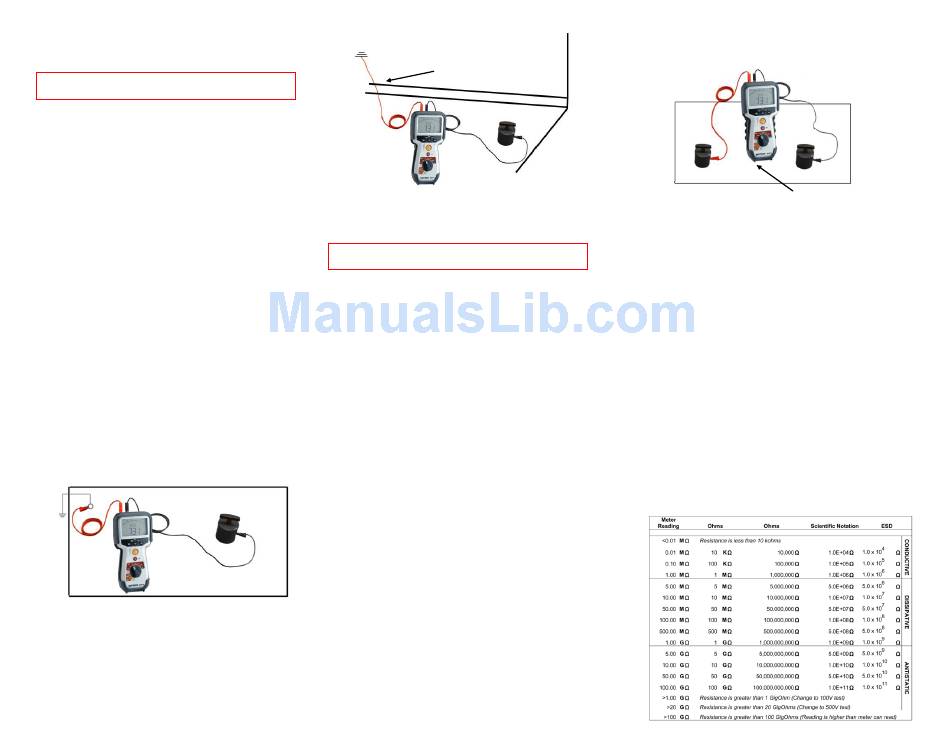

Clip one end of test lead from B8572 to
grounded point (see fig 2.1)

Use one 5lb electrode on other test lead to
surface to be tested and push green button
Mat surface
Fig 2.1
TESTING FLOORS

Place one 5lb electrode of floor surface and with
B8565/20 20'
lead connect to known ground point.
(check with your facility staff)
Fig 2.2
Always clean mat surface with approved cleaner
.
Note: ESD 7.1 is designed to measure floor materials
with resistance of 2.5 x 10
Note: ESD-S4.1 suggests that a static control surface
in the test range of 1 x 10
acceptable.
QUALIFICATION OF INSTALLED
STATIC SAFE SURFACE RT
Measurements of resistance of Top to Top
and resistance point to point are the same.
 Place both 5lb electrodes on surface to be tested.
RTG Test
 Place no closer than 2" from edge of surface to be
tested.
 Place no closer than 3" from any groundable point.
(snaps are a groundable point).
 Place in the center of mat area it would be area
most worn. (about 10" apart)
 For RTG Fig 2.1 place one lead with insulated plug
to groundable point.
To known
ground
4 11
to 1.0 x 10 ohms.
6 10
to 1.0 x 10 ohms is
T
RTT test
Mat surface
Fig. 2.3
10" apart
REPORTING AND USING TEST RESULTS
Different standards have different requirements please
review the standards that you are testing too.
Per ESD 4.1 (work surfaces)
RTG maximum and minimum values
measured for resistance-to ground
RTG maximum and minimum values measured for
point-to-point resistance in ohms.
Per ESD 7.1 (floors)
 RTG all values in ohms for resistance to ground
 RTT all values in ohms for point-to-point resistance.
 Voltage levels tested
 <10
6
@ 10 volts
 >10
6
@ 100 volts
 Note: Temperature & Humidity
 Test dates (work surfaces) quantity see ESD
handbook TR 20.20 phg/ 5.3.1.3
