Botron B9201 Technical Data Sheet
Overview:
The Botron B9201 is designed to monitor resistance of the
operator's path to ground. It comes with a built in audible
alarm and LED, triggering either when the operator falls out of
spec, becomes disconnected, or ground is lost. It is a xed
resistor system and is go no go, there is no calibration needed.
A full time monitoring system is necessary to reduce latency
on the assembly line.
PROPERTIES
SPECIFICATIONS
Low Fail = < 675K
Operator:
Pass = >750K to <8Meg
Fail High = >8.5Meg
+/- 10%
.88" x 1.75" x 1.25"
Size:
Mounting:
Screws on
1 Meg Ohm
Safe Condition:
6.5 Meg Ohm
Fault Condition:
110v std. 230v - opt. Power pack
Power:
green (safe), red (fault)
Visual Alarm:
Operation:
Active when plugged in
PART NUMBERS
B9201 One Operator Monitor
Product Notes and Features

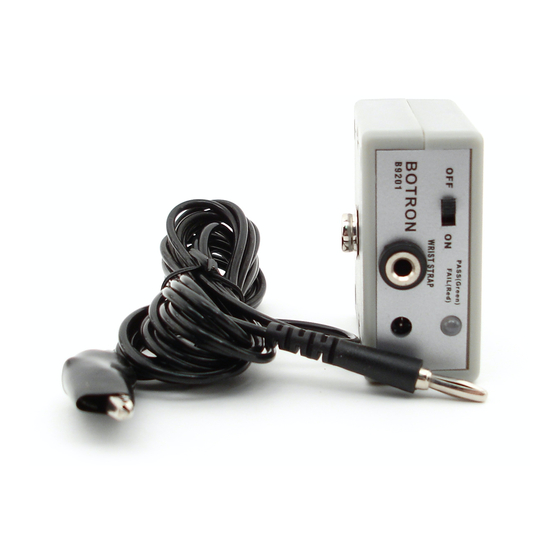

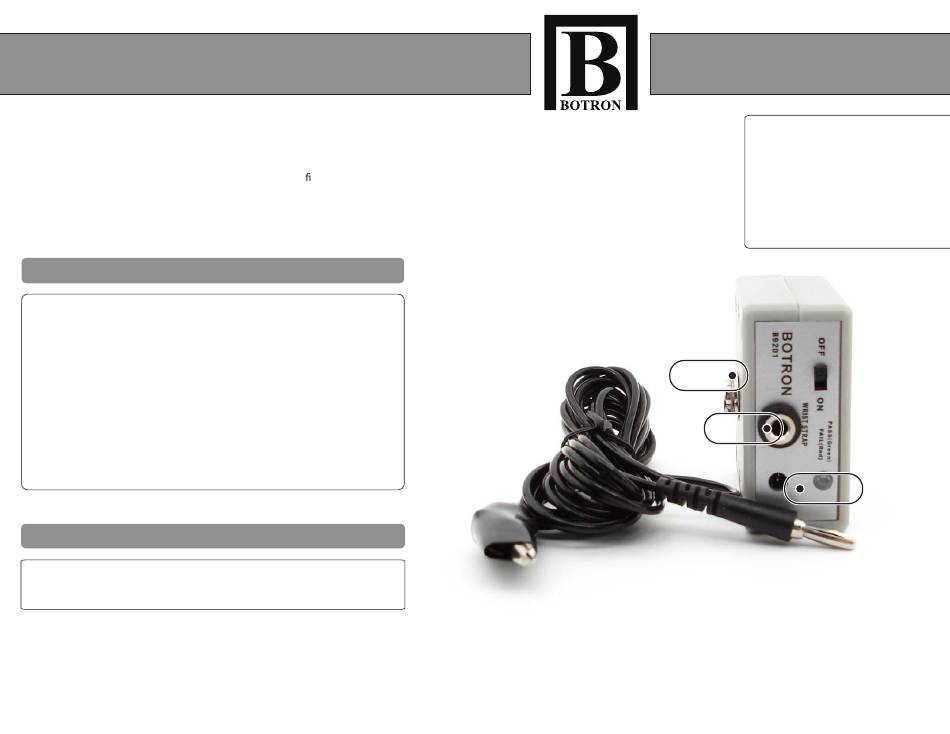

1) Snap for Direct Attachment
to Table Mat
2) Banana Jack Input
3) Pass/Fail LED Alarm
1
2
3
