Summary of Contents for Bush Baby BB4KWiFiOutlet

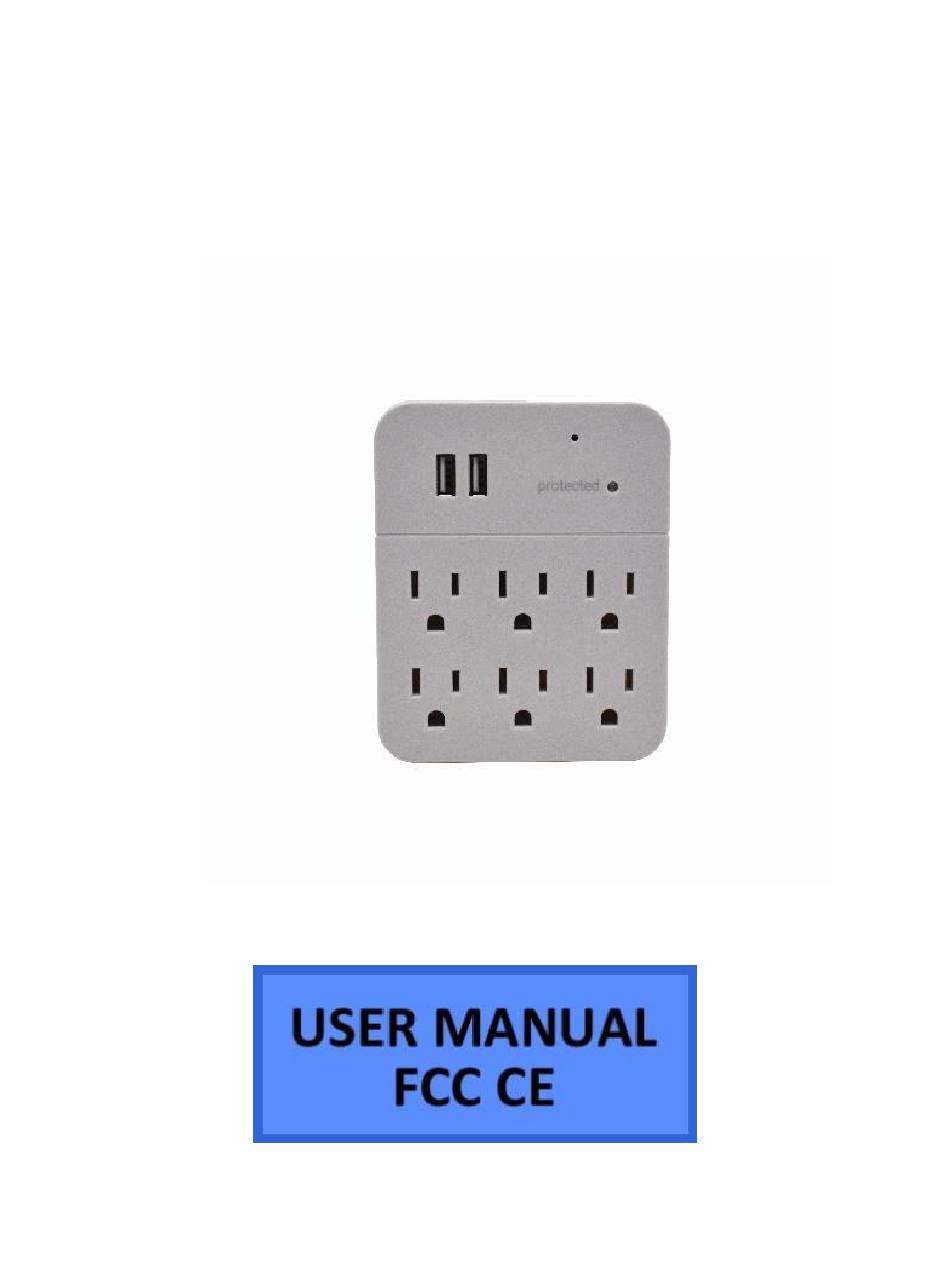

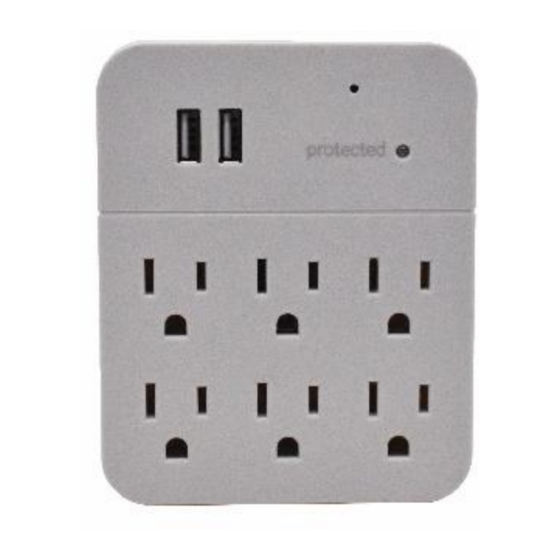

- Page 1 Bush Baby Outlet with 4K Wi-Fi Hidden Camera SKU: BB4KWiFiOutlet Version 2.0...
- Page 2 THANK YOU FOR PURCHASING THE BB4KWIFIOUTLET Please read this manual before operating the BB4KWiFiOutlet and keep it handy. Your purchase should include: 1 x BB4KWiFiOutlet 1 x Manual 1 x 128GB Micro SD Card 1 x Micro SD Card Reader...
- Page 3 Version 2.0...
- Page 4 BEFORE YOU GET STARTED Version 2.0...
- Page 5 IMPORTANT INSTRUCTIONS BEFORE GETTING STARTED 1. In order to operate your device, you must download the LookCamPro app to your smartphone or tablet. o Android: www.minigadgets.com/lcpdroid o iPhone: www.minigadgets.com/lcpios 2. This device can only make one Wi-Fi pairing attempt and then the TUT signal will disappear.
- Page 6 This device will only connect to routers that produce a 2.4 GHz signal. Please contact your internet service provider to determine if your router is 2.4 or 5.8 GHz. If your wireless network has a password using any special characters, please change it so it is using only numbers/letters.
- Page 7 Note: If you are using this anywhere other than the US, you will need to purchase a converter in order to use the device and avoid damaging the product. Because different countries use different voltages in their electrical wiring, you will need a converter that adapts to the current in your particular country.
- Page 8 STEP ONE – ADDING THE DEVICE TO THE APP & PAIRING WITH WI-FI FOR REMOTE VIEWING Note: If you do not want to use your device for remotely live streaming/video playback, you can still use it as a DVR unit. You will be required to connect your phone to the device’s wi-fi signal in order to view the live stream, play videos back via the app, or modify camera...
- Page 9 professionally hardwired into the existing electrical system 2. Turn on your phone’s Wi-Fi and wait up to 5 minutes for the device to generate a Wi-Fi signal (this will match the UID on the sticker, ex: TUTxxxxxxx) 3. Once the device generates its Wi-Fi signal, connect to it via the Wi-Fi settings on your phone.
- Page 10 4. After connecting, open the LookCamPro App. 5. The app will automatically detect the camera, and display an “AP added device, whether the network?” message. Select “Sure”. 6. The app will take you to a new screen to select the network you wish to pair the device with.
- Page 11 change this to prevent any unauthorized viewing of your camera. The default password is 6666. IMPORTANT: You must keep this password in a safe place. If you ever need to access the camera from a different phone or reinstall the camera app, this password will be required to re-add the camera.
- Page 12 added the device to the LookCamPro app. Do not continue without completing step one. Note: Your device will come with a 128GB MicroSD card already installed in it. To get started with capturing video, follow the steps below. 1. Open the LookCamPro application on your smartphone or tablet.
- Page 13 controls the video length for the ‘Throughout the Video’ and ‘Timing Video’ video modes. For controlling video length on the ‘Alarm Video’ video mode, please refer to Step 3) Video Stream – This controls what resolution your unit records videos at. (Note: These devices can currently only record in 720P) ...
- Page 14 Step Three for enabling motion detection) Timing Video – The unit will record continuously 24/7 to the microSD card only between the specified start and end times (time is in military format) Record Audio – Enable/disable this for audio along with video recording.
- Page 15 SETTING UP MOTION DETECTION 1. Open the LookCamPro application on your smartphone or tablet. 2. Press the settings wheel on the far right This is the ⚙ icon 3. You will be taken to a screen with multiple options. Select the ‘Alarm’ option.
- Page 16 Mobile Detection Video – This feature will not apply to your device and can be on or off. Alarm Recording Time(s) – This is how long of a video clip will be taken when motion is detected. This can be set between 10 and 60 seconds.
- Page 17 STEP FOUR – CHANGING THE DEFAULT DEVICE PASSWORD Note: For security purposes, we strongly recommend that you change your device’s default password from 6666. If you change your device’s password, make sure to store the password securely. If you ever need to re-install the application or add the device to another phone, you will need the new password.
- Page 18 5. Put in your desired password in both the ‘New pwd’ and ‘New pwd again’ fields, and then select ‘Done’. Note: Your password must be between 4 and 31 digits. Note: It is highly recommended you enable the ‘show password’ option to reveal your text as it is typed.
- Page 19 viewing of your camera. The default password is 6666. Note: This requires you to have completed Step One. 1. Open the LookCamPro application 2. Tap your finger on your device listing and the live stream should open. Options will be explained below. ...
- Page 20 o Note: This option is not applicable to all units because not all units have night vision, but they use the same application. T Icon – This icon will not apply to your device. Can be on/off. 2K Icon – This allows you to choose your live streaming resolution.
- Page 21 ‘Hold to Talk’ Microphone Icon – This button does not apply to your device because it does not come equipped with a two-way microphone. ‘Audio’ Speaker Icon – This will enable you to listen to the audio while viewing the live stream.
- Page 22 1. Open the LookCamPro application and you will see four tabs at the bottom of the main menu: Camera, Photo, Video, and Playback. These will be explained below. Note: If you do not see these four tabs, please press the ≡ icon in the top left corner once.
- Page 23 Note: To delete recordings from the microSD card, hold your finger down on the video selection, and when it asks ‘Are you sure to delete?’, choose ‘Sure’ Version 2.0...
- Page 24 TRANSFERRING FILES TO YOUR PC 1. Remove the MicroSD Card from your device (see page 4). 2. Use the MicroSD Card Reader to connect the MicroSD card to your computer. 3. Locate “Removable Disk” inside the (My) Computer folder. AutoPlay Removable Disk > Open folder to view files Version 2.0...
- Page 25 Or… Go to Start > Computer > Removable Disk 4. Open the Removable Disk drive. 5. Open the folder containing the files. 6. Double click the file you want to view. Note: You can easily manage your MicroSD card recordings using the phone app. Version 2.0...
-
Page 26: Troubleshooting
TROUBLESHOOTING THE DEVICE WON’T TURN ON Make sure the plug is securely connected to the device. o Double check that the connection is secure. o If battery operated, make sure the battery is fully charged. o If plugging the unit in, try a different cable or AC adapter. - Page 27 with the ‘Format SD Card’ button in the ‘Record’ section o This will be in the ‘SD Card Setting’ section on iOS devices HOW TO REMOTELY FACTORY RESET THE DEVICE You can factory reset the camera from the app by opening the app, selecting the settings wheel icon (⚙...
- Page 28 A factory reset will restore all settings to their original factory settings. Most of the time, you will need to send the device in for us to perform a factory reset. Please contact us at 770-694- 6921 for assistance. Choose the ‘Minigadgets’...
- Page 29 THE APP SAYS MY CAMERA IS “OFFLINE” Ensure the app is “enabled” as a “local network” in your phone’s privacy settings. (Go to “Settings”, tap “Privacy”, tap “Local Network”, and ensure the toggle next to the LookCamPro app is green/enabled.) OTHER PROBLEMS ...
- Page 30 Technical Support and product assembly located in the United States. Technical Support: 770-694-6921 Monday-Friday 9 AM – 6:00 PM EST Leave Us A Review! SPECIFICATIONS Feature Specification Version 2.0...
- Page 31 Streaming Resolution 4K, 2K, 1080P, 720P Recording Resolution 720P Video Format .AVI Viewing Angle 90° MicroSD Card Storage Up to 128GB MicroSD Location External Slot Video Consumption 2 Hours = 1GB Playback Software Loop Recording Operating Systems Android, iOS Phone App LookCamPro Max File Length –...
- Page 32 QUALITY CONTROL CHECKLIST ☐ Instruction Manual ☐ MicroSD Card Reader ☐ BB4KWiFiOutlet ☐ 128GB MicroSD Card ☐ Tweezers Quality Control Technician: _______________________________________ Date: __________________________________ Version 2.0...
