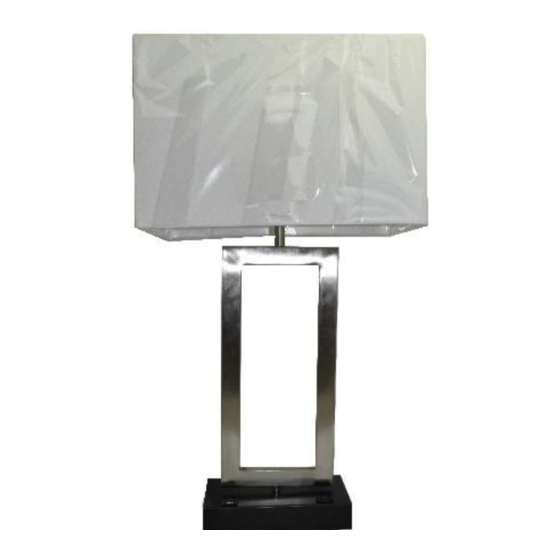

Bush Baby BB4KWiFiLamp User Manual

Lamp with 4k wi-fi hidden camera
Hide thumbs

Advertisement

Quick Links

Download this manual

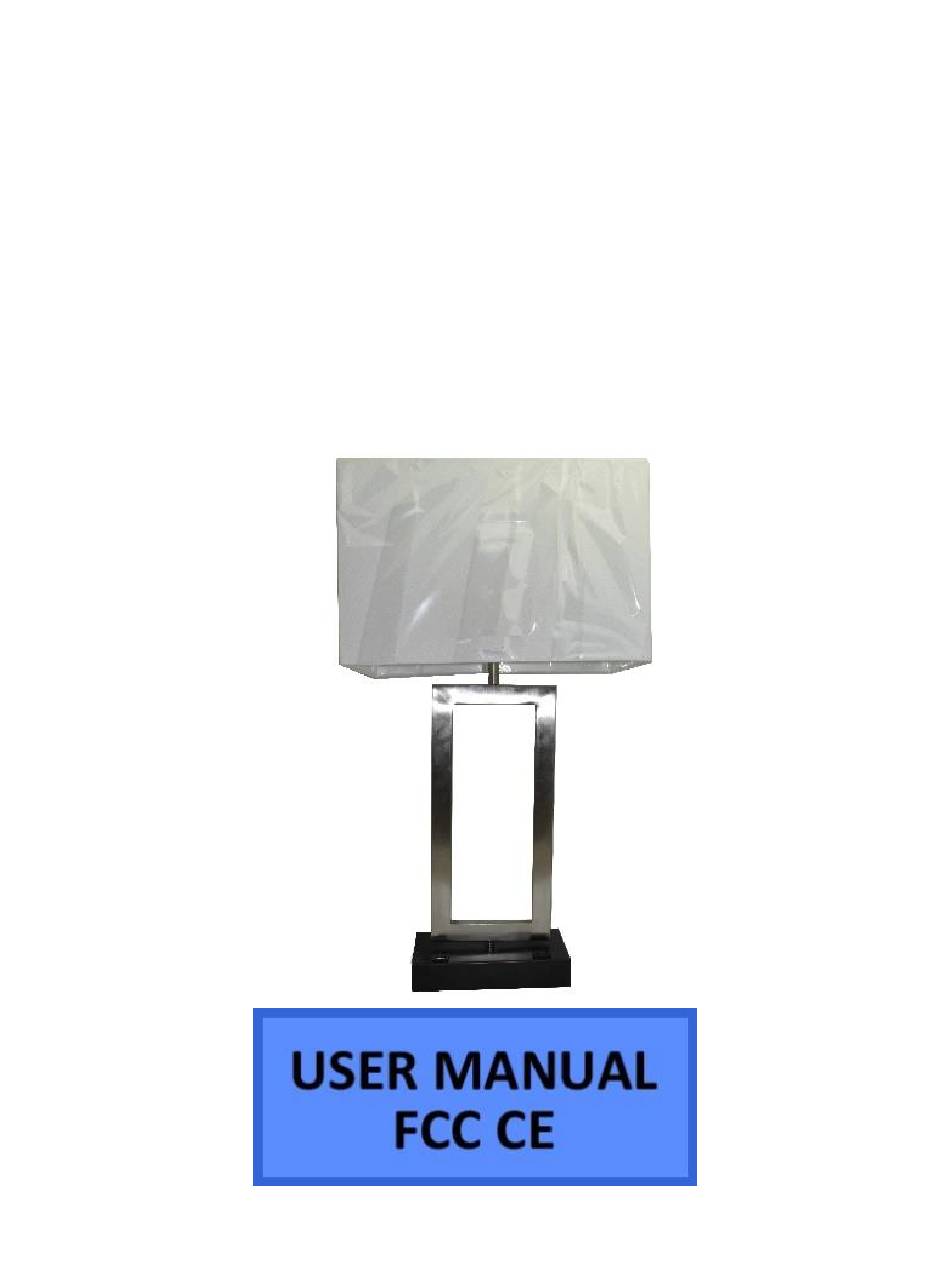

Bush Baby Lamp with 4K Wi-Fi
Hidden Camera
SKU: BB4KWiFiLamp
1
Version 1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BB4KWiFiLamp and is the answer not in the manual?

Questions and answers

Related Manuals for Bush Baby BB4KWiFiLamp

Summary of Contents for Bush Baby BB4KWiFiLamp

  • Page 1 Bush Baby Lamp with 4K Wi-Fi Hidden Camera SKU: BB4KWiFiLamp Version 1.1...
  • Page 2 THANK YOU FOR PURCHASING THE BB4KWIFILAMP Please read this manual before operating the BB4KWiFiLamp and keep it handy. Your purchase should include: 1 x BB4KWiFiLamp 1 x Manual 1 x 128GB Micro SD Card 1 x Micro SD Card Reader...
  • Page 3 GET FAMILIAR WITH YOUR BB4KWIFILAMP Version 1.1...
  • Page 4 Version 1.1...
  • Page 5 OPERATING THE BB4KWIFILAMP BEFORE YOU START 1. First you must download the P2PLiveCam app from the Google Play Store or the iPhone App Store. o Android: https://play.google.com/store/a pps/details?id=com.g_zhang.my p2pcam&hl=en o iPhone: https://itunes.apple.com/us/app /p2plivecam/id789572618?mt=8 2. If you wish to enable SD Card recording, you have a MicroSD Card inserted into the unit.
  • Page 6 order to use the AC wall plug in and avoid damaging the product. Because different countries use different voltages in their electrical wiring, you will need a converter that adapts to the current in your particular country. CONNECTING TO YOUR DEVICE DIRECTLY [PART In order to view your device remotely, you must complete the following two-part sequence of steps.
  • Page 7 looks like KXXXXX- XXXXXXXXXXXX-XXXXXX. 3. Once the device generates its Wi-Fi signal, connect to it via the Wi-Fi settings on your phone. NOTE: Some Android devices may produce a warning that the network has no internet access. If you see this, choose to connect to the network anyway.
  • Page 8 7. Tap on the New Device and all the camera’s information will be filled in. Note: The default password is 8888. 8. Tap “OK”. 9. Now you will see the app listed in the home screen of the app and it will show “Online”.
  • Page 9 the device it will most likely need to be sent to us via an RMA (return merchandise authorization). If you have any questions regarding this please call us. HOW TO USE YOUR DEVICE AS A DVR UNIT Your device can still record even without connecting it to your home Wi-Fi network.
  • Page 10 You will only be able to view the recordings once you are back in range of the device. CONNECTING THE DEVICE TO YOUR WIFI FOR REMOTE VIEWING [PART 2] If you would like to live-view your camera stream from anywhere, you will need to complete this part 2 for connecting to your home Wi-Fi network.
  • Page 11 5. A dialog will pop up to confirm the network name and password you entered. Make sure these are correct and then press OK. 6. The device will reboot. You will know the device has connected to your Wi-Fi successfully when the camera shows Online in the home screen of the app.
  • Page 12 has failed. Please repeat steps 3- 7 above and pay careful attention to the network password you entered. 8. The device is now connected to your Wi-Fi and may be accessed from anywhere that your phone has an internet connection. HOW TO ADJUST THE VIDEO QUALITY OF THE STREAM 1.
  • Page 13 1. To set up the motion alarm, return to the home screen of the app and tap the settings gear next to your camera and then choose “Device Settings”. o For Android devices the option will be “Advanced Config”. 2. Tap “Alarm Config”. 3.
  • Page 14 o NOTE: You must have an SD Card inserted into the device for this to work. See the “Before You Start” section for instructions. RETRIEVE THE FILES TO YOUR PC 1. Remove the MicroSD Card from your device. See page 4 to locate the slot on your device.
  • Page 15 Or… Go to Start > Computer > Removable Disk 4. Open the Removable Disk drive. Version 1.1...
  • Page 16 5. Open the folder containing the files. 6. Double click the file you want to view. Note: You can easily view, control, and delete your MicroSD card recordings using the phone app. If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
  • Page 17 the save the file to. Right click your mouse, and then chose “Paste.” This will copy the file to your computer.  To delete a file, right click your mouse on the file name and choose “Delete” from the menu. You can quickly select all of the files by pressing “CTRL+A”...

  • Page 18: Troubleshooting

    TROUBLESHOOTING THE DEVICE WON’T TURN ON  Make sure the device is plugged into an electrical outlet. CANNOT RECORD TO SD CARD  Confirm you have inserted a MicroSD Card into the unit. CAN’T FIND DEVICE’S WIFI SIGNAL  Please unplug the device, wait 30 seconds, plug your camera back in, and try again.
  • Page 19  Please unplug the device, wait 30 seconds, plug your camera back in, and try again. OTHER PROBLEMS  Call our technical support at 770–694– 6921 Version 1.1...

  • Page 20: Specifications

    SPECIFICATIONS Video Resolution Streaming 4K, 2K, 1080P, 720P Resolution Recording 1080P Resolution Video Format Type of Memory External MicroSD Card Memory Capacity Up to 128GB Recording Capacity ≈ 30 minutes per 1GB USB Interface 2.0 USB Player Software Time Date Stamp Loop Recording Operating Systems Windows XP &...
  • Page 21 Version 1.1...
  • Page 22 Version 1.1...
  • Page 23 Version 1.1...
  • Page 24 QUALITY CONTROL CHECKLIST ☐ MicroSD Card Reader ☐ BB4KWifi Lamp ☐ MicroSD Card ____GB ☐ Manual QC Tech Name: _______________________________ Date: ______________________________ Version 1.1...
