Summary of Contents for Bush Baby BBSBottle

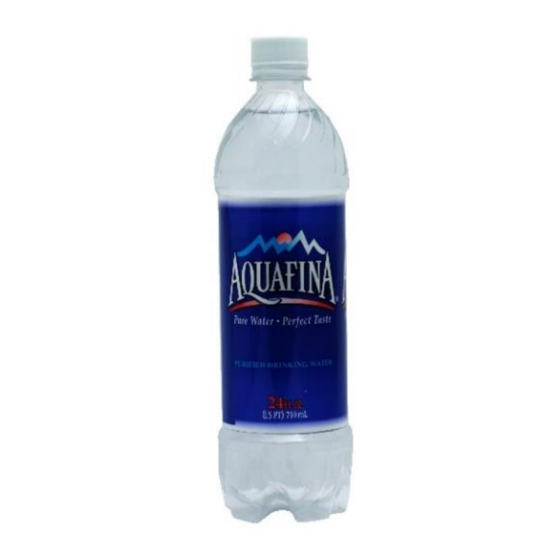

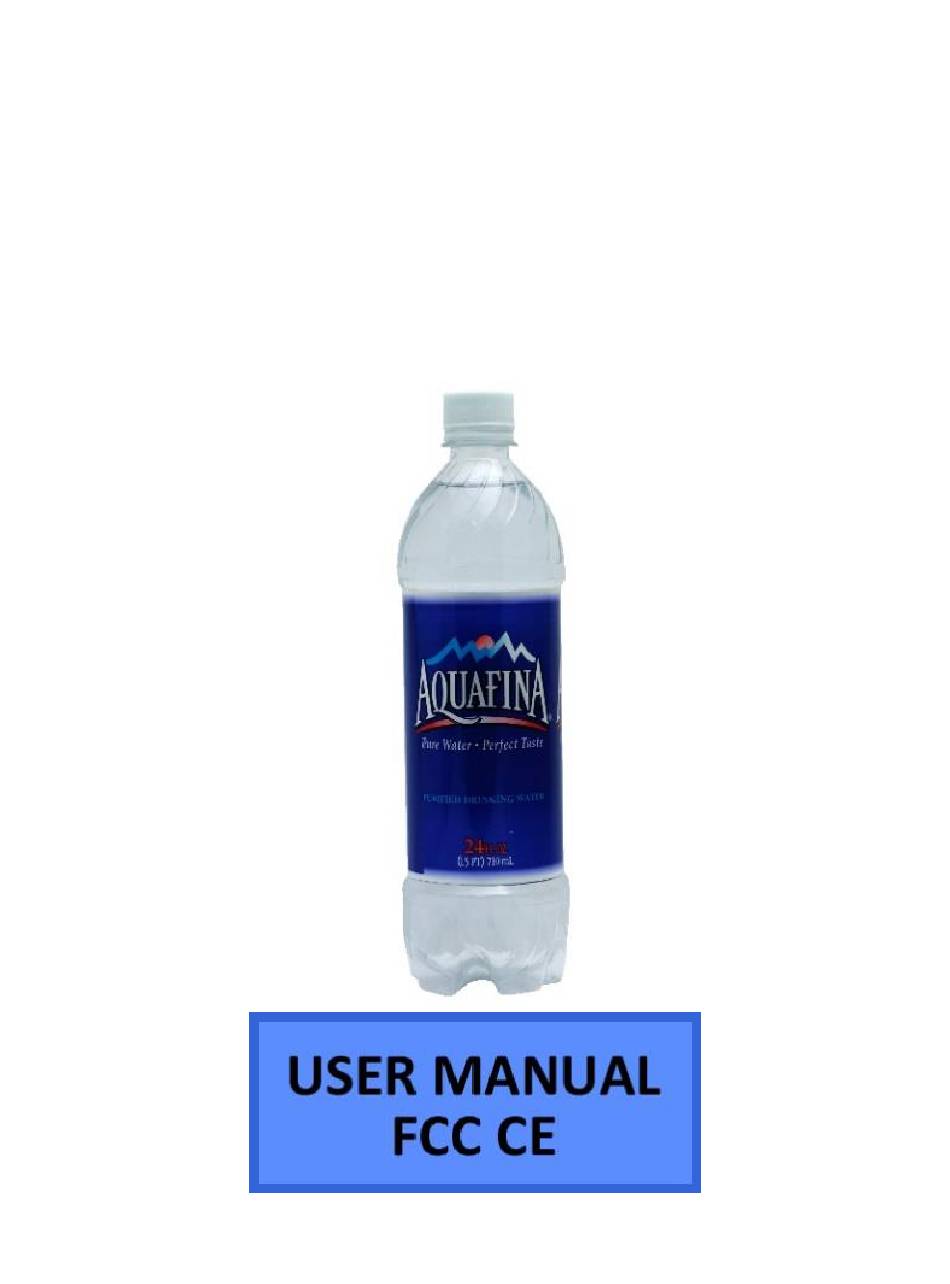

- Page 1 Bush Baby Stealth Bottle Camera Manual SKU: BBSBottle Version 2.1...
- Page 2 THANK YOU FOR PURCHASING THE BUSH BABY STEALTH BOTTLE CAMERA Please read this manual before operating the device and keep it handy. Separate areas contain water on the top and bottom to give the impression of a full bottle. We advise that you...
- Page 3 GET FAMILIAR WITH YOUR BUSH BABY STEALTH BOTTLE Version 2.1...
- Page 4 Version 2.1...
- Page 5 Version 2.1...
- Page 6 Version 2.1...
- Page 7 BEFORE YOU START To preserve battery power, your bottle will come with the battery connector disconnected. Before attempting to use the device, be sure to connect the battery’s connector to the circuit board power lead. Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid damaging the...
- Page 8 voided. You may be charged fees or denied a return should this happen. OPERATING THE BUSHBABY STEALTH BOTTLE CAMERA IMPORTANT NOTICE: Allow the device to charge 6 – 8 hours before using. REMOVING AND CHARGING THE BATTERY 1. Remove battery from the bottle (see pages 3 and 4).
- Page 9 5. Plug the other end of the USB cable into the wall AC adapter and plug it into the wall. 6. Wait 6 to 8 hours. a. The larger the battery capacity, the longer it takes to charge. HOW TO TURN ON THE BUSHBABY STEALTH BOTTLE CAMERA 1.
- Page 10 a. Videos will be recorded continuously and saved in 20 minute intervals. HOW TO SET UP MOTION DETECTION 1. In Standby mode, press the Motion Detection button one time (see page 5). The indicator light will flash three times, and then turn off. 2.
- Page 11 b. If you pressed the Motion button, press the Motion button once more. 2. The device will reenter Standby mode (solid light). HOW TO TAKE A PICTURE 1. While in Standby mode, press the Picture Button one time (see page 5). When the indicator light flashes one time, 1 picture will be taken accordingly.
- Page 12 spring resistance before the card clicks in to place. 2. Never force the card into the Card Slot under any circumstance. Otherwise the Bottle unit or the MicroSD card itself will be damaged. 3. To remove the SD card, gently push the card in so that it clicks.
- Page 13 IMPORTANT NOTICE: Ensure that the bottle is off before inserting the MicroSD card. Otherwise, potential corruption of the card file(s) may occur. RETRIEVE THE FILES TO YOUR PC 1. Connect the MicroSD card to your computer using the MicroSD card reader. See page 4 to locate the MicroSD card slot on your device.
- Page 14 Or… Go to Start > Computer > Removable Disk Version 2.1...
- Page 15 3. Open the Removable Disk drive. 4. Open the DCIM folder. 5. Open the folder featuring a sequence of numbers. 6. Double click the file you want to view. VLC Player is recommended for watching videos. If you are having video playback issues such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
- Page 16 Next, go the location you want the save the file to. Right click your mouse, and then chose “Paste.” This will copy the file to your computer. To delete a file, right click your mouse on the file name and choose “Delete” from the menu.
- Page 17 2. Choose “All Bush Baby Stealth”, and your time zone in the dropdowns and click download. 3. Go to your download’s folder. Right click and “cut” the downloaded time file. 4. Locate “Removable Disk” inside the (My) Computer folder. a. Go to Start > Computer >...
- Page 18 Alternatively, if you cannot get the above method to work, do the following: 7. Right click anywhere in the blank white space. 8. Scroll down to “New”. 9. Click “Text Document”. 10. Rename “New Text Document” as “time”. The title must be in all lowercase letters! Before Step 8 Version 2.1...
- Page 19 After Step 8 11. Open the text document. 12. Enter the date/time in the following format: a. Example: 2016/08/08 15:00:00 13. Save the text document. 14. Unplug the MicroSD card from your computer and reinsert it into your device. Power on the device and begin a test recording to confirm date/time setting succeeded.
-
Page 20: Troubleshooting
TROUBLESHOOTING THE DEVICE WON’T TURN ON Charge the device for at least 6-8 hours before the first use. Make all charging cables are securely connected when charging. If the remote is not responding, try flipping the internal on/off switch. Version 2.1... - Page 21 THE DEVICE ISN’T CHARGING Replace the battery or charging cable. If you are charging via a wall power source, you may need to charge via your PC. MY COMPUTER DOESN’T RECOGNIZE THE DEVICE Try using a different USB slot on your PC. THE VIDEO IS UNCLEAR ...
- Page 22 the files and follow the instructions in the “64GB SD Card Formatting.pdf” document. THE INDICATOR LIGHT IS FLASHING RED/BLUE There is no SD card in the device. OTHER PROBLEMS Call our technical support at 770–694– 6921 Version 2.1...
- Page 23 SPECIFICATIONS Video Resolution 1920*1080 Video Format Frames per Second Vision Angle 75° Motion Detection Lux Rating 1LUX Water Resistant Battery Life 30 Hours Type of Memory External MicroSD Card Memory Capacity 4GB – 128GB USB Interface 2.0 USB Player Software VLC recommended Operating Systems Windows XP &...
- Page 24 Version 2.1...
- Page 25 ☐ Remote ☐ Wall AC Adapter ☐ MicroUSB Cable ☐ MicroSD Card ____GB ☐ MicroSD Card Reader ☐ Removable Battery ☐ Charging Adapter with Indicator Lights ☐ User Manual ☐ Bush Baby STEALTH Bottle QC Tech: _________________________________________ Date: ______________________________ Version 2.1...
