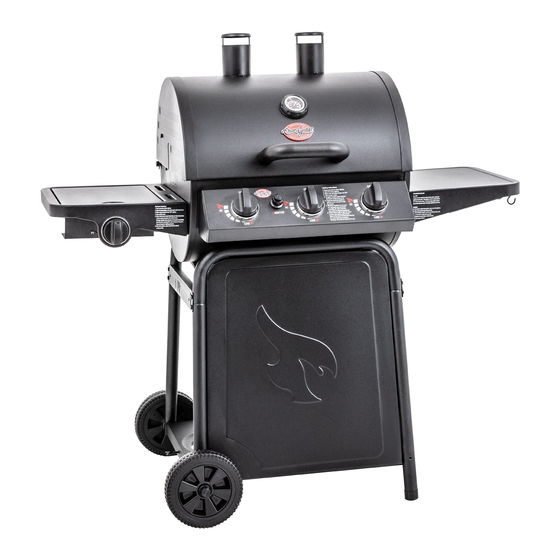

Char-Griller Grillin' Pro E3001 Owner's Manual
  1. Manuals
  2. Brands
  3. Char-Griller Manuals
  4. Grill
  5. Grillin' Pro E3001
  6. Owner's manual

Char-Griller Grillin' Pro E3001 Owner's Manual

Hide thumbs Also See for Grillin' Pro E3001:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
Grillin' Pro™
Model # 3001 / E3001
Keep your receipt with this manual for Warranty.
CUSTOMER SERVICE
1-912-638-4724
Service@CharGriller.com
Contents of this manual are Trademarked and Copyrighted by Char-Griller | A&J Manu-
facturing. Using the information contained in this manual without consent of Char-Griller
and/or
A&J Manufacturing is strictly prohibited.
OM3001E.1
™ & © Char-Griller / A&J Mfg.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grillin' Pro E3001 and is the answer not in the manual?

Questions and answers

Related Manuals for Char-Griller Grillin' Pro E3001

Summary of Contents for Char-Griller Grillin' Pro E3001

  • Page 1 Keep your receipt with this manual for Warranty. CUSTOMER SERVICE 1-912-638-4724 Service@CharGriller.com Contents of this manual are Trademarked and Copyrighted by Char-Griller | A&J Manu- facturing. Using the information contained in this manual without consent of Char-Griller and/or A&J Manufacturing is strictly prohibited.
  • Page 2 Failure to follow these instructions could ed by the combustion of propane. result in fire or explosion that could cause property damage, personal injury or death. OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 3 1-912-638-4724 (USA), Mon- day-Friday 8:30am-5pm (EST). Have your grills serial number (located on the back of the grill body or on the leg) when calling. OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 4: Table Of Contents

    Operating Grill Connecting Gas Cylinder…………………………..page 22 Cleaning and Care……………………………………page 23 - 24 Checking for Leaks………………………………..…page 25 Lighting Grill…...……………………………………..page 26-28 Trouble Shooting……………………………………..page 29—30 Grill Preparation………………………………………..page 31 Recipes……………………………………………..…...…page 32 - 33 Accessories……………………………………………….page 34 - 35 OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 5: Important Safety Information

    8. DO NOT use this grill or any gas product near unprotected combustible constructions. 9. Do not use in an explosive atmosphere. Keep grill area clear and free from combus- tible materials, gasoline and other flammable vapors and liquids. OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 6 This grill is shipped from the factory for propane gas use only. Never use a propane cylinder with a damaged body, valve, collar or footing. Dented or rusted propane cylinders may be hazardous and should be checked by your propane gas supplier. OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 7: Illustrated Parts List

    OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 8 LEG BRACE AXLE FRONT PANEL SIDE BURNER/ CONTROL PANEL UTENSIL HOOK GREASE TRAY CATCH PAN, REMOVABLE SIDE SHELF POT STAND STACK HUB CAP STOPPER BRACKET SLIDER BRACKET TANK BLOCK BAR GRATE LIFTER OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 9: Tools, Assembly Tips And Hardware List

    ¼-20 HEX NUT…………..10 PCS ¼” LOCK WASHER……..……..33 PCS HINGE PINS………………..2 PCS LARGE HAIR COTTER PIN…….2 PCS SMALL HAIR COTTER PIN…….2 PCS SCREW…………………..………….3 PCS #10-24 x 0.40” BOLT……….6 PCS 1/4-20 x 31/4” Wing Bolt….…1 PC OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 10: Assembly Instructions

    Lock Washer Hex Bolts Leg Cross Bars Lock Washer Leg Brace Leg Brace Short Legs Hex Bolts Leg Caps Long Legs Holes on Leg Cross Bars TOP VIEW AFTER ASSEMBLY OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 11 Large Cotter Pin and snap on the Hub Cap. Cotter Pins Short Legs Large Cotter Pin Cotter Pin Hub Cap Flat Washer Axle Hub Cap Wheels Flat Washer Long Leg OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 12 Brackets as shown below. This is critical for installing the Catch Pan on later step). The Bolts should go in from inside the Grill Body. Pan Head Bolts Stopper Bracket Slider Brackets OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 13 Oriented the Grill body so that the three opening holes on the Grill Body for the burner tubes are facing in the same side as the Front Panel. Grill Body Hex Bolts Flat Lock Washers Washers Holes for Burners Front Panel OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 14 Bolts and four Lock Washers (two Hex Bolts and two Lock Washers on each side). Then attach the Side Burner Body Assembly on the side of the Grill Bod. Side Burner Body Side Burner Control Panel Body Assembly Lock Washers Knobs Control Panel Assembly Hex Bolts OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 15 Hose Guide Bracket Lock Washer Step 11: Install Side Shelf on the side of the Grill Body using four Lock Washers and four 1/2” Hex Bolts. Side Shelf Lock Washers Hex Bolts OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 16 Valve goes inside each burner, see figure 12B. Then secure the Burners to the Grill Body with the screws provided, see figure 12C. Burner Figure 12A Igniter with Wire Screw Burner Valve Burner Figure 12B Figure 12C OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 17 Wing Nuts. Then attach the Thermometer and Bezel to the Grill Hood. The Ther- mometer goes through the Bezel then the Grill Hood and secure with a Wing Nuts. Grill Hood Thermometer Bezel Handle Wing Nuts Lock Washers OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 18 Step 16: Attach the Grill Hood to the Grill Body using the two Hinge Pins and two Small Cotter Pins provided. Grill Hood Hinge Pin Hinge Pin Grill Body Small Cotter Pins OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 19 Shield over the Burners then place the Cooking Grates in place. And insert the Uten- sils Hooks into the hole on the Side Shelf. Pot Stand Flare-Up Shields Cooking Grates Utensil Hooks OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 20 Step 20: Unscrew the Igniter Push Button and insert a “AA” battery into the hole, making sure that the negative side of the battery going in first. Then screw back the Igniter Push Button. Igniter Push Button “AA” Battery Step 21 Tighten all NUTS and BOLTS. OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 21 Any remaining glue residue can be cleaned off with a spray lubri- cant like WD-40 . Do NOT use any other type of solvent or cleaner because this will damage the finish/paint/coating on the grill. OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 22: Connecting Gas Cylinder

    (refer to illustration under step 22 of page 17). DANGER: Never store a spare propane cylinder near this grill. A fire causing death or serious injury may occur if the above is not followed exactly. OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 23: Cleaning And Care

    Non abrasive scouring powder can be used on stubborn stains, then rinse with water. Heat Shield – Clean residue with wire brush and wash with soapy water. Then rinse with water. OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 24 Inspect burner for any damage (cracks or holes). If damage is found, replace with new burner. Reinstall burner; check to insure that gas valve orifices are cor- rectly positioned inside burner inlet (venturi). Also check position of spark elec- trode. OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 25: Checking For Leaks

    If bubbles appear, you have a leak. Check the regulator connection as follows: Disconnect regulator from the tank and reconnect, making sure the connection is secure. Retest with solution. If you continue to see bub- bles, replace the cylinder. OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 26: Lighting Grill

    5 minutes before re-lighting. Clean your grill after each use, DO NOT use abrasive or flammable cleaners, as it will damage the parts of this product and may start a fire. OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 27 Flame should be a Blue / Yellow color. To visually check that the burner is operating, look at the burner flame through the flame viewing hole. The flame should be approximately 1/2-3/4 inch long with the high setting. OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 28 2. Press in knob and rotate counter-clockwise to the High setting and burner should light immediately. 3. Adjust burners to desired cooking settings Cooking Grate Match Holder Chain Burner Ports OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 29: Trouble Shooting

    30 seconds and then light the grill. Irregular flame pattern, Burner ports are clogged Clean Burner ports flame does not run the or blocked. full length of burner.    OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 30 Baked on grease buildup has Clean inside of lid thorough- be peeling turned to carbon and is flak- ly. The lid is not painted on - like paint peeling ing off. the inside OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 31: Grill Preparation

    PROPERLY CARED FOR. 3. You may fill unwanted holes with Nuts & Bolts (Not Provided). NOTE: Smoke will escape from areas other than the smokestacks. This will not affect your cooking . OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 32: Recipes

    (hot) position for 1 min each side before lowering grate and closing lid. *OR SMOKE by placing birds in center of GRID with fire in both ends of FIRE BOX. OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 33 50 minutes. Turn after 25 minutes (no need to turn if smoked). Squeeze to check for doneness. SWEET CORN IN HUSKS: Trim excess silk from end and soak in cold salted water 1 hour before grilling. Grill 25 minutes – turning several times. OM3001E.1 ™ & © Char-Griller / A&J Mfg.

  • Page 34: Accessories

    Side Fire Box #22424 For Charcoal grilling Attaches to grill in minutes Visit our online store at: www.chargriller.com Apron #8805 for more Char-Griller ® Machine Washable Professional Accessories ™ Two Front Pockets Adjustable Straps OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 35 No Returns on Used Product. Please Call For updated Pricing and Product Availability. Georgia Customers add a 7% sales tax. Washington state Customers add a 10% sales tax For current pricing, visit www.CharGriller.com or call 912-638-4724 OM3001E.1 ™ & © Char-Griller / A&J Mfg.
  • Page 36 Char-Griller will repair or re- place any defective part of its side fire boxes for a period up to one year from the date of purchase.
