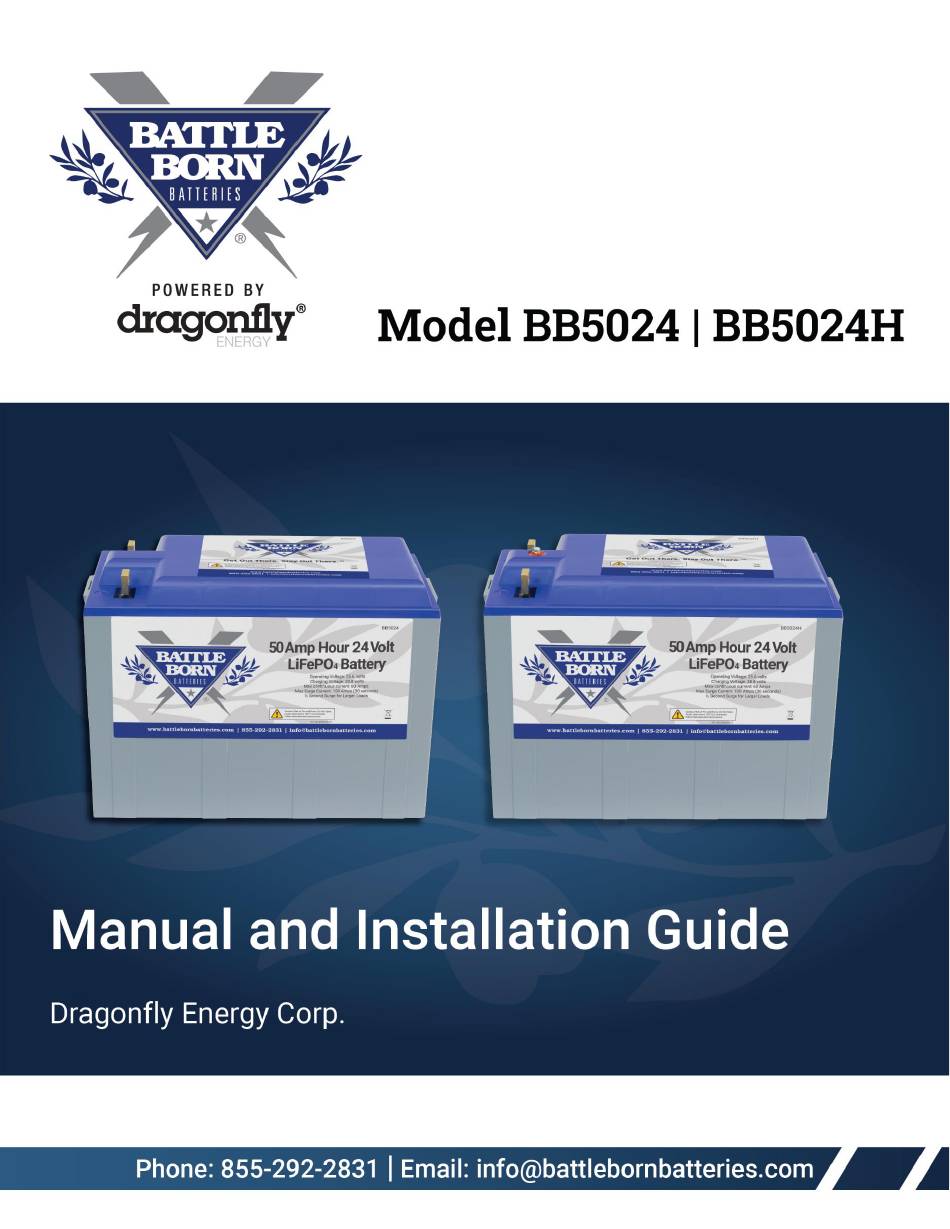

- Page 1 Battle Born Batteries BB5024 Manual | BB5024H Manual | Edition.PIM_BB5024Rev018_09062022...
-
Page 2: Table Of Contents
Please read this manual prior to installation and use. Thank you for investing in a Battle Born Batteries system and welcome to the Battle Born Batteries family. This manual provides important information on how to install, operate, and care for your Battle Born Batteries. If you have purchased with us before, you will find this manual useful as a reference tool. -
Page 3: What Is In The Box
What is in the Box? Included with your purchase is: • (1) BB5024 | BB5024H Battle Born Batteries Battery o Dimensions (L x W x H): 12.76” x 6.86” x 8.95” o Weight: 31 lbs. o Operating Temp Range: -4°F (-20°C) to 140°F (60°C) o Absorption Time: 15 Minutes per 50Ah Battery Bank o Water Resistant and Sealed (Batteries should not be submerged) BB5024 | BB5024H Assembly Drawing... -
Page 4: Safety
Figure 2: Proper and Improper Terminal Connections Safety While LiFePO4 batteries are inherently safe, as with all batteries, energy storage devices, and electrical equipment, safety and electrical hazards do exist. Failure to follow these safety instructions may result in electrical shock, injury, or death, or may damage the battery or other equipment or property. -
Page 5: Connecting The Batteries In Parallel
Connecting the Batteries in Parallel Why Connect in Parallel? Multiple BB5024 | BB5024H batteries may be connected in parallel to increase the capacity and current of the system. When batteries are connected in parallel, the voltage of the system does not change, but the capacity and current limits are additive. -
Page 6: Connecting The Batteries In Series
Connecting the Batteries in Series Why Connect in Series? When batteries are connected in series, current capacities remain the same, but the system voltage is additive. For example, two BB5024 | BB5024H batteries connected in series form a 48V 50Ah bank (shown in Fig. 4) and should be charged using a bulk and absorption voltage of 57.6V, and a float voltage of 54.4V. -
Page 7: How Does The Bms Protect The Batteries
How Does the BMS Protect the Batteries? All Battle Born Batteries come with a built-in battery management system (BMS) that protects the cells from many strenuous circumstances to protect the life cycles of the cells and your electrical system from potential damage. The BMS in the BB5024 | BB5024H allows for 60 Amps continuous, 100 Amp surge for 30 seconds, and 1/2 second surge for loads over 100 Amps. -
Page 8: Voltage Vs. Capacity
Voltage vs. Capacity For a Single Battery How to Properly Size Cables for System Install When considering cable sizing there are a few factors to consider. First, what is the size of the load you are powering with the battery bank? Second, how far away from the battery is the load? You can do voltage drop calculations to see if you need to step up your cable size. -
Page 9: How To Incorporate Fuses Into System Install
How to Properly Recycle and Dispose of the Batteries Here at Dragonfly Energy our goal is to provide our customers with long lasting green energy that will support them for years on all their adventures. That is why we not only build batteries that can keep up with you for a long time but also provide industry leading customer support to help you get the most out of your batteries. -
Page 10: Return Policy
Dragonfly Energy Corp. Copyright © 2022, Dragonfly Energy Corp., all rights reserved. Battle Born Batteries® is a registered trademark of Dragonfly Energy Corp. All other trademarks, trade names, service marks, and logos referenced herein belong to their respective owners. -
Page 11: Recommended Accessories
Recommended Accessories (Available via battlebornbatteries.com or call us at 855.292.2831) BMV-712 With Bluetooth built-in, the BMV-712 is the most efficient way to monitor your system. Being a shunt-based device, the unit will monitor power coming in and out of your system all at the palm of your hand. This device is highly recommended to give you the most accurate reading on your batteries.
