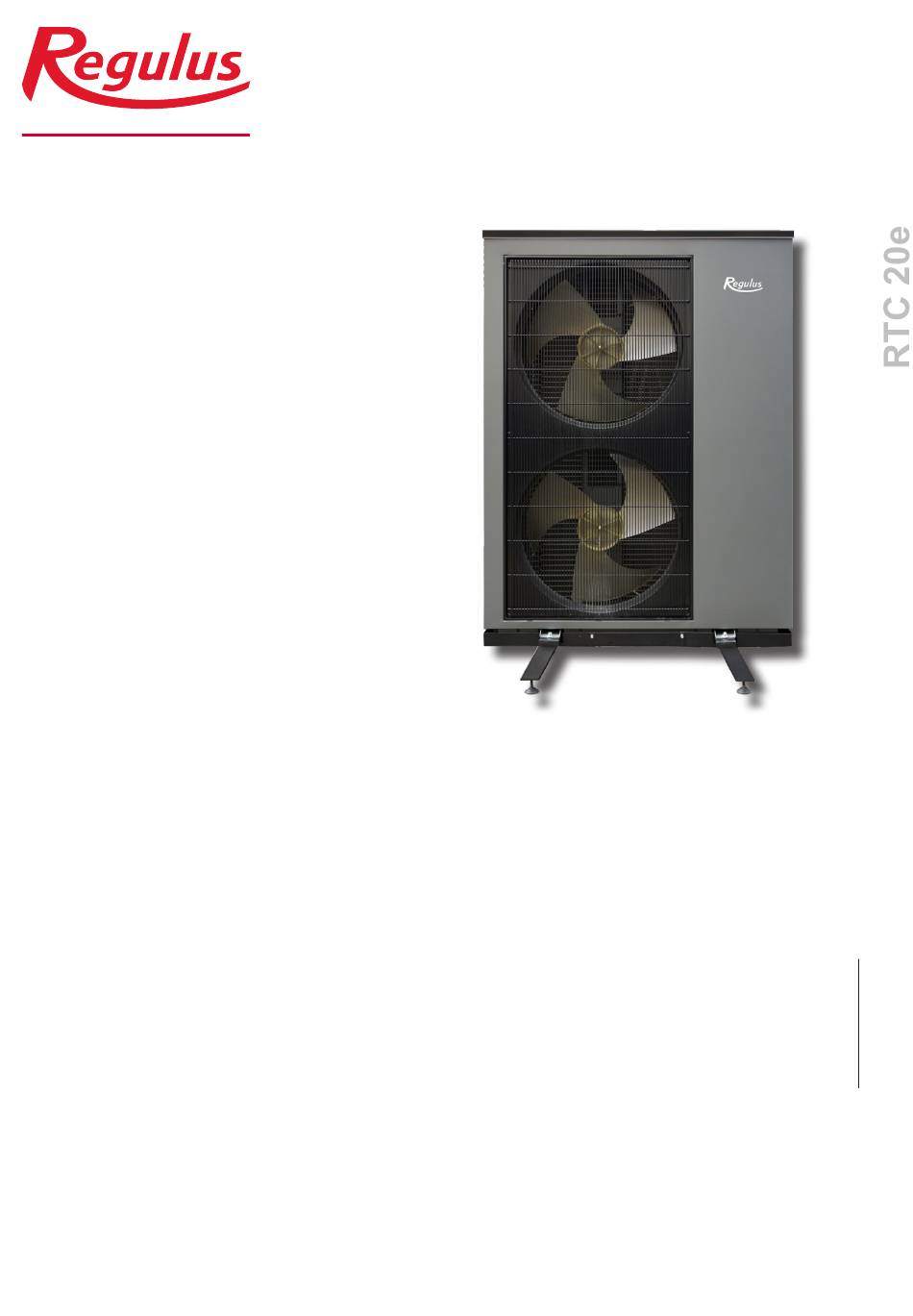

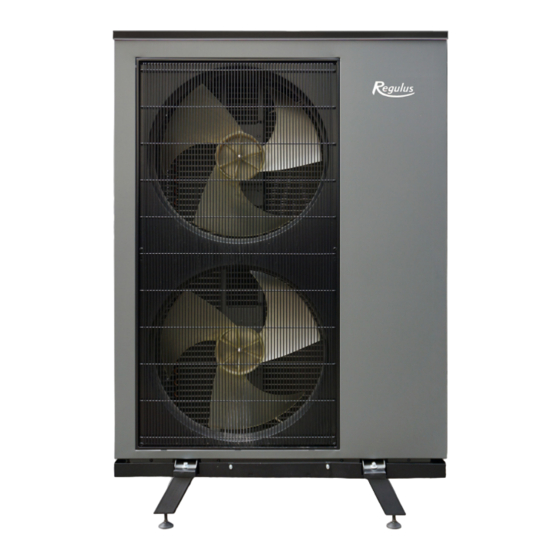

- Page 1 Installation and Maintenance Manual Air-to-water Inverter Heat Pump RTC 20e RTC 20e...
-
Page 2: Table Of Contents
6.5. Refrigerant circuit diagram ................6.6. Component layout diagram ................. 6.7. Internal electrical wiring diagram ..............7. RELATED DOCUMENTATION ................. 8. DECOMMISSIONING ....................9. RECYCLING / DISPOSAL ..................ANNEX 1: REPAIR AND INSPECTION LOGBOOK ............ RTC 20e - www.regulus.eu │... -
Page 3: Safety Instructions
Read this manual carefully before commencing operating and keep it at an easily accessible place for all users. If needed, the manual can be downloaded from the website of Regulus: http://www.regulus.eu/, or obtained from the company. If you have any doubts or uncertain- ties, please contact your equipment supplier or technical support of Regulus. -
Page 4: Instructions For Maintenance, Repair And Servicing
- It is forbidden to tamper with or replace any parts of the equipment without the express permission of the manufacturer. If the instructions in this manual are not followed, the manufacturer does not feel bound by the terms of the warranty or liable for damages. RTC 20e - www.regulus.eu │... -
Page 5: Technical Data
61 dB(A) Sound pressure level at 5 m distance 39 dB(A) Sound pressure level at 10 m distance 33 dB(A) 2.2. Energy efficiency Seasonal space heating energy efficiency 191 % Energy Efficiency Class A+++ SCOP 4.84 For low-temperature applications under average climatic conditions RTC 20e - www.regulus.eu │... -
Page 6: Performance Data
35 °C 7 °C 15.80 5.38 2.94 40 °C 18 °C 19.38 6.26 3.10 The values of the operating parameters including the defrost cycle are measured on the manufacturer‘s test bench according to EN 14 511. RTC 20e - www.regulus.eu │... -
Page 7: Heat Pump Pressure Drop
2.4. Heat pump pressure drop 1000 1500 2000 2500 3000 Q [l/h] 2.5. Dimensions RTC 20e - www.regulus.eu │... -
Page 8: Connection Alternatives
DHW to a higher temperature. In this direct connection to the heating system, it is necessary to keep the minimum flow through the heat pump at the level of min. 1560 l/h with sufficient heat supply for defrosting, i.e. it is necessary to have a part of the heating system without shut-off valves (e.g. thermostatic valves) installed. RTC 20e - www.regulus.eu │... -
Page 9: Connection With Thermal Store (Combination With Other Heat Sources)
Expansion vessel 3.3. Heating system with the use of cooling RTC 20e heat pumps also allow cooling of buildings. If cooling operation is used, all tanks and chilled water distribution systems must be vapor-insulated. If there are also space heating elements in the building that are not suitable for cooling (radiators, heated towel rails, etc.), it... -
Page 10: Construction Readiness, Installation
New Green Savings program), the installation company must meet the requirements of current legislation. 4.1. Scope of supply - RTC 20e Heat Pump - Installation and Operation Manual - 2 compensators to protect the plate heat exchanger in the heat pump against frost rupture 4.2. -
Page 11: Heat Pump Placement And Minimum Distances
If possible, we recommend not installing the heat pump in a corner or between two parallel walls because then the resulting sound pressure level may increase due to reflections from the surrounding walls. Avoid using materials with increased sound reflectivity near the device; it is unsuitable, for example, to line the surrounding surfaces with ceramic tiles. Note: dimensions are shown in millimetres. RTC 20e - www.regulus.eu │... - Page 12 - The foundations of concrete blocks should reach a frost-free depth. At the end, level the equipment with a spirit level. coarse crushed stone, 32-63 mm concrete blocks min.width 100 mm in frost-free depth RTC 20e - www.regulus.eu │...
-
Page 13: Condensate Drain
(see fig. on the right). c) To the building’s sewage system The drain pipe can be run e.g. to downpipe drains or eaves. P-trap It is recommended to insulate the outdoor section of drain pipe with thermal insulation. RTC 20e - www.regulus.eu │... -
Page 14: Pipe Connection
Hoses are included in the delivery only for heat pumps supplied as a Special Offer, otherwise they must be ordered separately. Braided diffusion-tight hoses with F/F or M/F threads for RTC 20e heat pumps can be ordered in lengths of 300, 500, 700 and 1000 mm. When installing compensators and braided hoses, follow the instructions in the separate Installation Manuals that will come with these products. -
Page 15: Electrical Wiring
The addressing of the individual heat pumps installed in the cascade is performed via DIP switches 6, 7 and 8 on the JNP401 switch, which is located on the printed circuit board. The default address is 2. The setting options are as follows: Address Address RTC 20e - www.regulus.eu │... -
Page 16: First Start-Up And Commissioning
5. FIRST START-UP AND COMMISSIONING Commissioning must be carried out by a service provider with a valid authorization issued by REGULUS spol. s r.o. Basic steps before the first start-up: □ Before the first start up (or after a shutdown of more than 1 day), leave the unit with the power on for several hours to allow the oil in the compressor to warm up sufficiently. □ Check that the electrical installation is carried out in accordance with the applicable regulations and with the label on the unit (check in particular the size of the supply cable, values of the circuit breaker, residual current device and correct earthing). -
Page 17: Maintenance, Servicing
• Check of cover fastening. • Check of the heating water quality. • Check of the finned and plate heat exchangers for dirt As of the date of placing on the market, the RTC 20e heat pump is NOT subject to regular refrigerant leakage checks. RTC 20e - www.regulus.eu │... -
Page 18: Non-Standard Conditions And Faults
On frosty days, check for ice in unusual places (heat pump legs, condensate tray, fan, etc.). Possible causes can be: blocked condensate drain piping (e.g. when condensate freezes inside the piping), lack of refrigerant or extreme weather conditions. RTC 20e - www.regulus.eu │... -
Page 19: Diagnostics And Possible Causes Of Fault Conditions
• that no refrigerant circuit leaks are present speed at low refrigerant • technical condition of the fan and circulation pump condensation pressure • whether the expansion valve is working properly • whether the heating water temperature isn’t too low • whether the flow and return temperature difference isn’t too big RTC 20e - www.regulus.eu │... - Page 20 If the water temperature is lower than 15 °C, the compressor will switch Water temperature too low off. The compressor switches on when the flow temperature exceeds in heating or DHW mode 17 °C. This is a protection that prevents damage to the compressor. RTC 20e - www.regulus.eu │...
-
Page 21: Refrigerant Circuit Diagram
6.5. Refrigerant circuit diagram Power supply Four-way valve Compressor Heating water Service valve Heating water Refrigerant Drying Expansion Plate heat collector filter valve exchanger Heating mode Cooling mode RTC 20e - www.regulus.eu │... -
Page 22: Component Layout Diagram
Four-way valve Terminal block 4-way valve actuator End switch Flow switch PFC Power Factor Corrector circuit The item is not included in HP supply in Regulus Sets. Air vent valve PCBs Drain valve El. expansion valve Bottom plate heater El. expansion valve actuator... -
Page 23: Internal Electrical Wiring Diagram
Regulus sets Incoming water temperature sensor Compressor dicharge sensor Outgoing water Bottom plate Compressor suction sensor temperature sensor heater Finned heat exchanger sensor Ambient temperature Flow switch sensor Compressor crankcase heater Antifrost heater 4-way valve RTC 20e - www.regulus.eu │... -
Page 24: Related Documentation
Electronic components such as electronic boards must be handed over to a collection point designated for electrical waste. Warning: Current regulations do not allow refrigerant to escape into the environment. All refrigerant must be professionally extracted by a certified person and handed over to the appropriate collection sites. RTC 20e - www.regulus.eu │... -
Page 25: Annex 1: Repair And Inspection Logbook
ANNEX 1: REPAIR AND INSPECTION LOGBOOK Service company Customer‘s Date Action performed Name, signature, rubber signature stamp RTC 20e - www.regulus.eu │... - Page 26 Service company Customer‘s Date Action performed Name, signature, rubber signature stamp RTC 20e - www.regulus.eu │...
- Page 27 RTC 20e - www.regulus.eu │...
- Page 28 ©2023 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
