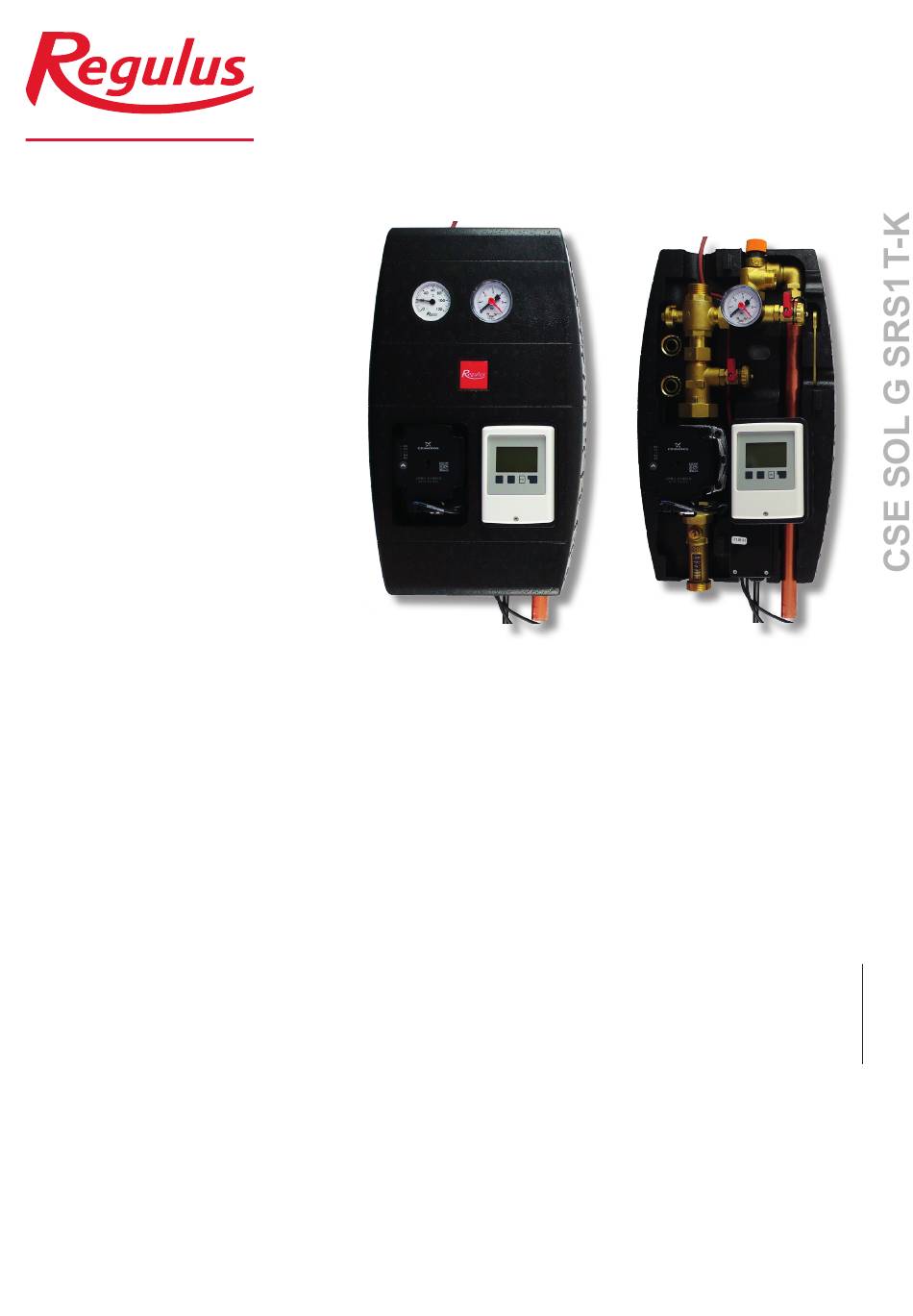

- Page 1 Installation and Operation Manual CSE SOL G SRS1 T-K SOLAR PUMP STATION CSE SOL G SRS1 T-K...
- Page 2 1. Introduction CSE SOL G SRS1 T-K Solar Pump Station is fitted with a solar pump of the latest generation that permits flow control either internally by selecting a suitable mode or externally through PWM signal. The complicated setting of the right flow rate is not needed when the PWM signal is used, the pump station keeps adjusting it automatically, depending on the actual solar radiation.
- Page 3 3. Pump Station Data Data for CSE SOL G SRS1 T-E Pump Station Max. fluid working temperature 110 °C Max. working pressure 6 bar Min. system pressure 1.3 with the pump stopped El. heating element resistive load max. 3000 W / 230 V (see accessories) External circulation pump induction load max.
- Page 4 3.1 Pump Station Pressure Drop Graph Flowmeter Flowmeter 4. Pump Station Components 1 - FLOWRATE INDICATOR W. BALL VALVE 2 - CIRCULATION PUMP 3 - CHECK VALVE 4 - HOSE TAIL FOR FILLING AND DRAINING THE SYSTEM 5 - BALL VALVE W. SIDE OUTLET FOR SAFETY GROUP 6 - THERMOMETER (IN THE UPPER PART OF INSULATION)
-
Page 5: Check Valve
4.1 Check Valve The non-return valve prevents the tank from cooling down due to gravity circulation when the sun is not shining. It is located between the ball valves and can therefore be removed and cleaned without having to drain the solar fluid from the entire circuit. If the mark is on the left, the check valve is set to the position for normal operation. -
Page 6: Installation Options
6. Installation Options The solar pump station is designed to be mounted on a wall or on a tank. There are two fixing ope- nings in the rear part of the insulation. The lower one is accessible only when the electronic contro- ller is removed from rear part of the insulation (see the pic. - Page 7 7.1 Overview of Hydraulic Variants...
-
Page 8: Pump Control
8. UPM3 HYBRID 25-70 Pump Pump control The circulation pump can be controlled: • internally without PWM signal by selecting a proper mode and pump curve. • externally by PWM C control signal (profile for solar systems) WARNING – IMPORTANT The pump permits to be controlled also by PWM A signal (profile for use in heating systems). - Page 9 Description of Pump Frofiles a) INTERNAL CONTROL - Proportional pressure • Head (pressure): reduced with growing system pressure drop and increased with sinking system pressure drop. • Pump operating point: moves up or down on the selected proportional pressure curve depending on the current system pressure drop.
-
Page 10: Settings Display
Settings Display DISPLAY - MARKING OF LEDs For clarity, the marking of the LEDs is further omitted. DISPLAY CONTROL MODE green LED FLASHING INTERNAL Proportional pressure AUTO ADAPT Constant pressure AUTO ADAPT Proportional pressure Constant pressure Constant speed DISPLAY CONTROL MODE green LED NOT FLASHING EXTERNAL PWM C... -
Page 11: Setting Selection
FLASHING FREQUENCY CONTROL RECEIVING PWM SIGNAL OF GREEN LEDS Not flashing Internal 1 flash per second External 12 flashes per second External WARNING: LEDs may be turned by 90° or 180°, or mirrored, depending on the specific pump type. When switched on, the pump runs at factory settings or the last setting. The display shows the current pump performance. - Page 12 Prior to commissioning the system, both the ball valves must be open! CLOSED OPEN v1.0-03/2022 ©2022 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
