AKT 302
GB
LIGHTING THE BURNERS
•
To ignite one of the burners, turn the relative knob anti-clockwise to the maximum flame setting
•
Press the knob against the control panel to ignite the burner.
•
After the burner has ignited, keep the knob pressed for about 5 seconds to allow the thermocouple to warm up.
This burner safety device shuts off the gas supply to the burner if the flame goes out accidentally (because of sudden
draught, an interruption in the gas delivery, boiling over of liquids, etc.).
•
The device must not be pressed for more than 15 sec. If, after that time has elapsed, the burner does not
remain lit, wait at least one minute before trying to light it again.
-
The burner might go out when the knob is released. This means that the thermocouple has not warmed up enough.
In this case, repeat the operations described above.
PRATICAL ADVICE FOR USING THE BURNERS
For better burner performance, please stick to the following
rules:
-
Use pots and pans that fit the burners (see table on the
right).
-
Only use flat-bottomed pots and pans.
-
Use the correct amount of water for cooking foods and
keep the pot covered.
Due to continued product development, Whirlpool
reserves the right to change specifications or model
availability without notice.
5019 319 62093

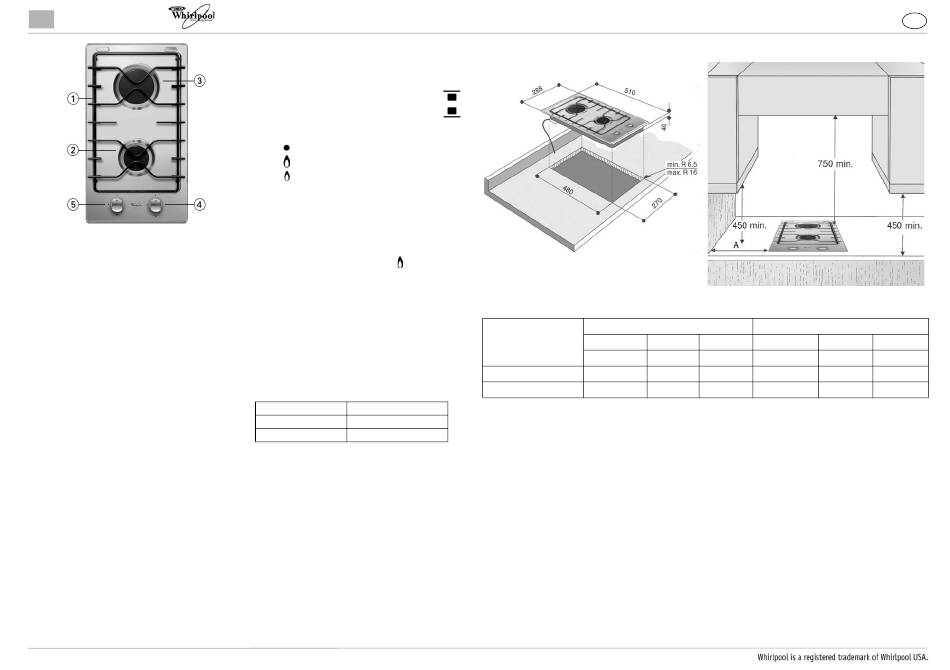

PRODUCT DESCRIPTION SHEET
Removable pan grid
1.
Semi-Rapid Burner
2.
Rapid Burner
3.
4.
Semi-Rapid Burner control knob
5.
Rapid Burner control knob
SYMBOLS
Tap closed
Maximum flame
Minimum flame
.
Burner
Pot Ø
rapid
from 24 to 26 cm
semi-rapid
from 16 to 22 cm
To get full satisfaction from the hob, please read these instructions carefully and keep them for future consultation.
DIMENSIONS AND DISTANCES TO BE MAINTAINED (mm)
NOTE: In case of installation of a hood above the cooktop, please refer to the hood instructions for the correct
distance.
NG
BURNER
Pressure
Injector
(kPa)
Front HS (Semi-rapid)
1.00
Rear HS (Rapid)
1.00
ELECTRIC SUPPLY: 230 -240 V - 50 Hz
ULPG
Rate
Pressure
Injector
(mm)
MJ/h
(kPa)
(mm)
1.15
7.0
2.75
0.6
1.6
12.5
2.75
1.0
AU
Rate
MJ/h
5.0
15.0
