4-Post Steel Open Racks

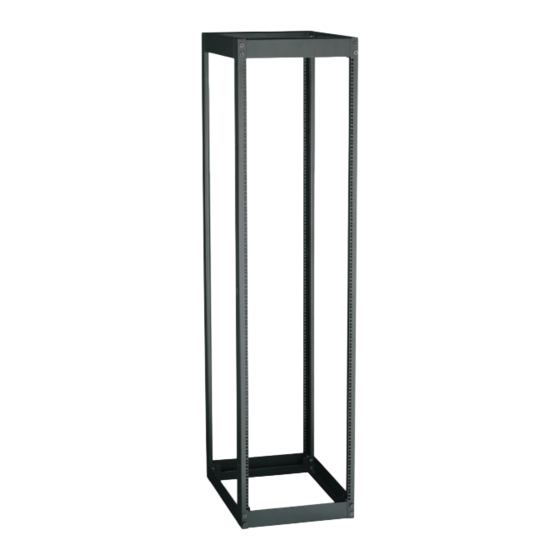

These 15U, 22U, 37U, 42U, and 51U racks provide
exceptional stability.
Hold up to 2200 pounds of equipment.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
Support
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
Information
PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com
Get other manuals https://www.bkmanuals.com
RM7000A-R2
RM7003A-R2
RM7001A-R2
RM7004A-R2
RM7002
RM7005A-R2
BLACK BOX
RM7006
RM7007
RM7008A-R2
RM7010
®
Advertisement
Related Manuals for Black Box RM7006
Summary of Contents for Black Box RM7006
- Page 1 Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax Support 724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, Information PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com Get other manuals https://www.bkmanuals.com...
-
Page 2: Trademarks Used In This Manual
Trademarks Used in this Manual Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. -
Page 3: Chapter 1: Specifications
Chapter 1: Specifications 1. Specifications Exterior Height — RM7000A-R2: 80.5" (204.5 cm); RM7001A-R2: 45.5" (115.6 cm); RM7003A-R2: 33.25" (84.5 cm); RM7004A-R2: 96" (243.8 cm); RM7005A-R2: 108" (274.3 cm); RM7008A-R2: 72" (183 cm) Exterior Width — 20.6" (52.3 cm) Exterior Depth — 29" (73.7 cm) Rack Units —... -
Page 4: Chapter 2: Overview
Chapter 2: Overview 2. Overview 2.1 Introduction The 4-Post Steel Open Rack combines the stability of a cabinet with the airflow of an open rack. It’s made of 12-gauge steel and supports up to 2200 pounds (1000 kg) of equipment. The rack conforms to EIA standards for 19" equipment mounting and has universal M6 holes. - Page 5 Chapter 2: Overview 2.3 Optional Accessories • Baying Kit (RM7002) • RM7000A-R2 Series Caster Set (RM7006) • RM7000A-R2 Series Flat Top (RM7007) • Fixed Vented Shelf, 28.9"D, 50-lb. Capacity (RM7010) • Fixed Vented Server Shelf, 27 ⁄ "D, 150-lb. Capacity (RM403) •...
-
Page 6: Chapter 3: Assembly Instructions
Chapter 3: Assembly Instructions 3. Assembly Instructions Tools You Will Need • ⁄ " socket • ⁄ " wrench • ⁄ " hex key wrench Step 1: Assembling the Bottom Corners of the Rack A. Lay the left-hand and right-hand uprights on end, facing each other. KEY: 1. - Page 7 Chapter 3: Assembly Instructions Through holes Threaded holes KEY: 1. Left-hand upright 2. Horizontal depth bracket 3. Horizontal width bracket ⁄ -16 x ⁄ " long flat head screw ⁄ -13 x 1" hex head bolt ⁄ " split lockwasher ⁄...
- Page 8 Chapter 3: Assembly Instructions C. Align the through holes in one top/bottom horizontal depth bracket (#2 in Figure 3-2) with the through holes on the opposite side of the upright in Step 1B (#1 in Figure 3-2). Install (2) ⁄ "-13 x 1"...
- Page 9 Figure 3-3. Installing the flat top. Installing the Casters If you don’t want to secure the rack to the floor, you can use optional casters (RM7006) that install on the bottom of the rack. 724-746-5500 | blackbox.com Page 9 Get other manuals https://www.bkmanuals.com...
- Page 10 NOTES Page 10 724-746-5500 | blackbox.com Get other manuals https://www.bkmanuals.com...
- Page 11 NOTES 724-746-5500 | blackbox.com Page 11 Get other manuals https://www.bkmanuals.com...
- Page 12 724-746-5500 or blackbox.com. About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
