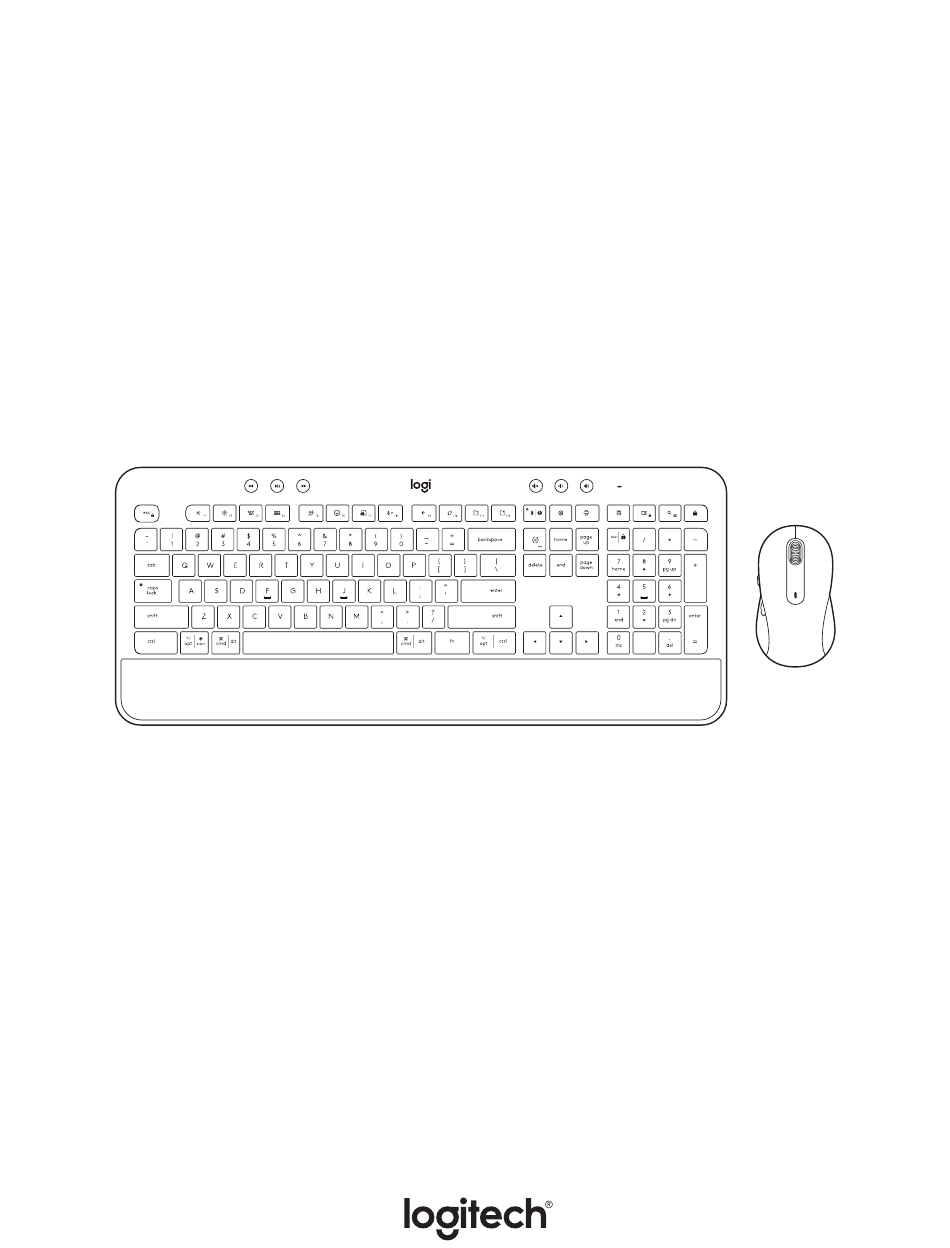

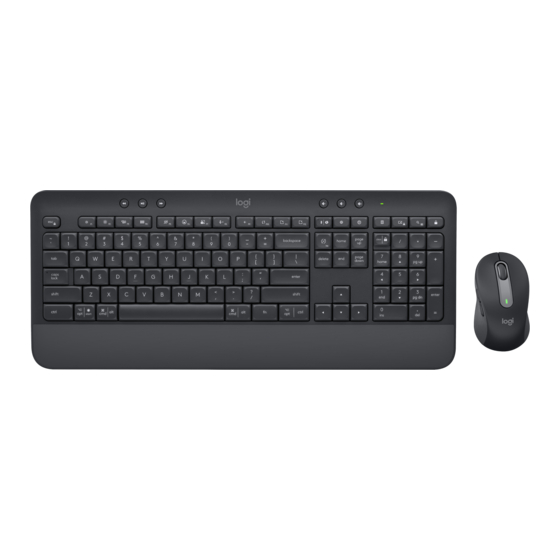

KNOW YOUR PRODUCT KEYBOARD VIEW 1 Batteries + dongle compartment (keyboard bottom side) 2 Connect Key + LED (white) 3 Battery Status LED (green/red) 4 On/Off switch MOUSE VIEW 5 M650B Mouse 6 SmartWheel 7 Side keys 8 Batteries + dongle compartment (mouse bottom side) 3 English...
Page 4
CONNECT YOUR MK650 There are two ways to connect your keyboard and mouse to your device. Option 1: Through Logi Bolt receiver Option 2: Through direct Bluetooth Low Energy (BLE) ® connection* Note: *For ChromeOS users, we recommend connecting to your device only through BLE (Option 2) A dongle connectivity will bring experience limitations To pair through Logi Bolt receiver:...
Page 5
STEP 4: Set the right keyboard layout for your computer operating system: Long press for 3 seconds the following shortcuts to set it up for Windows, macOS or ChromeOS • Windows: Fn + P 3 sec. • macOS: Fn + O Windows •...
Page 6
DONGLE COMPARTMENT If you are not using your Logi Bolt USB receiver, you can safely store it inside your keyboard or mouse. To store it on your keyboard: STEP 1: Remove the battery door from the bottom side of your keyboard STEP 2: The dongle compartment is located on the right side of the batteries...
Page 7
DONGLE COMPARTMENT (CONT'D) To store it on your mouse: STEP 1: Remove the battery door from the bottom side of your mouse M650 M650 STEP 2: The dongle compartment is located on the left side of the battery Slide your dongle vertically inside the compartment 7 English...
Page 8
KEYBOARD FUNCTIONS You have a full range of useful productive tools on your keyboard that will help you save time and works faster F-Rows Keys Task view App switch Emoji* Snip & sketch Windows Brightness Brightness Main Escape Dictation* down function Mission Mission...
Page 9
Mute Microphone key: Install Logitech Options+ for it to work on Windows and macOS; works out of the box on ChromeOS b Close browser tab key, Settings key and Calculator key: Install Logitech Options+ for it to work on macOS; works out of the box on Windows and ChromeOS...
Page 10
BATTERY STATUS NOTIFICATION 1a. When the battery level is between 6% to 100%, the LED color will stay green 10 English...
Page 21
제품 설명 키보드 보기 1 배터리 + 동글 수납 공간(키보드 하단) 2 연결 키 + LED(흰색) 3 배터리 상태 LED(녹색/빨간색) 4 켜기/끄기 스위치 마우스 보기 5 M650B 마우스 6 SmartWheel 7 측면 키 8 배터리 + 동글 수납 공간(마우스 하단) 21 한국어...
Page 22
MK650 연결 두 가지 방법으로 키보드와 마우스를 장치에 연결할 수 있습니다 옵션 1: Logi Bolt 수신기 사용 옵션 2: Bluetooth ® 저에너지(BLE) 직접 연결* 참고: *ChromeOS 사용자의 경우 BLE(옵션 2)로만 장치에 연결하는 것을 권장합니다 동글 사용 시 경험이 제한될 수 있습니다 Logi Bolt 수신기...
Page 23
4단계: 컴퓨터 운영 체제에 적합한 키보드 레이아웃 설정: 다음 바로가기 키를 3초간 길게 누르면 Windows,macOS,ChromeOS 레이아웃을 설정할 수 있습니다 • Windows: Fn + P 3초 • macOS: Fn + O • ChromeOS: Fn + C Windows 중요: 기본 OS 레이아웃은 Windows입니다 Windows Chrome 컴퓨터를...
Page 24
동글 수납 공간 Logi Bolt USB 수신기를 사용하지 않는 경우 키보드 또는 마우스 안에 안전하게 보관할 수 있습니다 수신기를 키보드에 보관하는 방법: 1단계: 키보드 하단에서 배터리 도어를 분리합니다 2단계: 동글 수납 공간은 배터리 오른쪽에 있습니다 3단계: Logi Bolt 수신기를 수납 공간에 넣고 수납 공간의 오른쪽으로...
Page 25
동글 수납 공간(계속) 수신기를마우스에 보관하는 방법: 1단계: 마우스 하단에서 배터리 도어를 분리합니다 M650 M650 2단계: 동글 수납 공간은 배터리 왼쪽에 있습니다 동글을 수납 공간 안에 수직으로 밀어 넣습니다 25 한국어...
Page 26
키보드 기능 키보드에는 시간을 절약하고 작업 속도를 높여주는 유용한 생산성 도구가 있습니다 F-키 모음 Windows 작업 보기 앱 전환 이모티콘* 자르기 및 스케치 종료 주요 기능 밝기 감소 밝기 증가 받아쓰기* Mission Mission 선택 영역 macOS 이모티콘 control control 캡처 Fn 잠금...
Page 27
음소거 키: Windows 및 macOS에서 해당 기능을 사용하려면 Logitech Options+를 설치하세요 ChromeOS 에서는 구입 즉시 사용 가능합니다 b. 브라우저 탭 키, 설정 키, 계산기 키 닫기: macOS에서 해당 기능을 사용하려면 Logitech Options+를 설치하세요 Windows 및 ChromeOS에서는 구입 즉시 사용 가능합니다...
Page 28
배터리 상태 알림 1a 배터리 잔량이 6%~100%인 경우, LED가 초록색으로 켜집니다 28 한국어...
