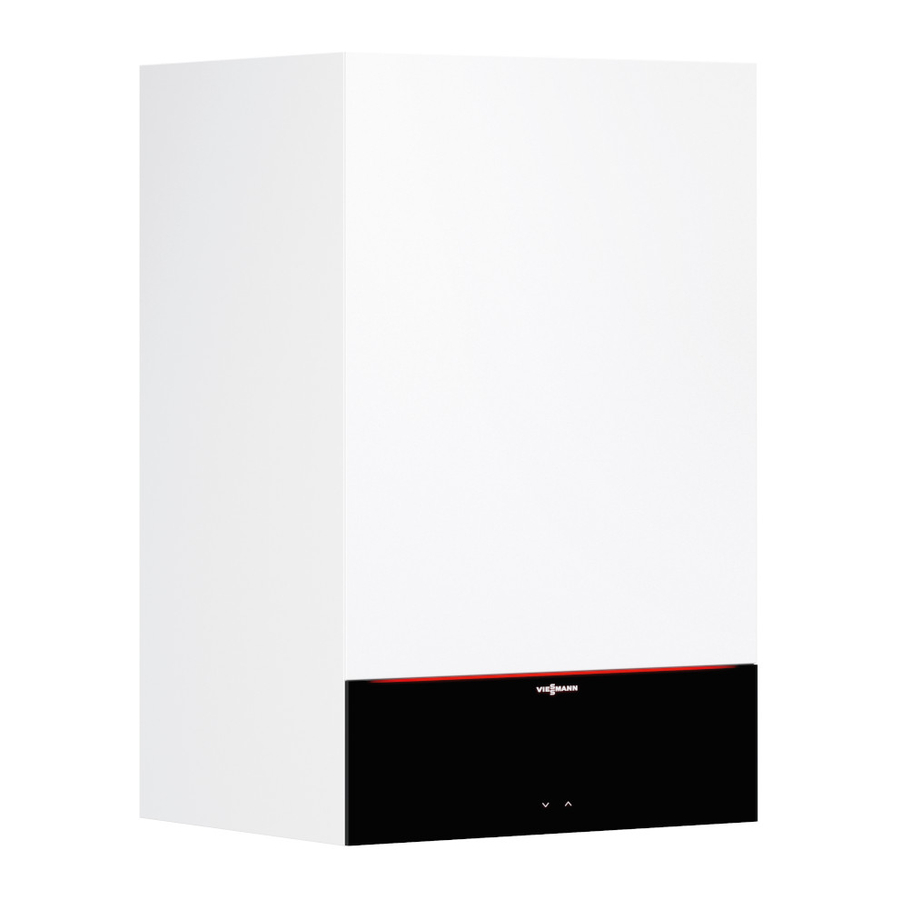

VITODENS 100-W / 111-W

Commissioning Quickstart Guide

This guide highlights the new and unique process for commissioning. For installation,

please refer to the detailed steps in the Installation & Service Instructions.

User interface

Getting started

On the following pages you will find a step by step guide to commission the product by using

the control panel. The default parameters are highlighted for each step. Note that you can also

use ViGuide – our mobile application – to carry out the commissioning. Important: If you want to

connect the boiler to the internet – using ViGuide monitoring – or connect a Viessmann ViCare

Thermostat or Vitotrol 100-E you have to use ViGuide. Please refer to the last page of this docu-

ment to receive more information.

Heating circuit 1 and 2

DHW temperature

System pressure

DHW ECO function

Reduced temperature level

Wifi connection

Service menu

Fault display

Burner status

OK > confirm settings

Menu > opens the main menu

Up & down > change parameter

Page 1 ViGuide – our mobile application – to carry out the commissioning. Important: If you want to connect the boiler to the internet – using ViGuide monitoring – or connect a Viessmann ViCare Thermostat or Vitotrol 100-E you have to use ViGuide. Please refer to the last page of this docu-...
Page 2 Commissioning steps: Access Point AP 4 seconds to start commissioning Indicates the boiler is ready to be set up press from the panel C.1 Filling programme ON > moves diverter valve to mid position for ease of filling via filling loop, OFF - default >...
Page 3 C.10 EM-EA1 settings 0 - default > no function, for additional options, please refer to the manual (refer to the commissioning section in the installation manual), press OK to confirm the setting C.11 Date to adjust the date > day, month, year, press OK to confirm each setting press C.12 Time press...
Page 4 & services The application can be downloaded from the Google Play Store or Apple App Store. For Once your Viessmann Account is set up, further information scan the QR code: you can access the Partner Portal via the QR code: Viessmann Account Further Information &...
