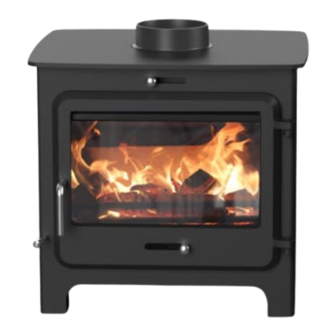

- Page 1 Ekol Clarity 5, 8, 12, Vision & Double Sided User Manual PLEASE KEEP SAFE FOR FUTURE REFERENCE...
-
Page 2: Installation
Inside the stove you will find a glove which must be used when opening the door or when adjusting air vents when the fire is hot. INSTALLATION Installation of your stove must comply with relevant local and national Building Regulations and fire safety standards. TECHNICAL Model; “Ekol Clarity 5, 8, 12 ,Vision & Double Sided” Parameter Clarity 5 Clarity 8 Clarity 12... - Page 3 Note: The Clarity 5 model has been designed to fit safely inside a 16” (406mm) wide fireplace opening. In this case the clearance will be less than the 50mm suggested above, but this is still acceptable on this model.
- Page 5 (other than "authorised" fuels) have been exempted by an Order made and signed by the Secretary of State or Minister in the devolved administrations. The “Ekol Clarity 5, 8, 12 Vision and Double Sided” has been recommended as suitable for use in smoke control areas when burning seasoned wood.
-
Page 6: Stove Controls
STOVE CONTROLS Your stove has three sets of air inlet areas- The upper vent above the door provides air supply for the air-wash system and allows air into the higher areas of the fire box – this is called the Secondary Air – when this vent is open, the door glass is kept clean by high speed air rushing downwards across the inside of the glass. -
Page 7: Lighting The Fire
TOOLS The glove is provided for adjusting the air inlets and for opening the door when the stove is hot, as these knobs will heat up when in use. NOTE – all parts of the stove will become hot during use and care needs to be taken to avoid injury through burning. - Page 8 Refuelling • Open the Primary air vents. • Add up to 1.4kg (Clarity 5) or 2.5kg (Clarity 8) or 3.8kg (Clarity 12) 1.4kg (Clarity Vision) or 3kg (Double Sided) of wood. • After about 2-3 minutes or when flames from the fresh fuel fully established, close the Primary vents.
-
Page 9: Cleaning & Maintenance
The output ratings of this stove are based on around 1.4kg (Clarity 5) / 2.5kg (Clarity 8) / 3.8kg (Clarity 12) / 1.45kg (Clarity Vision) / 3kg (Double Sided) of seasoned logs which would require refuelling every hour. - Page 10 5) Vacuum or brush out the inner stove box thoroughly. 6) Visually check that the glass is still making a good seal against its rope on the inside of the door frame and that it’s retaining clips remain firmly in place to the touch. 7) Check that the door is making a good seal with the body of the stove all around (over time the rope will flatten out and loose some flexibility - when this happens and when it is no longer sealing fully all the way round, it needs to be replaced).
- Page 11 Baffle Plate Position (Clarity 5, 8 and 12) Baffle Plate Position (Clarity Vision Only) Ensure the Baffle Plate sits correctly on top of the Tertiary air bar and the lugs located above the inside of the door opening. Baffle Plate Position (Clarity Double Sided Only)
- Page 12 GUARANTEE The main body of your stove is guaranteed for 5 years when all guarantee terms are followed including registering your guarantee via the website within 30 days of purchase. Please register here: http://www.defrastoves.com/guarantee-registration.htm Failure to register within 30 days will limit your guarantee to 12 months from date of purchase.
- Page 13 2. Fuel burns too quickly The rated output on your stove is based on burning dry seasoned hardwood and re-fuelling every hour. By turning down the vent controls the fuel will burn slower and last longer. Common causes: a. Excessively strong chimney draught – If by turning down the vents the fire still burns too quickly, this is normally due to excessively strong draught on the chimney.
- Page 14 4. Glass gets dirty quickly Common causes: a. Top vents not open – Your stove has a top vent this controls the Airwash system – the top vent needs to be constantly open adequately to ensure enough air is coming into the stove. No Airwash will work fully when the stove is burning very slowly (slumbering).
- Page 15 (and the general troubleshooting advice we give for all stoves). The more accurate and detailed the information the quicker we will be able to help you to establish improvements you can make to your system. ©Copyright Ekol Stoves 2023...
