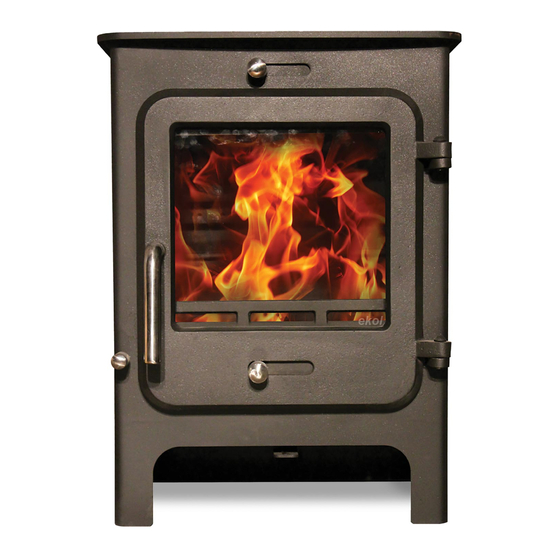

Ekol Clarity 5 – INSTALLATION AND OPERATING INSTRUCTIONS.
INTRODUCTION
SAFETY
Safety is the most important consideration when using and installing your stove. If not installed and used correctly,
a house fire could result. Installation must comply with relevant national and local Building Regulations and fire
safety standards.
IN THE EVENT OF CHIMNEY FIRE, EVACUATE THE PROPERTY AND CALL THE EMERGENCY
SERVICES.
Your stove will be heavy and care needs to be taken when lifting - 2 people will normally be required to lift.
UNPACKING
Your stove will have several of its components stored inside the stove itself for transportation.
Do NOT drag the stove on its legs – it must be carefully lifted into place.
The flue spigot can also be bolted to the flue outlet – the stove has two options for flue outlet – one on the top and
one at the rear. - Most people use the top outlet but depending on where you intend to position the stove in relation
to your chimney, you may wish to use the rear outlet – in this case, remove the blanking plate at the rear and secure
into the top outlet instead.
Inside the stove you will find a glove which must be used when opening the door or when adjusting air vents when
the fire is hot.
INSTALLATION
Installation of your stove must comply with relevant local and national Building Regulations and fire safety
standards.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ekol Clarity 5
Summary of Contents for Ekol Clarity 5
- Page 1 Ekol Clarity 5 – INSTALLATION AND OPERATING INSTRUCTIONS. INTRODUCTION SAFETY Safety is the most important consideration when using and installing your stove. If not installed and used correctly, a house fire could result. Installation must comply with relevant national and local Building Regulations and fire safety standards.
- Page 2 TECHNICAL Model; “Ekol Clarity 5” Nominal heat output - 5 kW Net Weight of Stove – 67kg (low height) 72kg (tall version). Max Height - 533 mm (low height) 630mm (tall version). Max Width - 395 mm Max Depth - 345 mm Flue Diameter - 125mm (5”)
- Page 3 (other than "authorised" fuels) have been exempted by an Order made and signed by the Secretary of State or Minister in the devolved administrations. “Ekol Clarity 5” has been recommended as suitable for use in smoke control areas when burning seasoned wood.
- Page 4 NOTE – all parts of the stove will become hot during use and care needs to be taken to avoid injury through burning. LIGHTING THE FIRE Prior to lighting the fire for the first time, ensure that- Installation and building work is complete. ...
- Page 5 UK Clean Air Act 1993 - Smoke Control Areas The Ekol Clarity 5 wood-burning stoves are suitable for use in smoke control areas when used in accordance with these instructions.
- Page 6 You chimney will also require periodic sweeping. If the glass becomes stained from the inside, the air-wash vent may need opening more during use. The high temperature paint which your stove is finished in should last many years with normal use, but when it does eventually require re-finishing, black heat resistant paint in spray cans can be purchased from most hardware stores.
