SIMATIC Ident
RFID systems

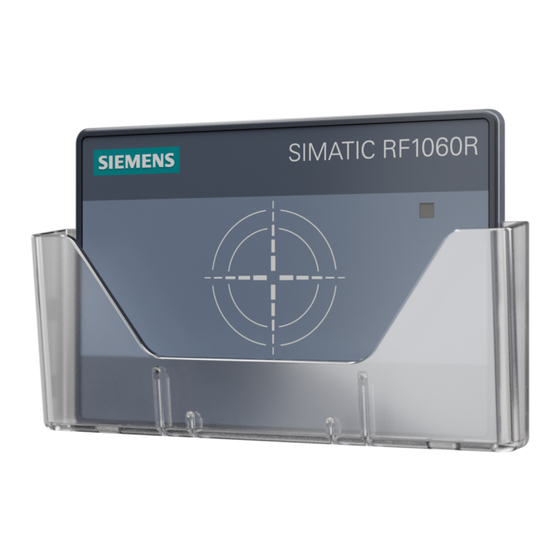

SIMATIC RF1000, RF1100
Configuration Manual
08/2023
C79000-G8976-C647-03
Introduction
General safety information
Description
Downloading and starting
software
License and configuration
cards
Creating and transferring a
configuration
Transferring a license
Updating the firmware
Appendix A
Service & Support
1
2
3
4
5
6
7
8
A
B

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC RF1000

Summary of Contents for Siemens SIMATIC RF1000

  • Page 1 Introduction General safety information Description SIMATIC Ident Downloading and starting software RFID systems SIMATIC RF1000, RF1100 License and configuration cards Creating and transferring a configuration Configuration Manual Transferring a license Updating the firmware Appendix A Service & Support 08/2023 C79000-G8976-C647-03...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Table Of Contents

    Creating a configuration card ..................... 30 Transferring a finalized configuration.................. 31 Transferring a license .......................... 35 Updating the firmware ........................37 Appendix A ............................39 Preset configuration cards ....................39 Service & Support ..........................41 SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 4 Table of contents SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 5: Introduction

    Introduction Purpose of this document This documentation describes how you create a configuration for the SIMATIC RF1000 and RF1100 readers, adapt it and transfer it to the readers. This manual is aimed at users, commissioning engineers and configuration engineers who work with the SIMATIC RF1000/ RF1100 readers in the areas of configuration, engineering and commissioning and who were trained on the software components specified in the manual.
  • Page 6 The software components described in this manual are contained in the "RF1000_ConfigTool_Package.exe" file. In addition, you may need the demo application "RF1000R.exe" ("AccessControlDemo.exe"). You can find the two files on the pages of the Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/ps/24223/ dl).

  • Page 7: General Safety Information

    To do this, reset the device to the factory settings and remove the software from the computer. You can find detailed information on resetting to factory settings in the "SIMATIC RF1000" and "SIMATIC RF1100" operating instructions.

  • Page 8: Security Information

    Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure...

  • Page 9: Description

    RF1000/RF1100 readers and create a configuration, adapt it and transfer it to the readers. Device-specific contents The SIMATIC RF1000 and RF1100 readers are modules that differ with respect to their structure and some functions. This means that their handling is different, e.g. when creating configurations or transferring configurations and licenses to the reader.
  • Page 10 Description 3.2 Device-specific contents SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 11: Downloading And Starting Software

    The procedure for creating, adapting and transferring a configuration using the configuration software is described below. All other functions of the configuration software that are not described in more detail are not supported by the SIMATIC RF1000/RF1100 readers or should only be used by trained personnel.
  • Page 12 Downloading and starting software SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 13: License And Configuration Cards

    An existing configuration can only be replaced by a configuration with the same Config Security Code. This prevents accidental overwriting. Note that working with the "vhl_select" SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 14 When using encrypted LEGIC systems/cards, you need an identification card to be able to write LEGIC cards with the RF1000 readers. For this purpose, contact the project owner or the original project supplier. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 15: Creating And Transferring A Configuration

    Config editor. These transponders can be operated directly without configuration. This also applies to some other transponder/card types. If necessary, check whether the transponders/cards used are detected by the readers in delivery state. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 16 You can create new settings using the Config editor or open them via an existing configuration. RF1000 & RF1100 *-DRAFT.balcfg ConfigEditor RFID HOST Figure 6-1 Creating a configuration 2. Test and finalize your configuration. RF1000 ConfigEditor RF1100 ConfigEditor *-DRAFT.balcfg *.bec2 Figure 6-2 Testing a configuration SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 17 3. Transfer your finalized configuration to the reader. You can transfer this using the Uploader or a configuration card for RF1000 and using the WBM for RF1100. RF1000 *-01.bec2 Uploader RF1100 *-01.bec2 Figure 6-4 Transferring a configuration via computer and Uploader SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 18 Config editor. Using the configuration card and the demo application ("RF1000R.exe"/"AccessControlDemo.exe"), you can then transfer the configuration to permanently installed RF1000 readers. • RF1100: Transfer the finalized configuration file to the RF1100 reader using the WBM. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 19: The Config Editor

    You can use the buttons in this area to test your valid configuration and save it as "*.bec2" file. • 3. Prepare for deployment You can use the button in this area to finalize your valid configuration (save as "*.balcfg" file) and export it. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 20: Creating A New Configuration

    1. Open the Config editor by double-clicking the "config_editor.exe" file. 2. In the dialog box, click the "New from Scratch" button. Alternatively, you can create a new configuration via the "File > New from Scratch" menu. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 21 This option can be used for the RF1000/RF1100 readers (as of firmware V2.00). To finalize the configuration, however, an RF1000 reader needs to be connected to the computer. The configuration is encrypted in the reader. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 22 (LEDs and beepers) in one project. If this is the case and the factory host settings do not meet your needs, you need to create individual host settings for the different readers or their tasks. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 23 You can find detailed information on programming the serial interface in the "SIMATIC RF1000" operating instructions. Specific information on Advanced Settings In the "Configuration Components" area, you can add additional components to the configuration with the "...
  • Page 24 CSC is not checked in this case. Note that the CSC cannot be read out of the reader, a "*.bec2" file or the configuration card. It can only be read out of the "*.balcfg" file in plain text. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 25: Opening And Editing An Existing Configuration

    "-DRAFT" as part of the file name. This suffix will help you to maintain an overview of your versions later. When the project is finalized later, the suffix is automatically deleted or replaced. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 26 2. In the dialog window, click the "Open Configuration" button and select the configuration file ("*.balcfg") into which you want to import a component. Alternatively, you can open an existing configuration via the "File > Open..." menu. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 27: Testing And Finalizing A Configuration

    3. Click the "Test Full Configuration with Host System" button in the "Your Workflow > Test configuration" area and then click "Transfer Config to Reader". 4. Select the desired reader in the list and click "Select". If multiple interfaces are displayed in the list, select the "HID" entry. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 28 8. Click "Download". Result: The configuration file is transferred to the reader. You receive a corresponding message as soon as the transfer is complete. You can then test the configured functions with the reader. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 29 • When "Lowest firmware Version = 1100 v2.00" is selected: An (RF1000) reader that is connected to the computer. Note: Using this reader and the Customer Key Signature stored on it, the file is encrypted. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 30: Creating A Configuration Card

    Requirement • An RF1000 reader that is connected to the computer. • A configuration card You can obtain configuration cards from the Siemens Industry Mall (https:// mall.industry.siemens.com/) (article number: 6GT2300-0CC00-0AX0). If you already have a configuration card that you no longer need, you can overwrite it with a new configuration.

  • Page 31: Transferring A Finalized Configuration

    The following options are available to you for transferring a finalized configuration to a reader: • Using the Uploader For RF1000 • Using the configuration card and the demo application For RF1000 • Using the WBM For RF1100 These alternative methods are described below. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 32 LED on the reader turns green after the short pause and a single audio signal is generated at the same time. If the transfer failed, the LED on the reader SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 33 LED goes out. The configuration card is de‐ Use a different configuration card or con‐ fective. tact Siemens Support. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 34 Check the Customer Key Signature and of the configuration file does make sure that it matches the signature not match the signature stor‐ stored in the reader. ed in the reader. If necessary, contact Siemens Support. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 35: Transferring A License

    If the transfer failed, the LED on the reader turns red after the short pause and several short audio signals are generated at the same time. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 36 LED goes out. The license card is defective. Use a different license card or contact Siemens Support. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 37: Updating The Firmware

    Follow these steps to perform a firmware update of the RF1100 reader using the WBM: 1. Start your Web browser. 2. Enter the IP address of the reader in the address field of your browser. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
  • Page 38 After the update has completed, the reader is restarted. The reader is ready for operation when the "R/S" LED is lit green. Note that the startup process takes approx. 1 minute after a firmware update. The updated firmware is active following the restart. SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 39: Preset Configuration Cards

    UIDs of the read transponders can be read in as directly visible in every application (e.g. MS Word or MS Excel). These sample configurations are also available to you for download with the "RF1000_ConfigTool_Package.exe" file on the Siemens Industry Online Support (https:// support.industry.siemens.com/cs/ww/en/ps/24223/dl) pages. If the configuration cards written with the sample configurations are overwritten accidentally, you can restore them using this file.
  • Page 40 Appendix A A.1 Preset configuration cards SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...

  • Page 41: Service & Support

    Industry Online Support In addition to the product documentation, you are supported by the comprehensive online information platform of Siemens Industry Online Support at the following Internet address: Link: (https://support.industry.siemens.com/cs/de/en/) Apart from news, you will also find the following there: •...
  • Page 42 Service & Support SIMATIC RF1000, RF1100 Configuration Manual, 08/2023, C79000-G8976-C647-03...
